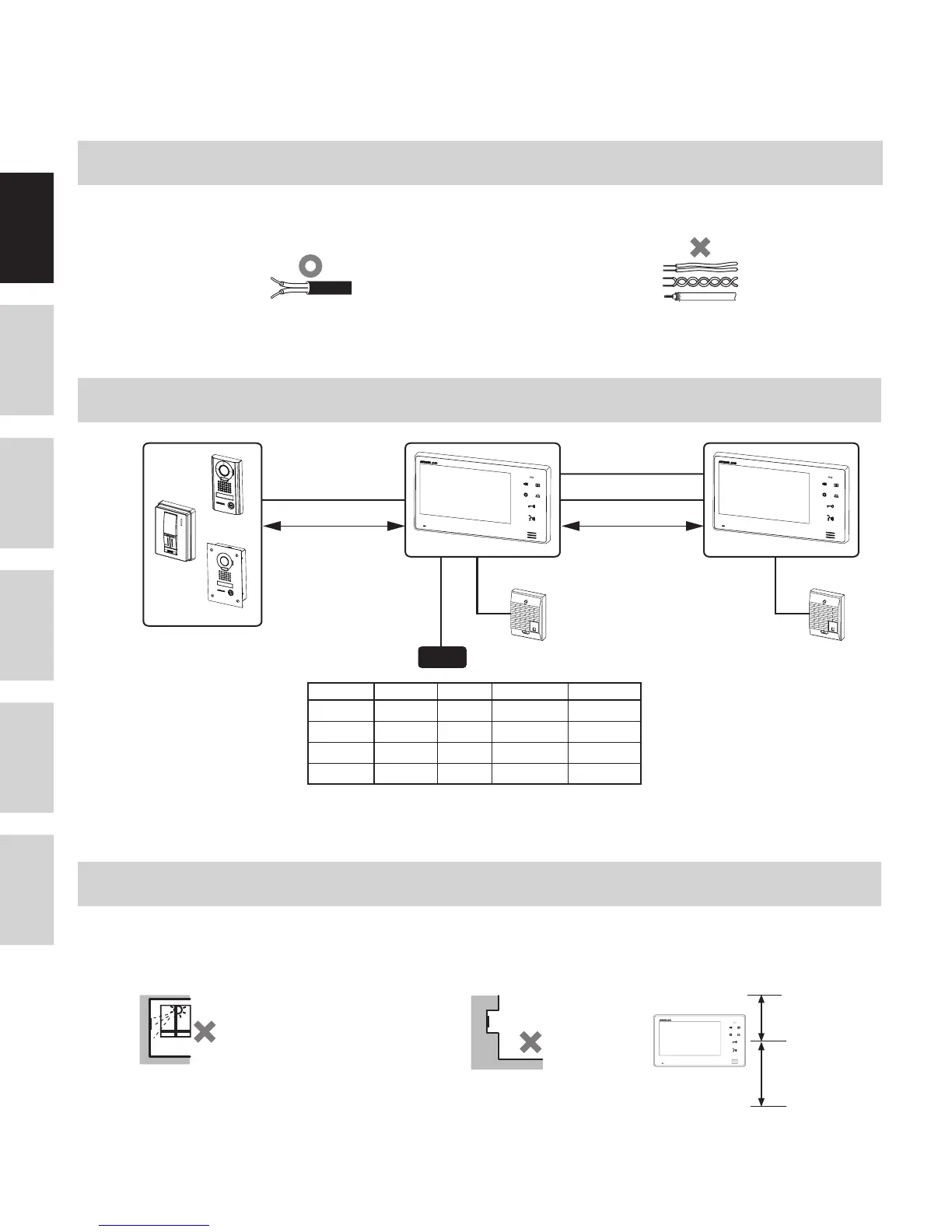

INSTALLATION
Wiring method, wiring distance
JO-1FD
JO-DA
JO-DV
JO-DVF
A D
BC
IER-2
PS18
JO-1MD
C
IER-2
: PS-1820, PS-1820S, PS1820UL, PS-1820D
Ø 0.65 mm 22 AWG Ø 0.8-1.2 mm 20-16 AWG
A 50 m 165' 100 m 330'
B 5 m 16' 10 m 33'
C 50 m 165' 150 m 495'
D 50 m 165' 100 m 330'
Mounting locations
In direct sunlight
Avoid installing the expansion monitor
station in a concave space of a
wall to prevent disconnection
of communication
Allow at least 15 cm (6") above
and 25 cm (9") below center of
the mounting
bracket for
installation
of the station
15 cm (6 " )
or more
ab c
25 cm (9 " )
or more
Do not install expansion monitor station in any of the following locations where lighting or the ambient environment could impact
the display on the video monitor.
Cable
Use PE (polyethylene)-insulated PVC jacket cable.
Parallel or jacketed 2-conductor, mid-capacitance, non-shielded
cable is recommended.
Never use individual conductors, twisted pair cable, or
coaxial cable.

Aiphone JO-1FD Specifications

Power

power supply	Electrical box
current consumption (standby)	16 mA
current consumption (max)	170 mA

Display

monitor size	7 inch
monitor type	color LCD screen

Operating Environment

ambient temperature range	-10°C to 60°C
material	Flame-resistant ABS resin
color	White

Weight and Dimensions

dimension	173 x 153 x 35 mm
dimension (inches)	6.81 x 6.02 x 1.38 inches
weight	470 g (1.04 lbs)
