7

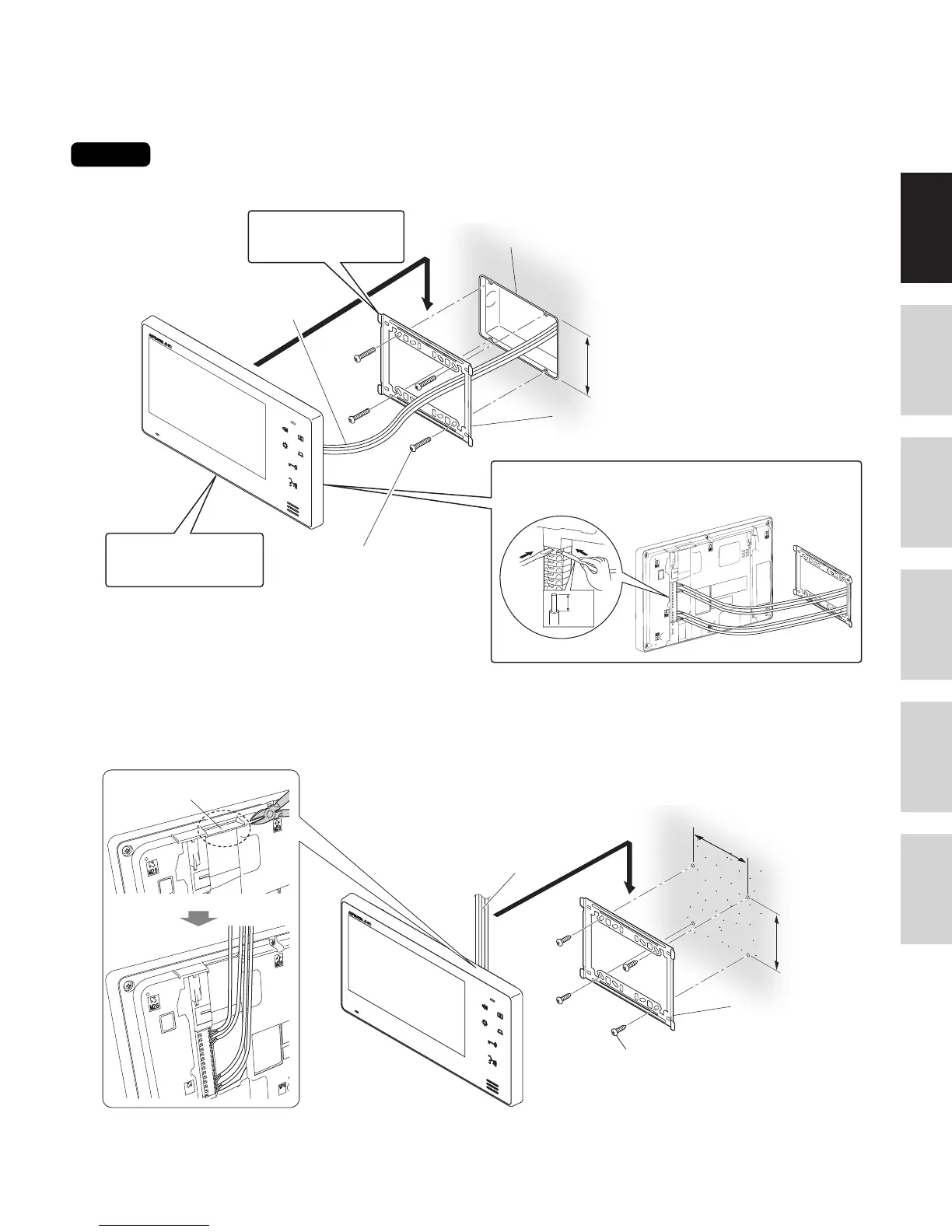

MOUNTING
JO-1FD
83.5mm (3-5/16")
8mm
(3/8")
Wires
3-gang box
Mounting bracket
(attached to the unit with shipment)
Mounting screw × 4
(Screw shaft: Ø4.1)
(Slotted Head: Ø8.2 or less
Height 3.0mm or less)
(not included)
Mount the unit on the
mounting bracket.
3
Fasten the mounting
bracket to the wall
1
2
1. Press release button to insert or remove wire.
2. Insert wire into the terminal.
<Back wiring>
When the wiring is not coming through the wall, the wires can be routed to the top or bottom of the unit. Remove a cable inlet plate on the
upper part of the unit to allow passage of the wiring into the unit.
92mm (3-5/8")
83.5mm
(3-5/16")
Mounting bracket
(attached to the unit with
shipment)
Wood mounting screw × 4
(Screw shaft: Ø4.1)
(Slotted Head: Ø8.2 or less
Height 3.0mm or less)
(not included)
Wires
Remove cable inlet plate
<Surface wiring>

Aiphone JO-1FD Specifications

Power

power supply	Electrical box
current consumption (standby)	16 mA
current consumption (max)	170 mA

Display

monitor size	7 inch
monitor type	color LCD screen

Operating Environment

ambient temperature range	-10°C to 60°C
material	Flame-resistant ABS resin
color	White

Weight and Dimensions

dimension	173 x 153 x 35 mm
dimension (inches)	6.81 x 6.02 x 1.38 inches
weight	470 g (1.04 lbs)
