Aiphone JO-1FD User Manual

EnglishFrançaisEspañolNederlandsItalianoDeutsch
8
1
E
A1 A2
2
NP
2
NP
2
NP
PS-1820D
IER-2
JO-DV JO-DVF
IN 230V~ 50/60Hz
N
L
LN
-
++
-
+
-
230V AC
50/60Hz
18V DC 2A
JO-DA
1
E
2
NP
IER-2
2
P
- +
2
P
2
NP
PS18
PS18
: Power supply
JO-1FD JO-1MD
PS-1820
PS-1820S
PS-1820UL
100V - 240V
50/60Hz
18V DC 2A
Door release
An EL-12S (AC 12 V, 0.125 A, DC 12 V, 0.2 A) or
equivalent part and a separate AC transformer (or
power supply) are required.
Door release contact: AC/DC 24 V, 0.5 A
(Minimum contact: 100 mV DC, 0.1 mA)
(N/O dry closure contact L).
*Run separate cables for audio/video and door release.
Electric door
strike
AC transformer
Master monitor stationExpansion monitor station
(To optional units)
(AC/DC 24V, 0.5A N/O dry closure contact)
(Minimum contact: 100mV DC, 0.1mA)
(To optional units)
(AC/DC 24V, 0.5A N/O dry closure contact)
(Minimum contact: 100mV DC, 0.1mA)
Video door station
Call extension speaker IER-2
EL-12S
Presence of sound from IER-2
NP: Non-polarized
P: Polarized

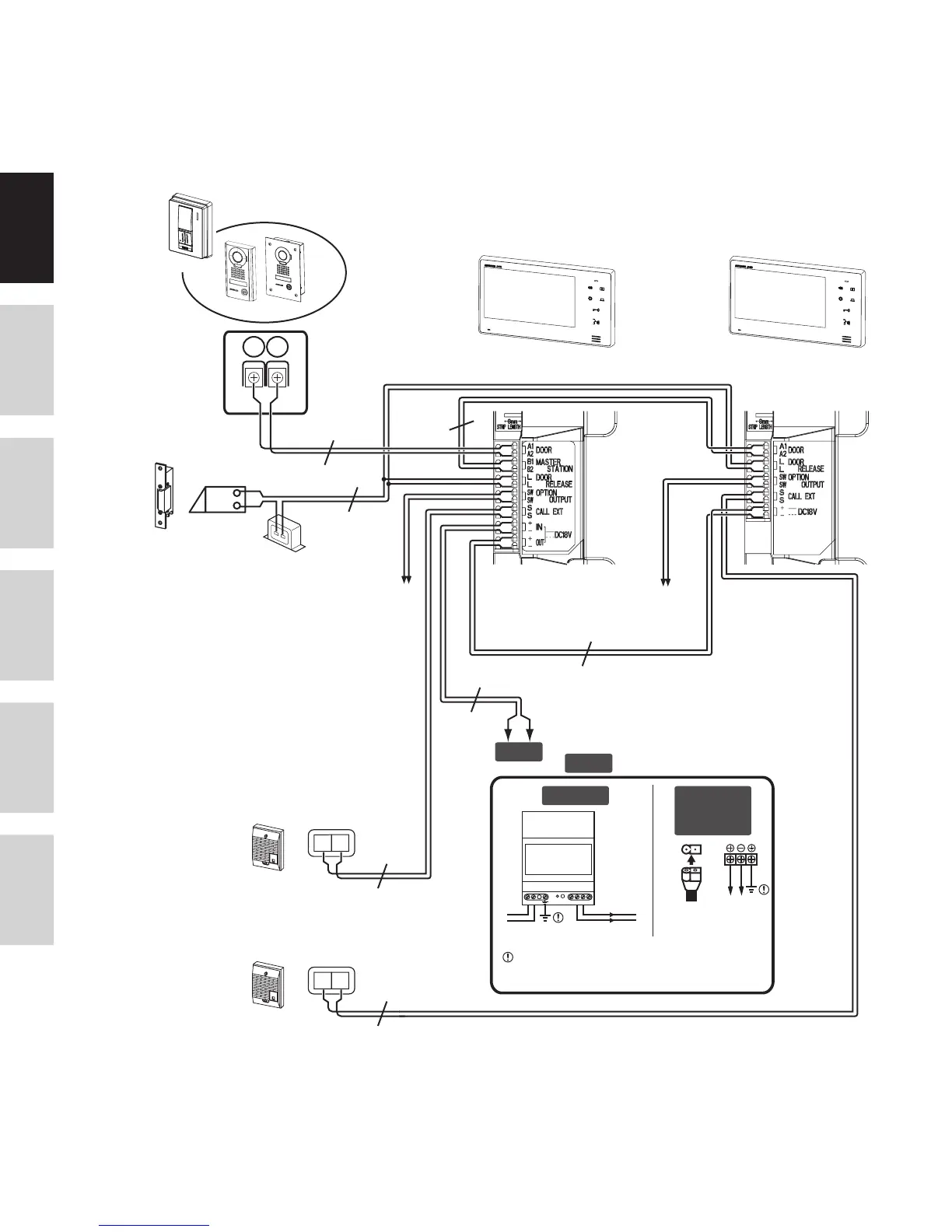

WIRING
Insert wires securely into each terminal as shown.
Call tone from door station.
Without grounding, the units may not operate
normally.

Aiphone JO-1FD Specifications

Power

power supply	Electrical box
current consumption (standby)	16 mA
current consumption (max)	170 mA

Display

monitor size	7 inch
monitor type	color LCD screen

Operating Environment

ambient temperature range	-10°C to 60°C
material	Flame-resistant ABS resin
color	White

Weight and Dimensions

dimension	173 x 153 x 35 mm
dimension (inches)	6.81 x 6.02 x 1.38 inches
weight	470 g (1.04 lbs)
