OPERATIONS

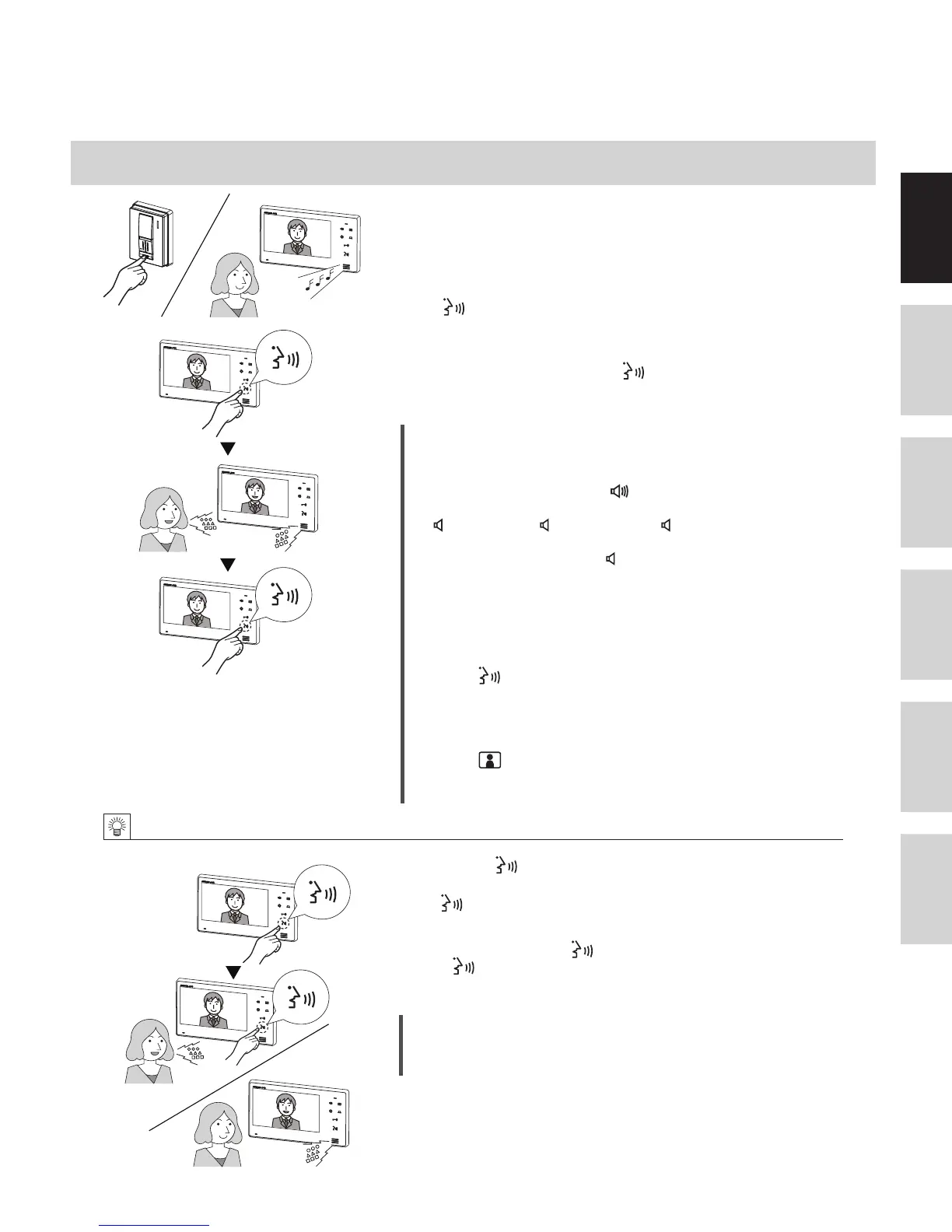

Answering a door call
1
Press and hold for 2 seconds or more.
After approx. 2 seconds beep sounds, PTT mode is engaged.
• If
is pressed briefly, PTT mode is not engaged.
2
When communicating, keep pressed. To hear the caller’s voice,
release
.
Status LED lights when you talk, and flashes slowly as you listen to caller
(or hear outside sounds).
NOTES:
• It is not possible to switch back to hands-free mode (from PTT mode
during communication).
For loud outdoor areas, use Press-to-Talk mode (PTT)
1
Push Call button.
2
The call tone sounds, an image appears on screen.
• The screen turns off after approx. 45 seconds if not answered.
3
Push , and after the beep, communicate hands-free (hands-free mode).
4
After finishing communication, push and communication
will end after the beep.
NOTES:
• Communication ends automatically after approx. 1 minute.
• The communication volume can be adjusted during the monitoring or
the communication by pressing
.
There are three communication volume setting to cycle through:
[

] (Minimum), [

] (Medium), and [

] (Maximum). The current
volume level is displayed on the screen and disappears in approx. 5
seconds. The default setting is [

] (Medium).
• Even when the expansion monitor station has responded to a call from
the door station, the master monitor station displays the image for
approx. 45 seconds.
• While either of the expansion monitor station or the master monitor
station is displaying an image, the White light LED of the door station
remains on at night.
• Pushing
of the master monitor station while the expansion monitor
station is communicating with the door station results in three-way
communication.
• The master monitor station and the expansion monitor station cannot call
or communicate each other.
• Pushing of the master monitor station while the expansion monitor
station is communicating with the door station can display the entrance
and enable monitoring of the communication.
After 2 seconds or more

Aiphone JO-1FD Specifications

Power

power supply	Electrical box
current consumption (standby)	16 mA
current consumption (max)	170 mA

Display

monitor size	7 inch
monitor type	color LCD screen

Operating Environment

ambient temperature range	-10°C to 60°C
material	Flame-resistant ABS resin
color	White

Weight and Dimensions

dimension	173 x 153 x 35 mm
dimension (inches)	6.81 x 6.02 x 1.38 inches
weight	470 g (1.04 lbs)
