4
CAUTION: To reduce the risk of
personal injury, use only the
mounting hardware provided with
the approved outlet box to install
the crossbar mounting bracket.

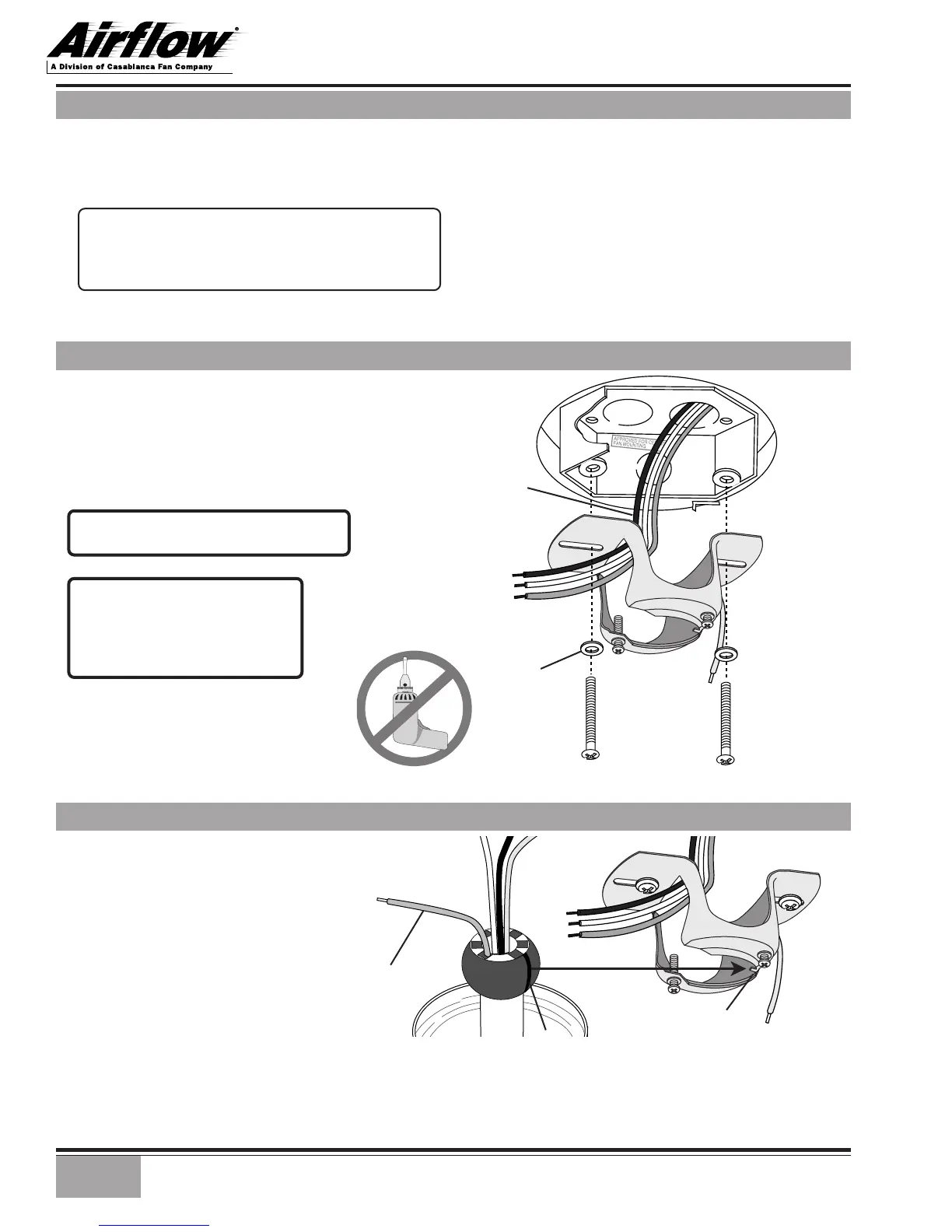

MOUNTING BRACKET INSTALLATION
CEILING
WIRING
MOUNTING
BRACKET
FLAT
WASHER
GREEN
GROUND
WIRE
CEILING FAN
APPROVED
OUTLET BOX
APPROVED
OUTLET
BOX
HARDWARE
NOTE: On sloped ceilings, align the canopy
opening towards the top or room peak.
Proceed with installation as follows:
Step 7. Attach the bracket to the ceiling fixture outlet
box with the mounting hardware included with the outlet
box.
Tighten the screws firmly by hand only, being careful not
to bend the bracket by overtightening.
Step 8. To hang the fan body in the mounting
bracket, hold the fan body firmly and insert
the ball into the bracket opening. Check that
no wires were pinched. Rotate the fan body
until the slot in the nylon ball fits into the
pin opposite the bracket opening.
HANGING THE FAN
CAPPED BLUE D1-OPTION WIRE ON 3-SPEED ONLY
FOR INDEPENDENT W-80 LIGHT CONTROL
PIN
SLOT
BALL
D1
OPTION
WIRE
CEILING FIXTURE OUTLET BOX
Installing a New Ceiling Fixture Outlet Box
If you do not have an existing fixture located where you wish
to place your fan, an approved ceiling fixture outlet box must
be installed and wired.
Using Existing Ceiling Fixture Outlet Box
After turning the power OFF at its source (either circuit breaker
or fuse box), lower the old fixture and disconnect the wiring.
Check the ceiling fixture outlet box to be sure that it is
marked ‘Approved for ceiling fan mounting’. If it is not, a new
box must be installed.
WARNING: To reduce the risk of fire, electrical shock,
or personal injury, mount to outlet box marked
acceptable for ceiling fan support using the
mounting hardware provided with the outlet box.
