LIGHT FIXTURE INSTALLATION
Step 15.
Remove light kit fitter from carton.
Using a Phillips screwdriver, unscrew the
three screws from the fan and set aside.
Connect the 9-pin connector from the
fan to the connector on the light kit fit-
ter as shown, aligning the red squares
and making sure they snap into place.
Connect the light kit fitter to the bot-
tom of the fan as shown, tucking exposed
wires into the fitter, and aligning the
screw holes. Using the three screws from
step b, attach the light kit fitter to the
fan.
Screw two 60-watt lightbulbs (not
included) onto the light kit fitter.
Remove plastic from pull chain.
Fish the pull chain extenders through
the cap and through the center hole of
the bowl. Fit bowl and cap around the
light kit fitter.
Using the finial, attach the bowl and
cap to the light kit fitter.
Attach pull chains on light kit fitter to
pull chain extenders.

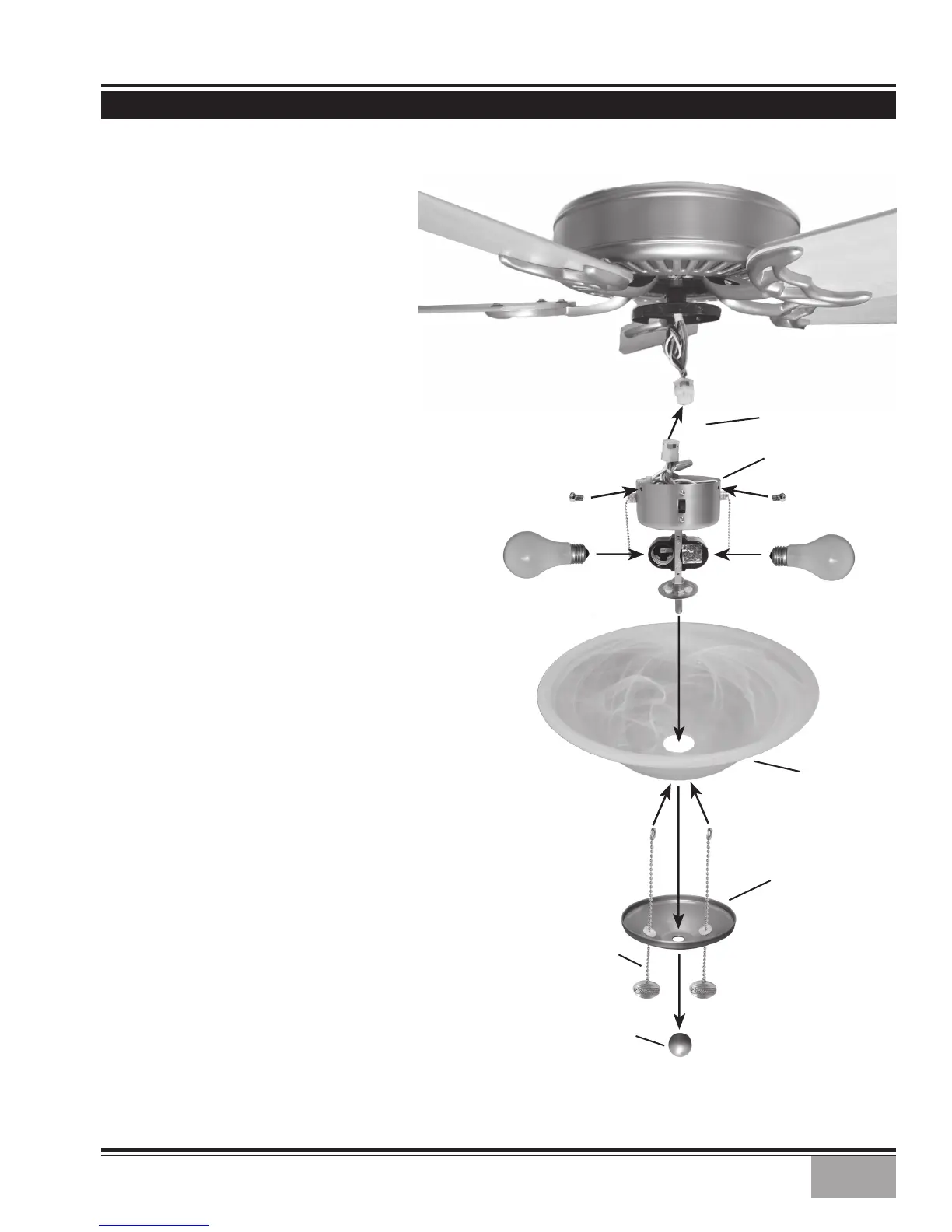

LIGHT KIT FITTER
9-PIN CONNECTOR
SCREWS
LIGHTBULBS
BOWL
CAP
PULL CHAIN EXTENDERS
FINIAL
