16 Workhorse-8 Instruction Manual
AirSep Corporation
6.2 DRAWINGS AND SCHEMATICS
14 [36]
FILTER/SILENCER
FLOWMETER
HEAT EXCHANGER
COMPRESSOR
ATF
POWER CORD
POWER SWITCH
FRONT VIEW
SIDE VIEW
17 [43]
18 [46]
O2 MONITOR
HOUR METER
PRESSURE GAUGE
14 [36]

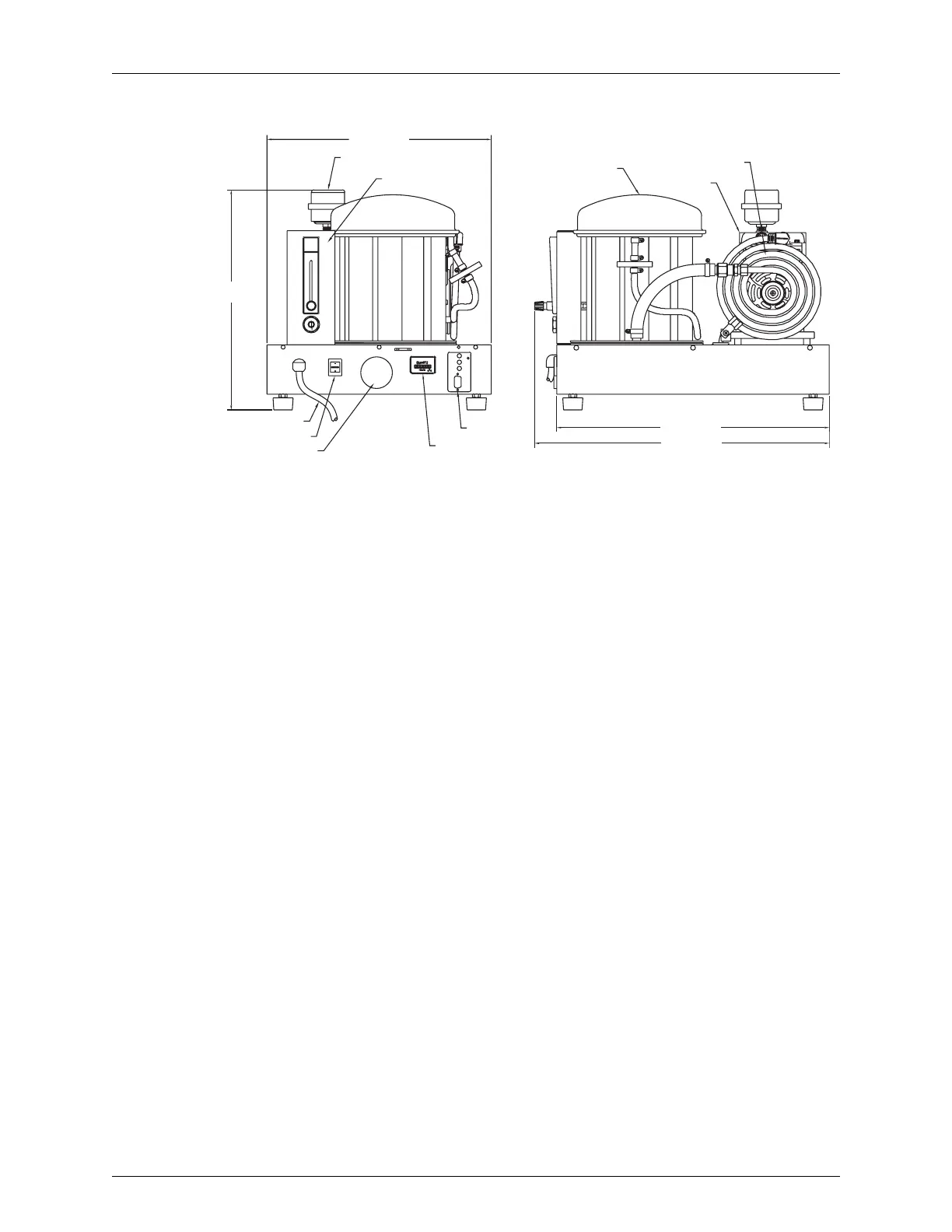

Figure 6.1: Mechanical Outline Drawing - Workhorse-8
