PRESSURE CURVES
Service Manual – YBZ DCI 1-A.1 GB 6-1

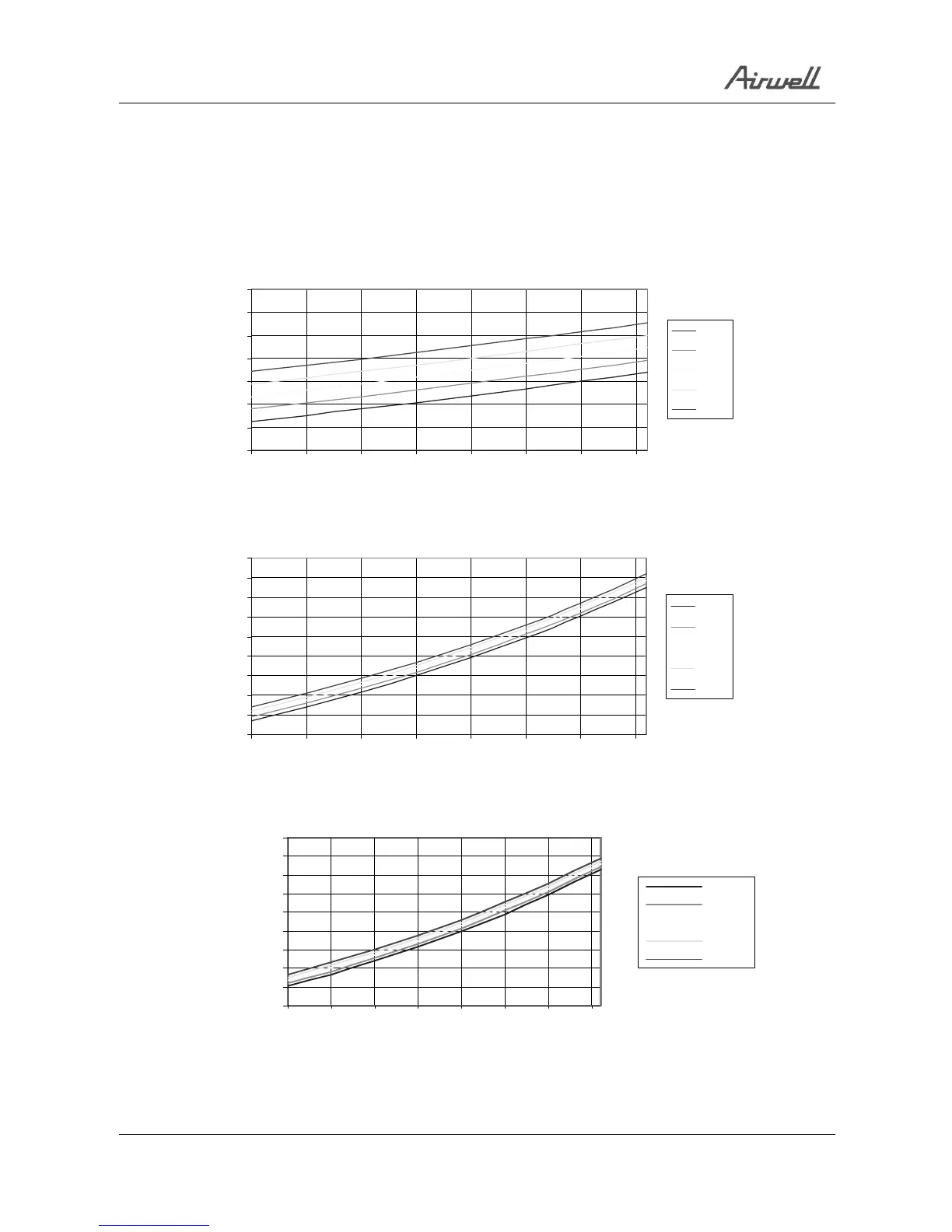

6. PRESSURE CURVES
6.1 Model: YBZ214
6.1.1 Cooling
2.50
3.00
3.50
4.00
4.50
5.00
5.50
6.00
6.50
7.00
10 15 20 25 30 35 40 45
Outdoor DB Temperature
Input Current [
A
]
22/15
24/17
27/19
29/21
32/23
1500
1750
2000
2250
2500
2750
3000
3250
3500
3750
10 15 20 25 30 35 40 45
Outdoor DB Temperature
Discharge Pressure [kPa]
22/15
24/17
27/19
29/21
32/23
Indoor
DB/WB
700
800
900
1000
1100
1200
1300
1400
10 15 20 25 30 35 40 45
Outdoor DB Temperature
Suction Pressure [kPa]
22/15
24/17
27/19
29/21
32/23
Indoor
DB/WB

Airwell AWSI-HZD009-H11 Specifications

General

Type	Split System
Cooling Capacity	9000 BTU/h
Energy Efficiency Ratio (EER)	3.21
Power Supply	220-240V, 50Hz
Refrigerant	R32
Weight (Outdoor Unit)	25 kg
Air Flow (Indoor Unit)	500 m³/h
Noise Level (Indoor Unit)	40 dB(A)
