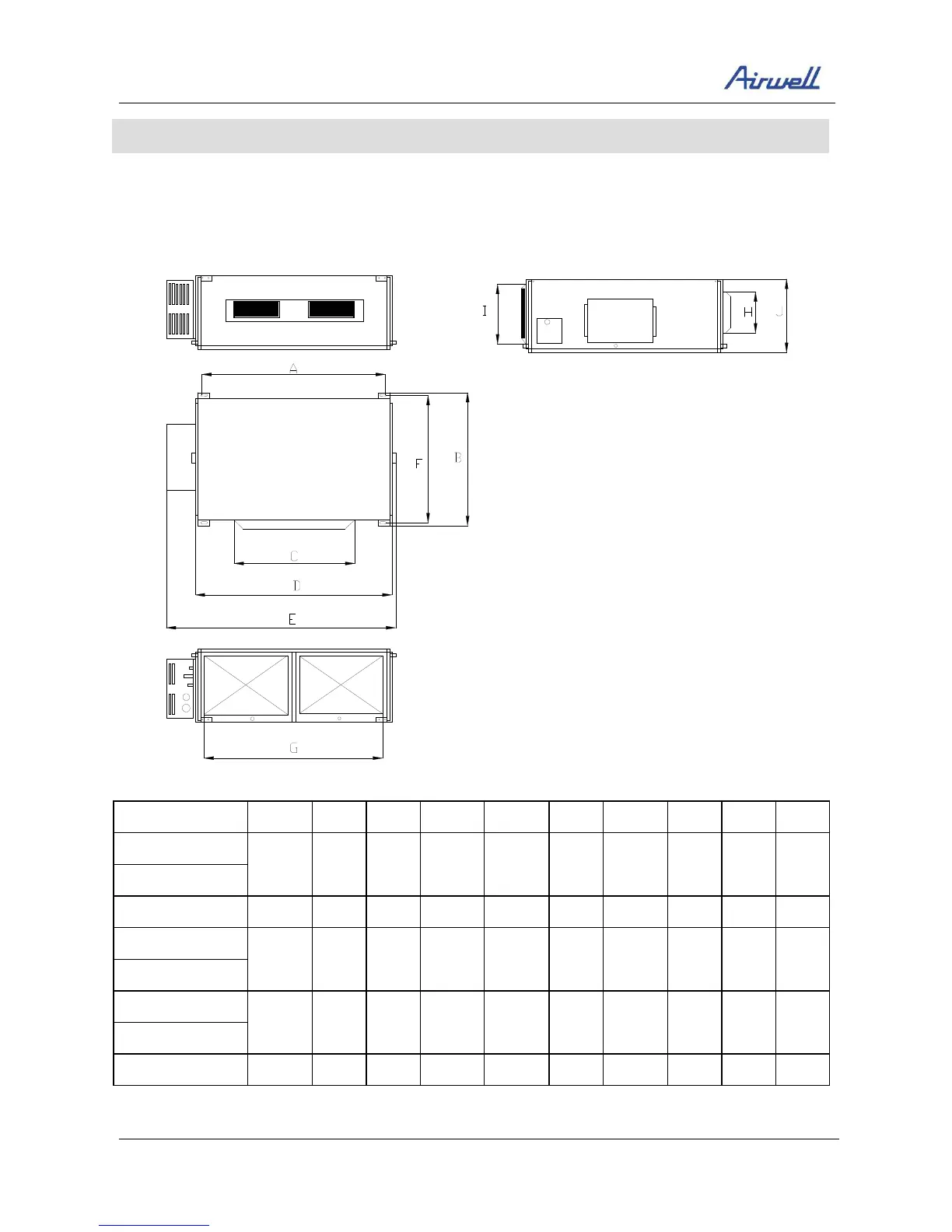

OUTLINE DIMENSION
4. OUTLINE DIMENSION
4.1 Indoor Units: DAF009, DAF012, DAF018, DAF024, DAF036,
DAF042, DAF060
Unit：mm
Model A B C D E F G H I J
DAF009
DAF012
856 571 515 790 913 680 750 100 172 220
DAF018 932 627 738 894 1012 736 738 125 207 266
DAF024
DAF030
1101 395 820 1159 1270 504 1002 160 235 268
DAF036
DAF042
1011 635 820 1115 1251 744 980 160 231 290
DAF060 1015 679 820 1115 1251 788 980 160 261 330
