Airwell DAF009 - 5.6 YIF036 Performance Data

PERFORMANCE DATA & PRESSURE CURVES
SM YIF 2-A.1 GB 5-13

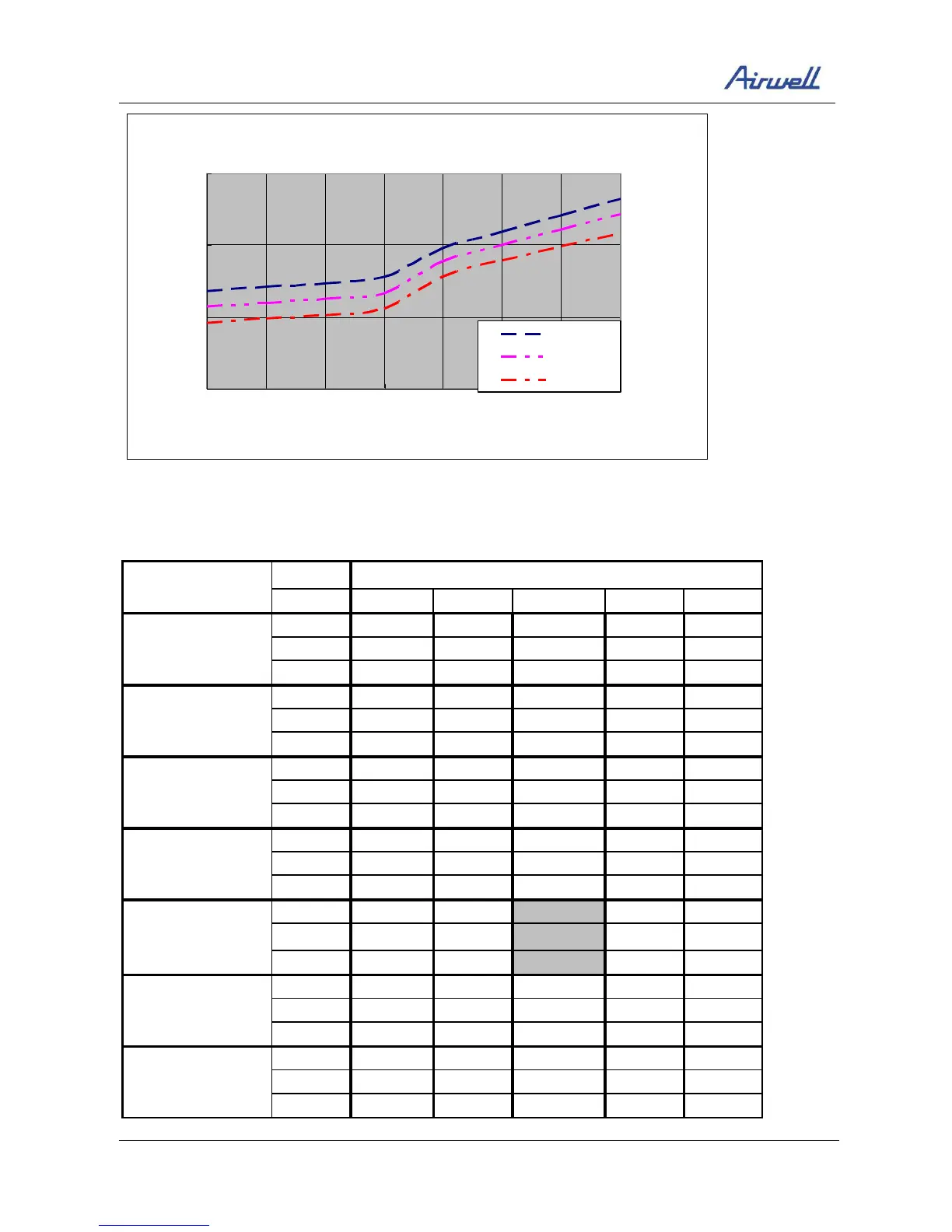

Discharge Pressure VS.Outdoor Temp
10.0
20.0
30.0
40.0
-10-7 -2 2 6 101520
Outdoor Temp.(
o
C WB)
Discharge Pressure(Bar)
25 C DB
20 C DB
15 C DB
5.6 YIF036
5.6.1 Cooling Capacity (kW)
Data
Entering Air WB/DB ID Coil(
o
C)
15/21 17/24 19/27 21/29 23/32
TC
10.20 10.80 11.30 11.80 12.20
15 SC
6.58 6.98 7.36 7.19 7.31
PI
2.84 2.84 2.85 2.86 2.87
TC
10.10 10.70 11.20 11.70 12.10
20 SC
7.20 7.65 8.09 7.85 8.02
PI
3.07 3.08 3.10 3.12 3.13
TC
9.70 10.40 11.00 11.50 11.90
25 SC
6.40 6.86 7.25 7.12 7.30
PI
3.31 3.34 3.37 3.40 3.40
TC
9.10 9.80 10.60 11.00 11.40
30 SC
6.08 6.57 7.09 6.95 7.23
PI
3.58 3.63 3.68 3.70 3.72
TC
8.40 9.10
10.00
10.50 10.90
35 SC
5.73 6.23
6.81
6.73 7.01
PI
3.88 3.94
4.00
4.03 4.05
TC
7.60 8.30 9.20 9.70 10.10
40 SC
5.32 5.86 6.44 6.34 6.65
PI
4.18 4.24 4.32 4.36 4.39
TC
6.60 7.30 8.20 8.70 9.10
46 SC
4.84 5.36 6.04 5.92 6.21
PI
4.58 4.66 4.74 4.80 4.85
Entering Air DB
OD Coil(
o
C)
