English

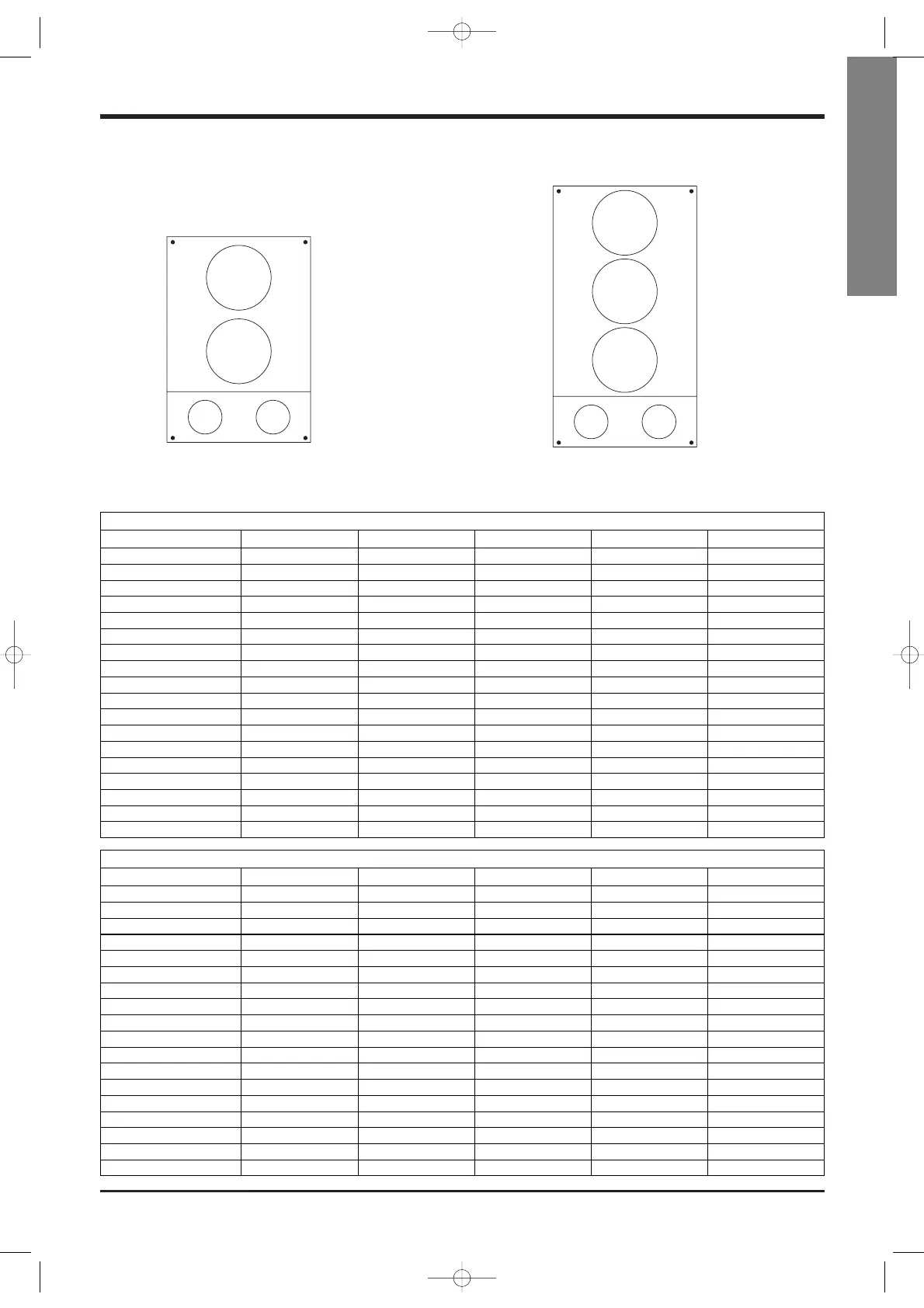

Technical data
A3 A4
A2 A1
Lato Compressori
V2
V1
C1 C2
A3 A4
A2 A1
Lato Compressori
V3
V2
V1
C1 C2
UNIT WITH 2 PUMPS
Support 4 (A4)Support 3 (A3)Support 2 (A2)Support 1 (A1)Weight (kg)
CLS
182 STD/LN/HPF/HT 662 229 213 102 118
202 STD/LN/HPF/HT 692 243 225 103 121
242 STD/LN/HPF/HT 816 289 272 119 136
302 STD/LN/HPF/HT 870 303 284 132 151
352 STD/LN/HPF/HT 950 335 315 140 160
402 STD/LN/HPF/HT 1024 354 334 158 178
502 STD/LN/HPF/HT 1112 385 363 171 193
552 STD/LN/HPF/HT 1247 432 407 192 216
602 STD/LN/HPF/HT 1282 444 418 197 223
182 ELN 704 238 220 114 132
202 ELN 730 249 232 116 133
242 ELN 858 297 280 132 149
302 ELN 880 306 287 134 153
352 ELN 1012 348 328 158 178
402 ELN 1036 358 337 160 181
502 ELN 1132 392 368 174 198
552 ELN 1267 438 412 195 221
602 ELN 1302 450 424 201 227
UNIT WITH 1 PUMPS AND 1 TANK
Support 4 (A4)Support 3 (A3)Support 2 (A2)Support 1 (A1)Weight (kg)
CLS
182 STD/LN/HPF/HT 907 314 292 139 162
202 STD/LN/HPF/HT 937 329 305 140 164
242 STD/LN/HPF/HT 1061 376 353 155 177
302 STD/LN/HPF/HT 1115 388 364 170 193
352 STD/LN/HPF/HT 1350 476 447 199 228
402 STD/LN/HPF/HT 1424 493 465 219 247
502 STD/LN/HPF/HT 1602 555 523 246 278
552 STD/LN/HPF/HT 1737 601 567 267 302
602 STD/LN/HPF/HT 1772 613 578 273 308
182 ELN 949 321 297 154 177
202 ELN 975 333 309 155 178
242 ELN 1103 382 360 169 191
302 ELN 1125 391 367 172 195
352 ELN 1412 486 458 220 248
402 ELN 1436 497 467 221 251
502 ELN 1622 561 528 250 283
552 ELN 1757 608 572 271 307
602 ELN 1792 620 583 276 313
(For the support position, see paragraph 8.5).
Compressor side
Compressor side
