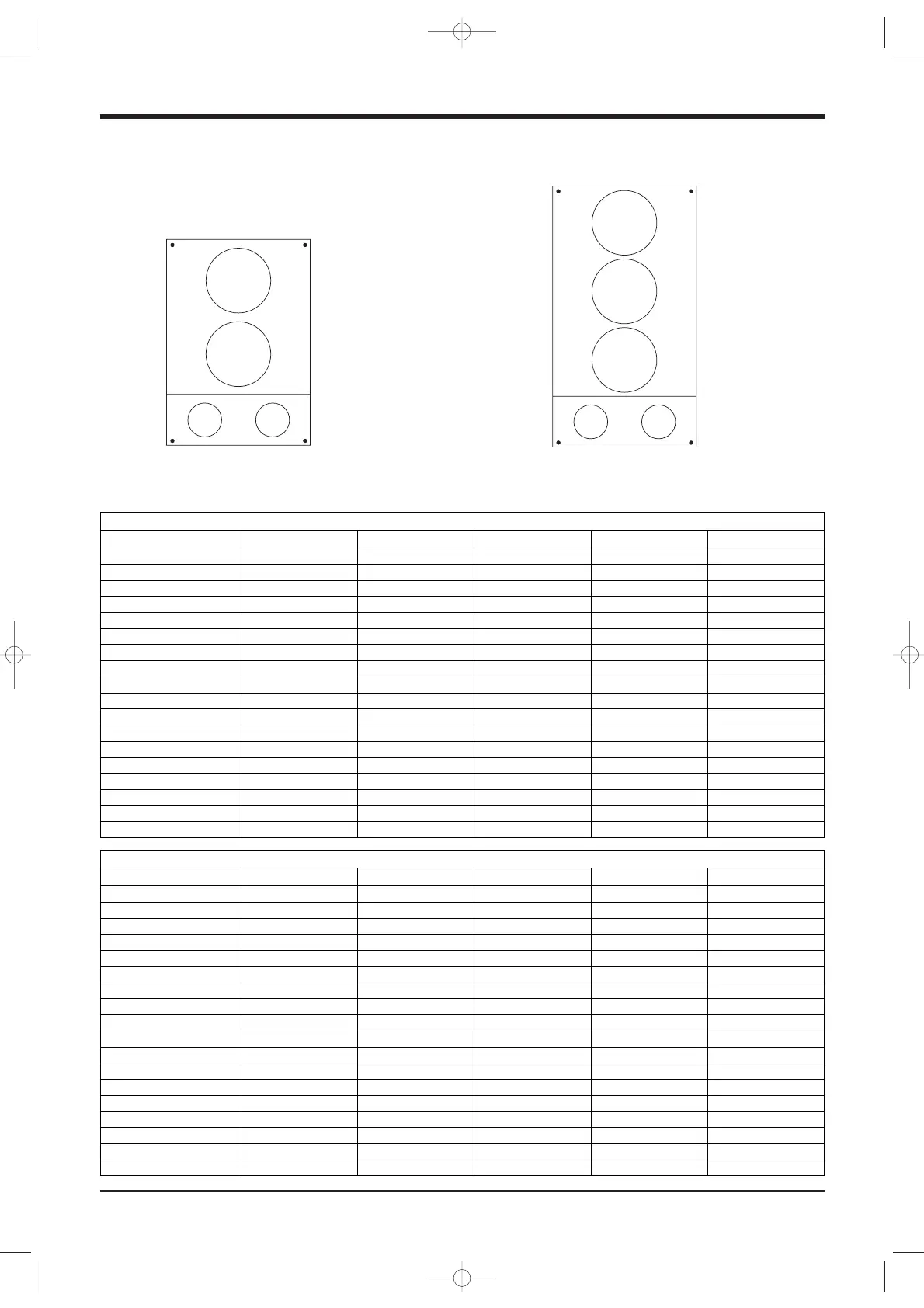

8.4 Position of shock absorbers and weight distribution on supports
A3 A4
A2 A1
Lato Com
p
ressori
V2
V1
C1 C2
A3 A4
A2 A1
Lato Compressori
V3
V2
V1
C1 C2
BASIC UNIT
Support 4 (A4)Support 3 (A3)Support 2 (A2)Support 1 (A1)Weight (kg)
CLS
182 STD/LN/HPF/HT 610 211 196 94 109
202 STD/LN/HPF/HT 640 225 208 95 112
242 STD/LN/HPF/HT 764 271 254 111 128
302 STD/LN/HPF/HT 818 284 267 125 142
352 STD/LN/HPF/HT 898 317 297 132 152
402 STD/LN/HPF/HT 972 336 317 150 169
502 STD/LN/HPF/HT 1060 367 346 163 184
552 STD/LN/HPF/HT 1195 414 390 184 207
602 STD/LN/HPF/HT 1230 426 401 189 214
182 ELN 652 220 204 106 122
202 ELN 678 231 215 108 124
242 ELN 806 279 263 124 140
302 ELN 828 288 270 126 144
352 ELN 960 330 311 150 169
402 ELN 984 340 320 152 172
502 ELN 1080 374 351 166 189
552 ELN 1215 420 395 187 212
602 ELN 1250 432 407 193 218
UNIT WITH 2 PUMPS
Support 4 (A4)Support 3 (A3)Support 2 (A2)Support 1 (A1)Weight (kg)
CLS
182 STD/LN/HPF/HT 642 223 207 98 114
202 STD/LN/HPF/HT 672 236 219 100 117
242 STD/LN/HPF/HT 796 282 265 116 133
302 STD/LN/HPF/HT 850 296 278 129 147
352 STD/LN/HPF/HT 930 328 308 137 157
402 STD/LN/HPF/HT 1004 348 328 154 174
502 STD/LN/HPF/HT 1092 378 356 168 190
552 STD/LN/HPF/HT 1227 425 400 189 213
602 STD/LN/HPF/HT 1262 437 412 194 219
182 ELN 684 231 214 111 128
202 ELN 710 242 225 113 130
242 ELN 838 291 274 128 145
302 ELN 860 299 281 131 149
352 ELN 992 341 322 155 174
402 ELN 1016 352 331 156 177
502 ELN 1112 385 362 171 194
552 ELN 1247 431 406 192 218
602 ELN 1282 444 417 197 224
(For the support position, see paragraph 8.5).
