Airwell Itelco-Clima CLS 182 STD - Overall Dimensions

Page 69
English
Technical data
C
VIEW A
36.5 36.5
1110
AC
B
A
177
177
Cable inlet
35 mm
for transport
only
1037
Lifting point
Lifting point
C
VIEW B
B
(+35 mm for transport only)
1100
2"
VIEW C
with tank
~368
~470 ~404
2” male

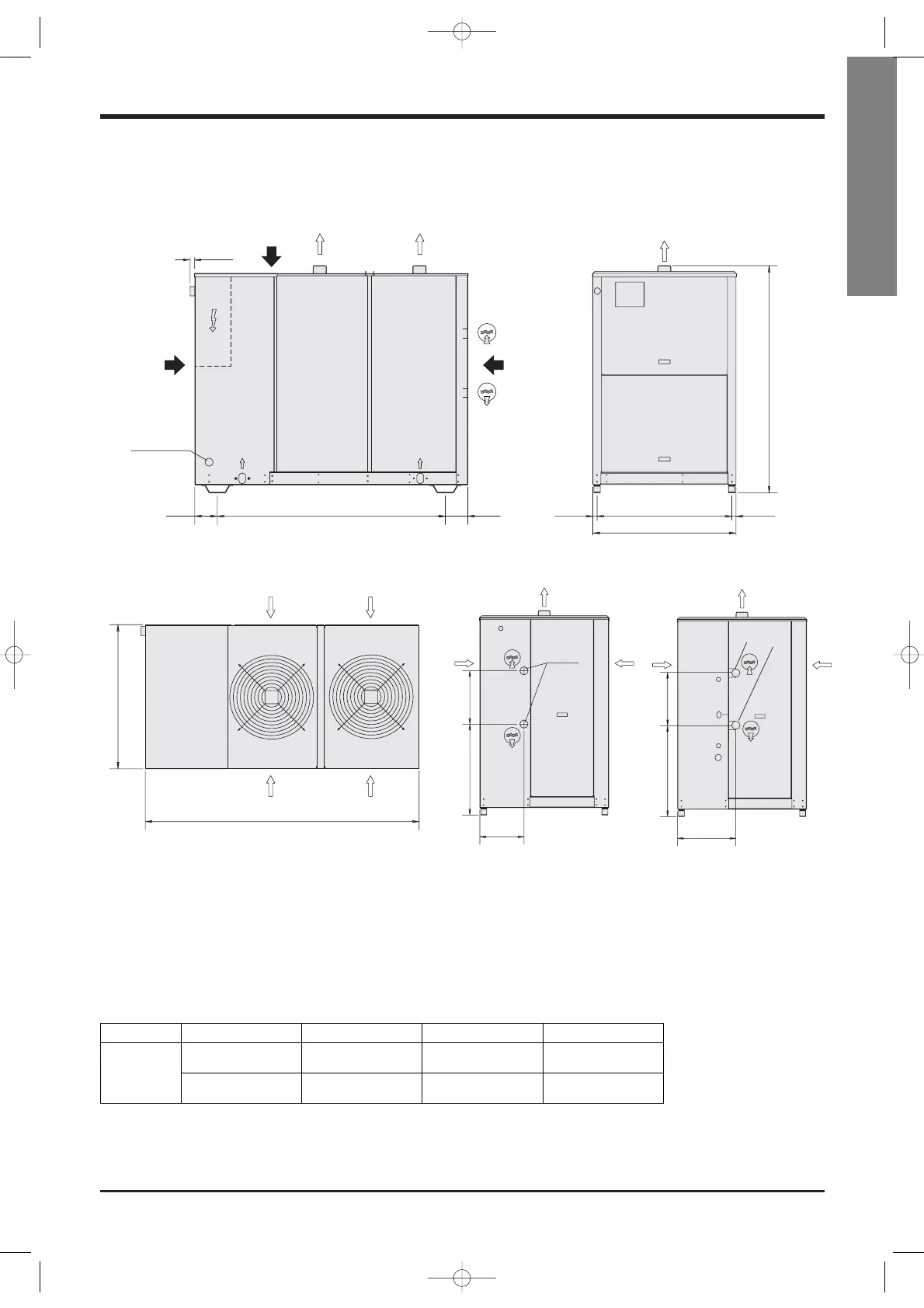

8.5 Overall dimensions
CLS 182-302 STD-LN-ELN-HT-HPF
Models Versions Dimensions A (mm) Dimensions B (mm) Dimensions C (mm)
STD 1756 2110 1750
LN/ELN/HT/HPF 1756 2110 1850
CLS 182-
202-242-
302
Note: Do not extract dimensions if not specifyed in the drawings.
2"
VIEW C
without tank
501
784 470
2” male
