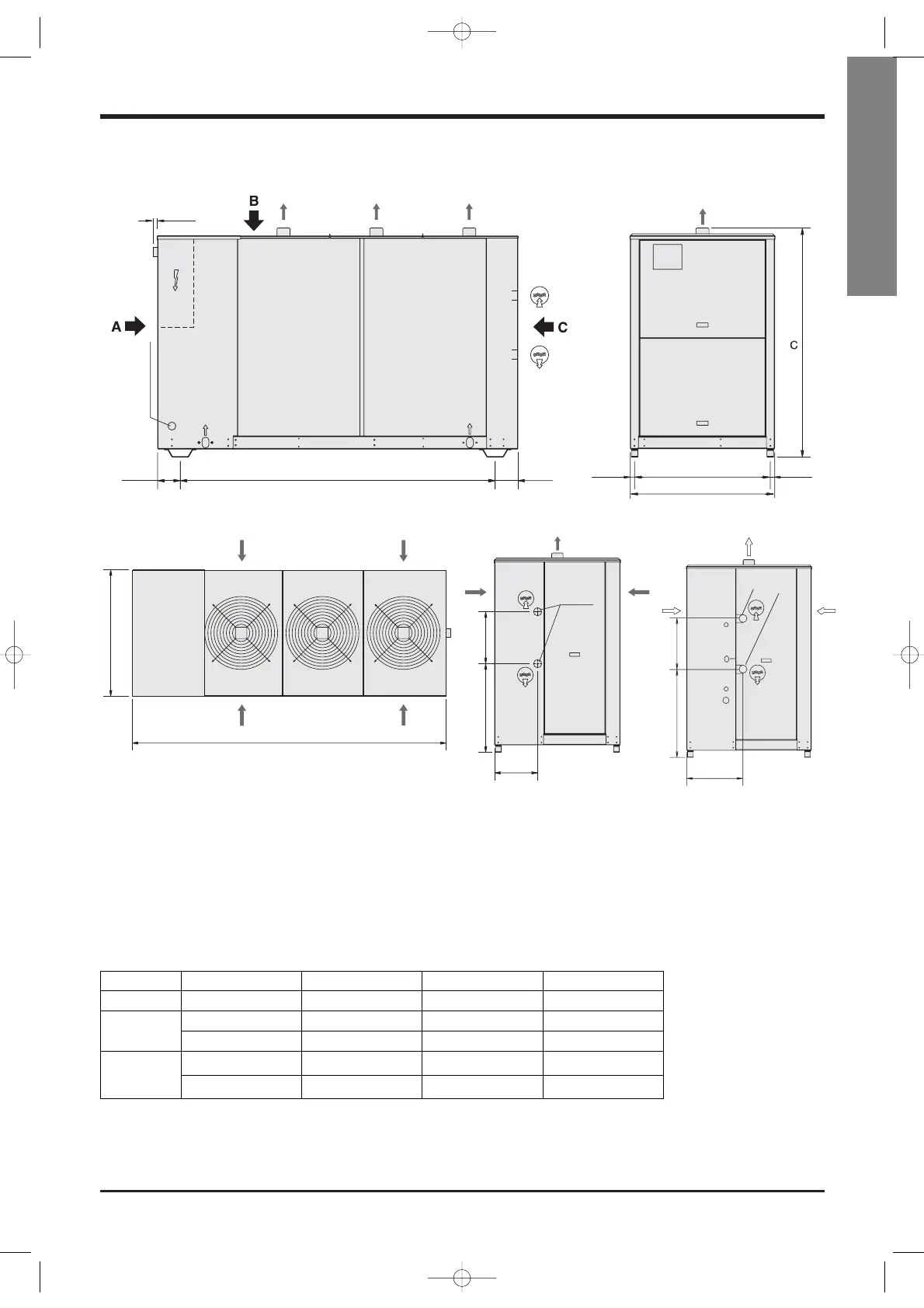

Technical data
177
35 mm
for transport
only
Lifting point
Cable inlet
Lifting point
177
36.5 36.5
1037
1110
A
VIEW A
1100
B
(+35 mm for transport only)
VIEW B
2 " male
404
368
470
VIEW C
with tank
CLH 302 STD-LN-ELN-HPF / CLH 242 ELN / CLH 352-602 STD-LN-ELN-HPF
Models Versions Dimensions A (mm) Dimensions B (mm) Dimensions C (mm)
CLH 242 ELN/HPF 2406 2760 1850
STD 2406 2760 1750
LN/ELN/HPF 2406 2760 1850
STD 2756 3110 1750
LN/ELN/HPF 2756 3110 1850
CLH 302
CLH 352-
402-502-
552-602
Note: Do not extract dimensions if not specifyed in the drawings.
2"
VIEW C
without tank
501
784 470
2” male
