INSTALLATION DETAILS
Version - 1 21 DCH DCI

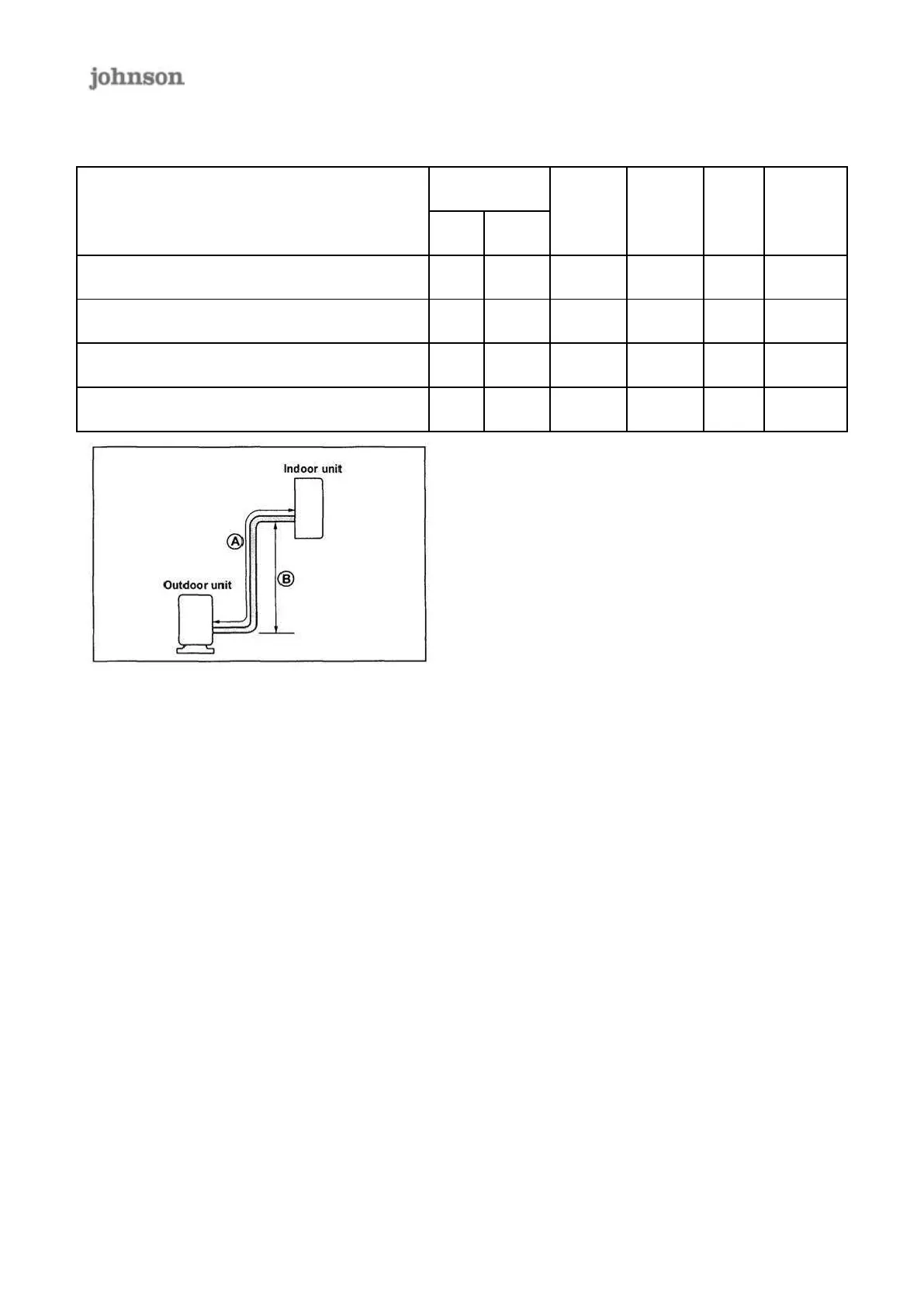

7.3 Pipe length and the elevation
The pipe length and refrigerant amount:
Model
Pipe size
Standard
length
(m)
Max.
Elevation
B (m)
Max.
Length
A (m)
Additional
refrigerant
(g/m)
Gas
Liquid
JOSI-DCH009-N11+ JOAU-DCY009-H11
3/8’’
(Ф9.52
)
1/4’’
(Ф6.35)
5
10
25
15
JOSI-DCH012-N11+JOAU-DCY012-H11
3/8’’
(Ф9.52
)
1/4’’
(Ф6.35)
5
10
25
15
JOSI-DCH018-N11+JOAU-DCY018-H11
1/2’’
(Ф12.7
)
1/4’’
(Ф6.35)
5
20
30
15
JOSI-DCH024-N11+JOAU-DCY024-H11
5/8’’
(Ф15.9
)
3/8’’
(Ф9.52)
5
25
50
30
Caution:
The capacity test is based on the standard length and the maximum permissive length is based on the
system reliability.
