7

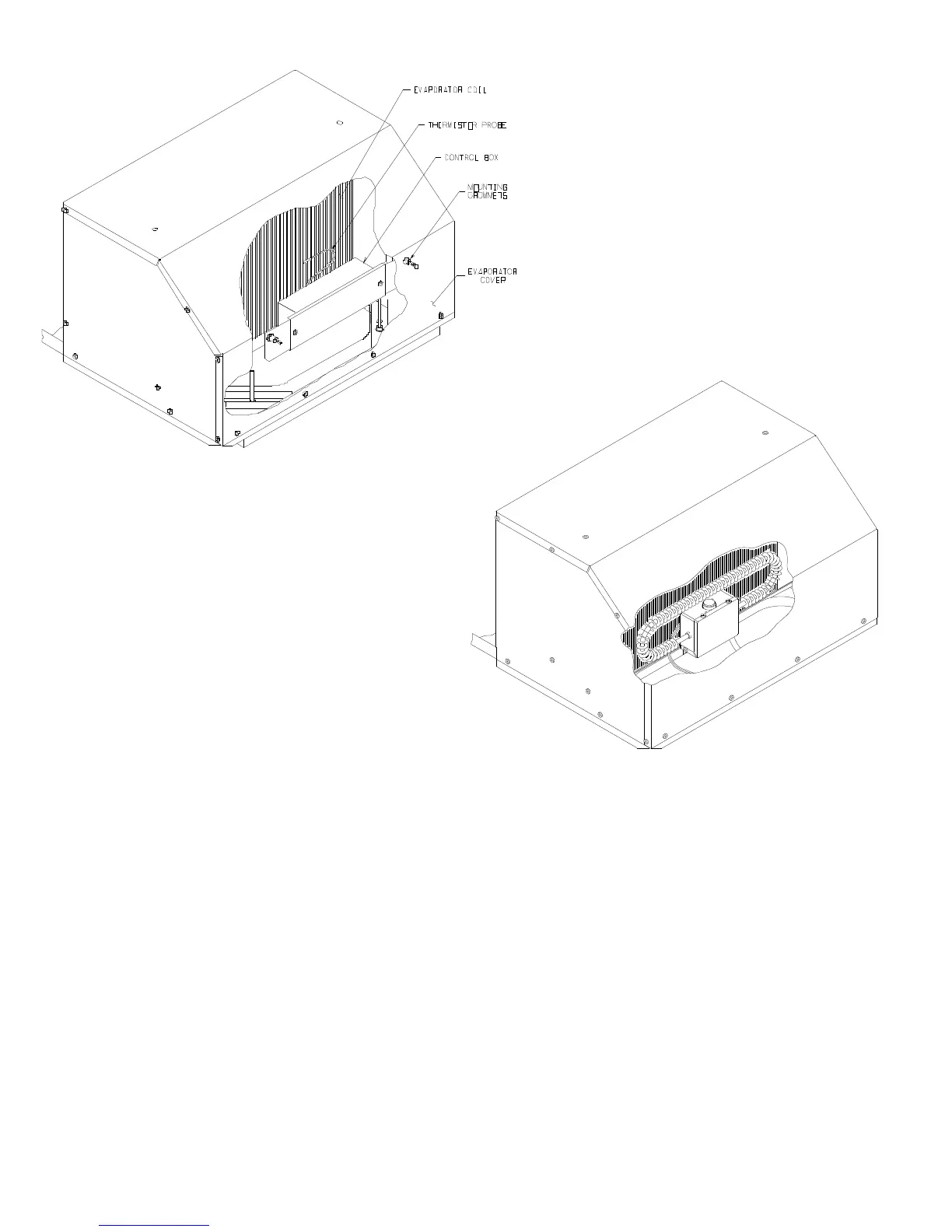

FIGURE 2
CONNECT 115 VAC WIRING
1. WARNING – SHOCK HAZARD
To prevent the possibility of severe personal
injury or equipment damage due to electrical
shock, always be sure the electrical power is
disconnected or off before beginning
installation.
2. Complying with the “Danger” notice below, bring the
115 VAC supply wiring previously routed into the
frame of the roof opening, through the strain relief
atop the electrical box and into the high voltage
wiring area.
DANGER
WHEN USING NON-METALLIC SHEATH
SUPPLY CABLES (ROMEX, ETC.), STRIP
SHEATH BACK TO EXPOSE 4-6 INCHES
OF THE SUPPLY LEADS. STRIP THE
INDIVIDUAL WIRE LEAD ENDS FOR
WIRE CONNECTION (ABOUT 3/4" BARE
WIRE). INSERT STRAIN RELIEF INTO
ELECTRICAL BOX. INSERT THE
SUPPLY WIRES THROUGH THE STRAIN
RELIEF.
(ON SOME UNITS, THERE WILL
BE MACHINE SCREWS AT
THESE LOCATIONS)
-
