9

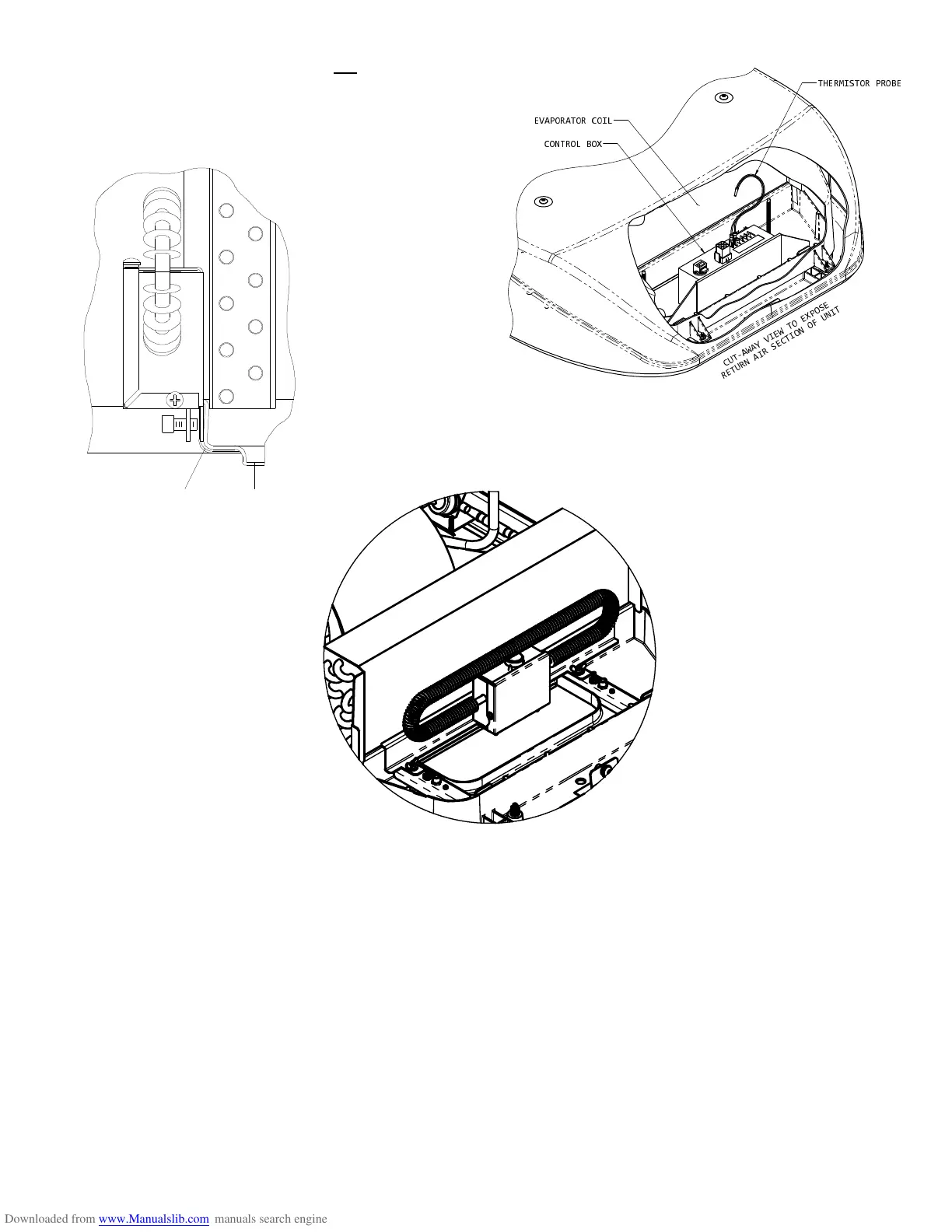

TIE ALL WIRING TO INSURE NO CONTACT
WITH THE HEATER OR ANY SHARP EDGES.
KEEP IN MIND THAT HIGH VELOCITY AIR
WILL BE ENCOUNTERED IN THIS AREA.
FIGURE 4
FIGURE 3
FIGURE 5
INSTALL AIR GRILLE ASSEMBLY
1. Temporarily remove the air grille assembly filter
door. A quarter-turn of the fastener will disengage
the door. Attach the air grille frame to the mount
frame with 3 screws as shown in Figure 1 – use 3/4"
screws. Adjust as desired to insure that all foam parts
are within the grille perimeter, and secure the corners
of the grille to the ceiling. These 4 corner screws are
not provided. Check all fits to insure that a
reasonably air tight seal exists to separate unit supply
air from unit return air. Re-install the filter door.
2. Installation is now complete.
Drain Pan
Basepan
Ş
To Next Page
