43
ICE CFA1120A-3360A & CGA3180A I&O Manual 03/2021 Rev.5
Fresh Air Hood Adjustment (non-economozer air conditioners only)
The fresh air hood is located on the inside, behind the slots on the bottom front panel. To access the
hood, remove the screws that hold the front panel. The air ow can be adjusted from no (0%) fresh air
to approximately 15% of rated air ow of fresh air, in 5% increments. The hood is shipped from the
factory in the closed position (no fresh air). To provide fresh air, remove the two screws on either side
of the hood and reposition as desired.

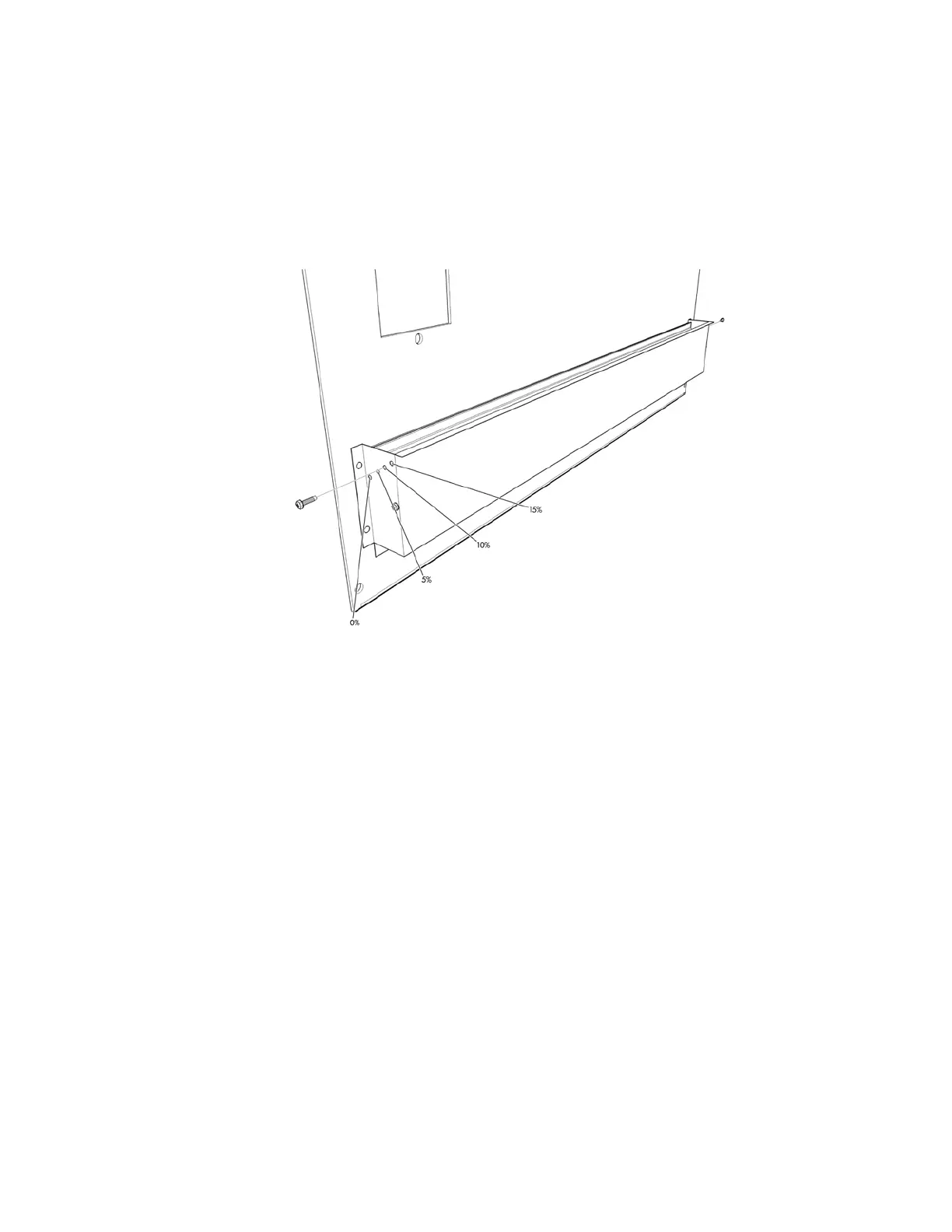

Fresh Air Hood Damper
