REVISIONS
ECO# DATE REV. DESCRIPTI ON REV BY
CHECKE
DBY
-- 7/27/2015 0 FRESH AIR DAMPER ASSY INSTALL INSTRUCTIONS PF TM
--
Marvair
Cordele, GADivision of AIRXCEL, Inc.
ECUA90-150 DAMPER ASSY
PF
FRESH AIR DAMPER ASSY INSTALLATION
--
1
TM--
REV
FRESH AIR DAMPER ASSY INSTALL
7/27/2015
INSTRUCTIONS
7/27/2015
--
ECO # REV DATE
DESCRIPTION REV BY CH BY
PF
Last
K/04657
REV.
SCALE DRAW N BY
APPROVED BY
TITLE
DATE DRAWING NUMBER
TOLERANCES
EXCEPT
AS NOTED
DECIMAL
±
FRACTIONAL
±
ANGULAR
±
This drawing contains confidential information of Marvair, a Division of AIRXCEL, Inc. This
information is not to be disclosed or utilized without the expressed written permission of
Marvair, a Division of AIRXCEL, Inc.
91
50
7
88
90
90
88 50
91

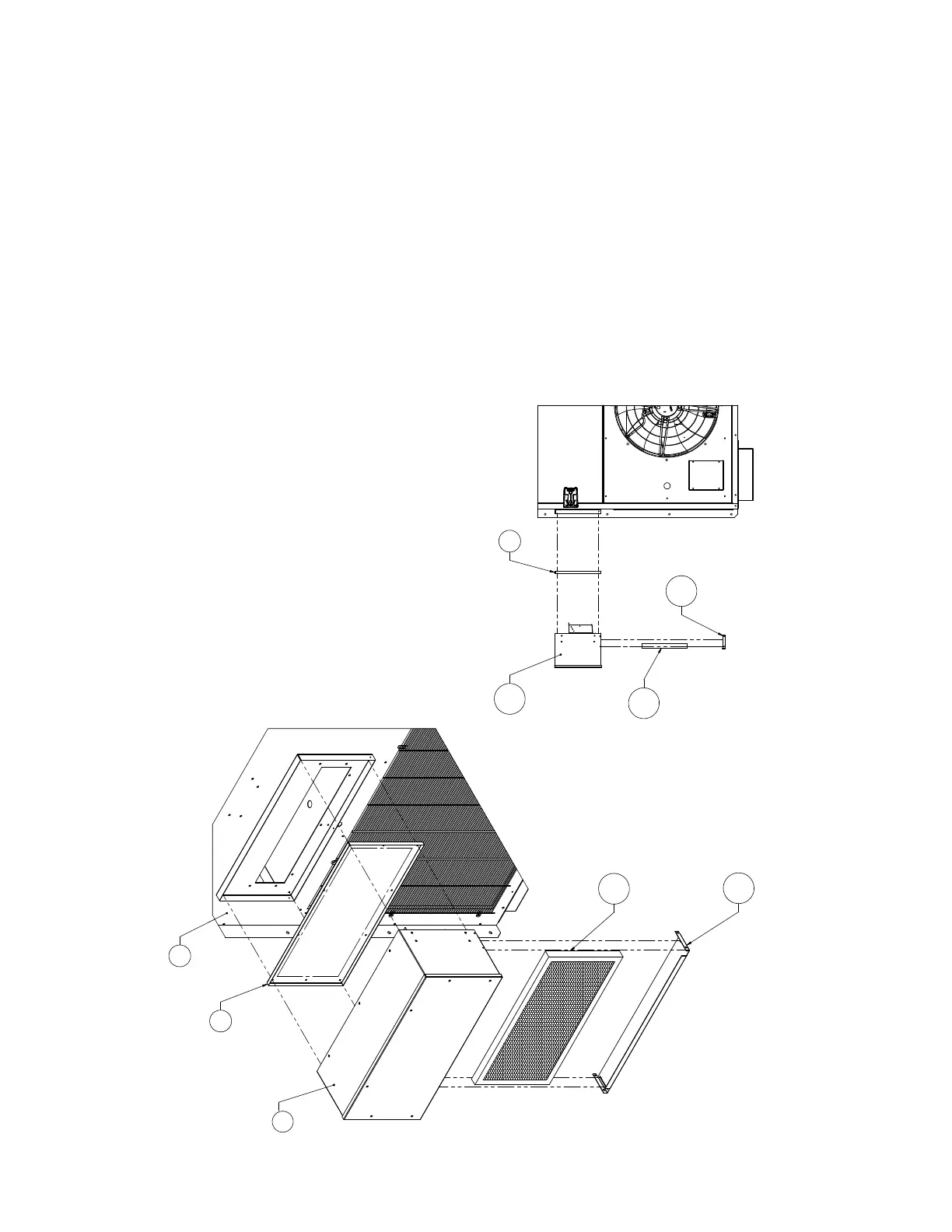

HOW TO INSTALL FRESH AIR DAMPER ASSY(88):
DETACH ITEM 50 - COVER PLATE FROM ITEM 7 - MAIN UNIT AND DISCARD•
ATTACH ITEM 88 - DAMPER ASSY TO ITEM 7 - MAIN UNIT•
HOW TO REPLACE FILTER(91):
DETACH ITEM 90 - FILTER COVER FROM ITEM 88 -DAMPER ASSY•
SLIDE ITEM 91 - FILTER OUT/IN •
ATTACH ITEM 90 - FILTER COVER TO ITEM 88 - DAMPER ASSY•
