10
A-MIP 200 V1.06
Electrical installation
Power Supply Block
Must be located outside the Aivia, never installed
inside the Aivia.
• The power supply block must include:
A 10A/30mA residual current circuit breaker.
A 24VDC/75W CLASS II (TT System) power
supply*.
The power supply must be from a power limited source.
The mains connection must include the primary phase,
neutral, and earth.
The maximum full load secondary voltage drop must
not exceed 2%, or 23.5V at the Aivia terminal.
The power block must be dust and water proof, and
ventilated**.
• The power block wiring must conform to
standards on force in the country of use.
* Recommended power supply: PYRESCOM C_AL/DR75-24.
** Natural or forced convection depending on the environnment and
thermal characteristics at maximum load.
TBT CABLE:
Type U1000R2V. 2 insulated jacketed conductors,
1.5mm² area, 10 metres maximum length.
Use red or maroon colour cable for the +24V line.
Use black or gray colour cable for the 0V line.

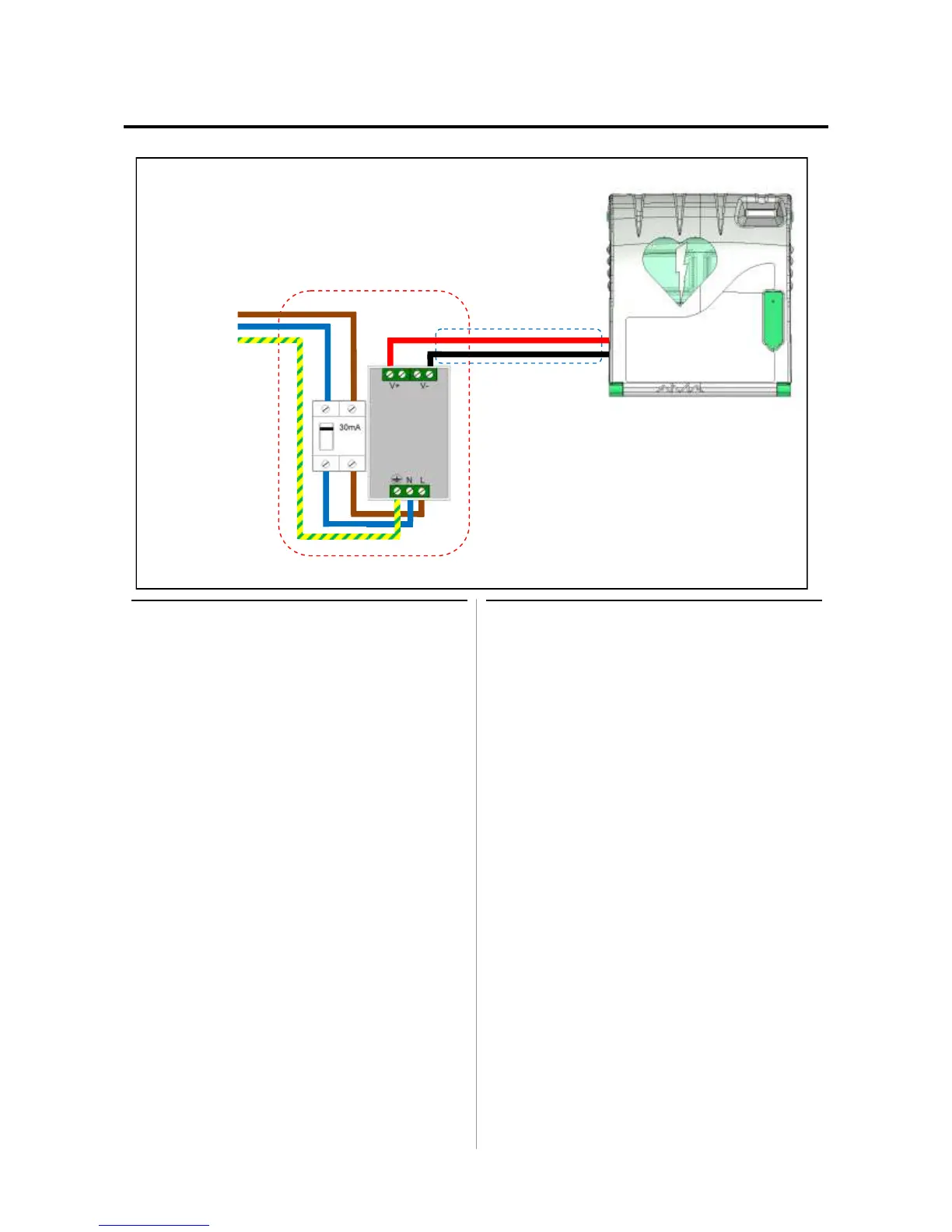

230 VAC/50Hz
POWER SUPPLY BLOCK
Power Pupply
24VDC/75W
CLASSE I
TBT CABLE
www.aivia.eu/doc/A-DPM.html
Mains Power
To Next Page
