Aiwa CSD-FD85 - Wiring Diagram: Tuner (HR, HA, HT Models)

15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U

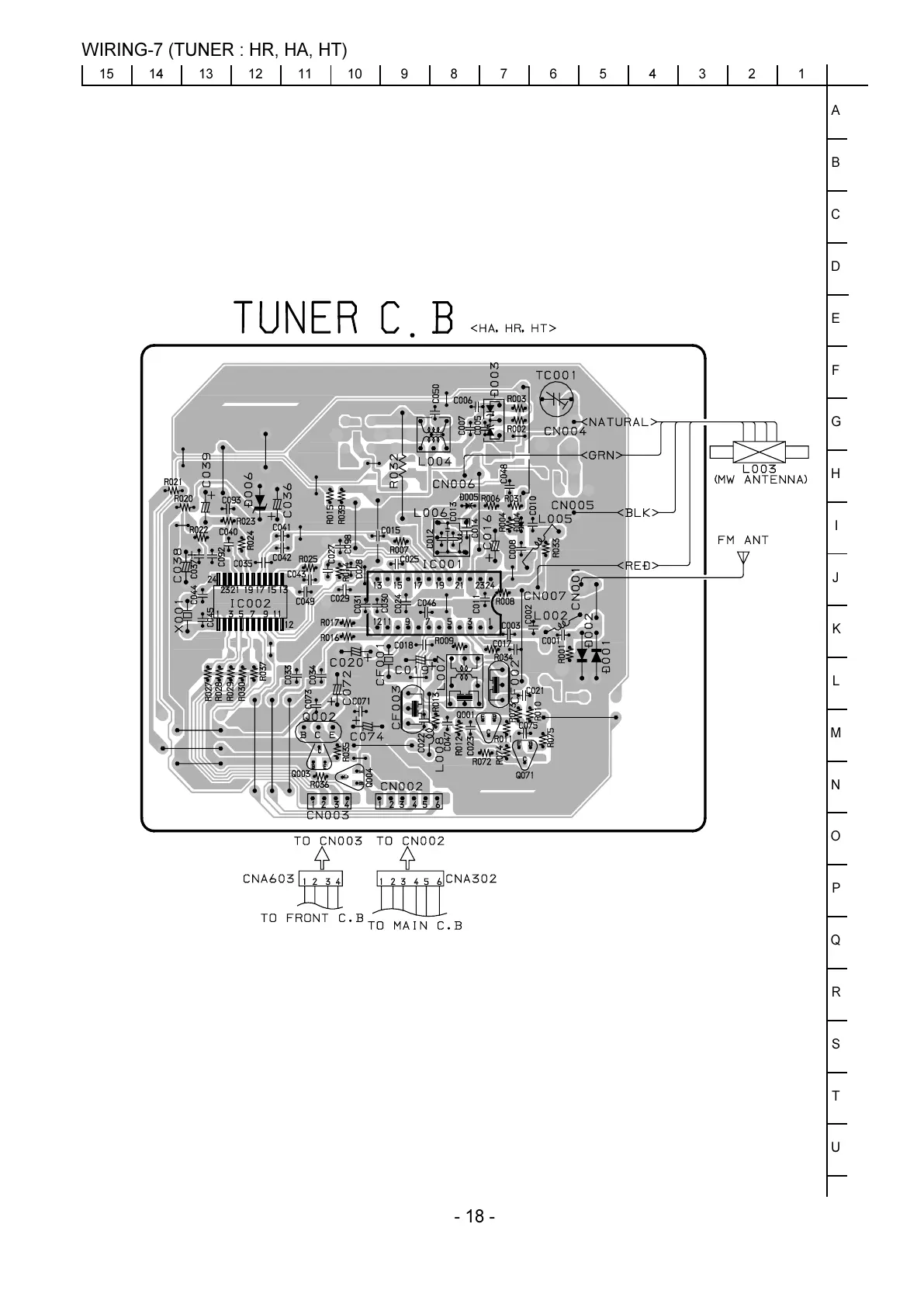

WIRING-7 (TUNER : HR, HA, HT)
