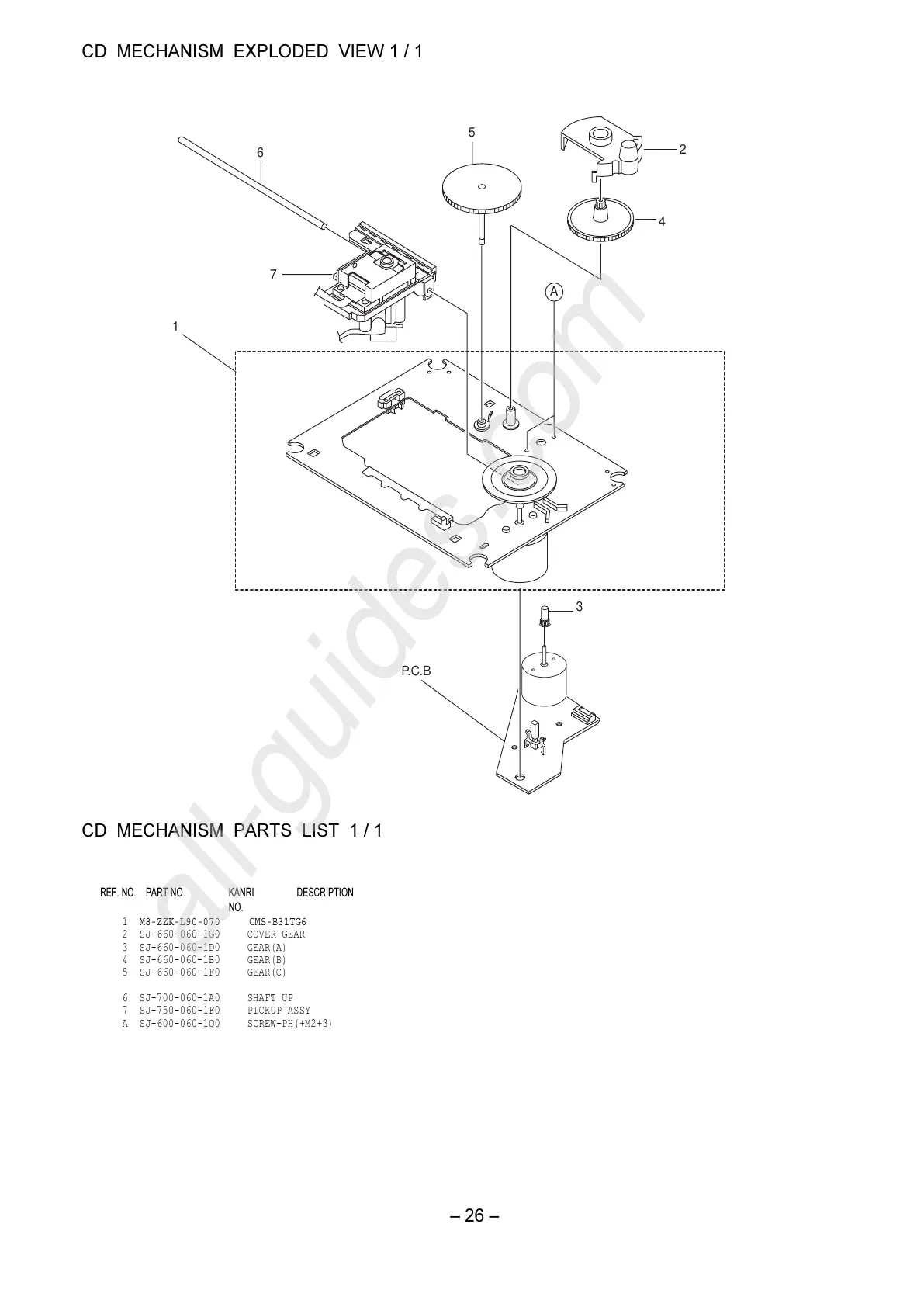

CD MECHANISM EXPLODED VIEW 1 / 1
 26 
1
7
6
2
5
4
3
P. C. B
A
1 M8-ZZK-L90-070 CMS-B31TG6
2 SJ-660-060-1G0 COVER GEAR
3 SJ-660-060-1D0 GEAR(A)
4 SJ-660-060-1B0 GEAR(B)
5 SJ-660-060-1F0GEAR(C)
6 SJ-700-060-1A0 SHAFT UP
7 SJ-750-060-1F0 PICKUP ASSY
A SJ-600-060-1O0 SCREW-PH(+M2+3)
CD MECHANISM PARTS LIST 1 / 1
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
