38 87-036-389-010 SW,PUSH LOCK
39 8A-CHE-003-010 CHAS,CD 6K E
40 8A-CH4-206-010 HLDR,OIL-DMPR
41 8A-CHE-026-010 BTN,VOL E
42 8A-CHE-018-010 HANDL,GRIP E
43 8A-CHE-019-010 COVER, HANDL E
44 87-A90-086-010 COVER,AC-SOCKET
45 87-A60-178-010 JACK,AC E W/SW
46 8A-CH4-002-010 CABI,REAR<EXCEPT 85HR,85K,85EZ>
46 8A-CHE-002-010 CABI,REAR HI<85HR,85K,85EZ>
47 8Z-CH4-640-010 ANT,ROD
48 87-CD6-041-010 PLATE,AC<85K,83EZ,85EZ>
49 8A-CH4-011-010 LID,BATT<EXCEPT 85HR,85K,85EZ>
49 8A-CHE-011-010 LID,BATT HI<85HR,85K,85EZ>
50 87-CD6-213-010 SPR-C,BATT (-)
51 8A-CH4-210-010 HLDR,ANT
52 8A-CH4-667-010 PT,E<83EZ>
52 8Z-CH4-663-010 PT,E (75-35)<85K,85EZ>
52 8A-CH4-668-010 PT,H<83HR,83HA,83HT>
52 8A-CHE-661-010 PT,H (75-35)<85HR>
53 8A-CH4-211-010 COVER, HLDR PT
54 8A-CH4-209-010 HLDR,PT<EXCEPT 85HR,85K,85EZ>
54 8Z-CH4-209-010 HLDR,PT<85HR,85K,85EZ>
55 8A-CHE-020-010 KEY,CASS 6K E
56 8A-CH4-203-010 HLDR,TU
57 8A-CH4-212-010 SPR-P,REC ZZM-1
58 8A-CD9-622-010 FF-CABLE, 8P CD-FR
59 8A-CD9-621-010 FF-CABLE, 16P CD-RF
60 87-A91-369-010 SW,AC SL 2 2 2 <EXCEPT 85K,83EZ,85EZ>
61 8A-CHE-212-010 COVER, HLDR TRANS<85HR,85K,85EZ>
62 8Z-CH4-031-010 BTN,POWER-SAVE<85HR,85K,85EZ>
63 8A-CD9-224-010 HLDR,REC ZZM-1
A 87-741-096-410 UT2+3-10
B 87-342-074-010 UT2+2.6-8
C 87-741-100-410 UT2+3-16(W/O) SLOT
D 87-661-100-410 VFT1+3-16
E 87-067-566-010 TAPPING SCREW, VFTT+3-6
F 87-741-095-410 UT2+3-8 GLD
G 87-751-094-410 VT2+3-6 W10SLOT
H 87-B10-239-010 QT2+3-8 W/O CR
I 87-751-075-410 VT2+2.6-10
J 87-744-095-410 UT2+3-8CR
K 87-254-097-410 U+3-12 CR
L 8A-CDA-222-010 S-SCREW,CASS+2.6-4

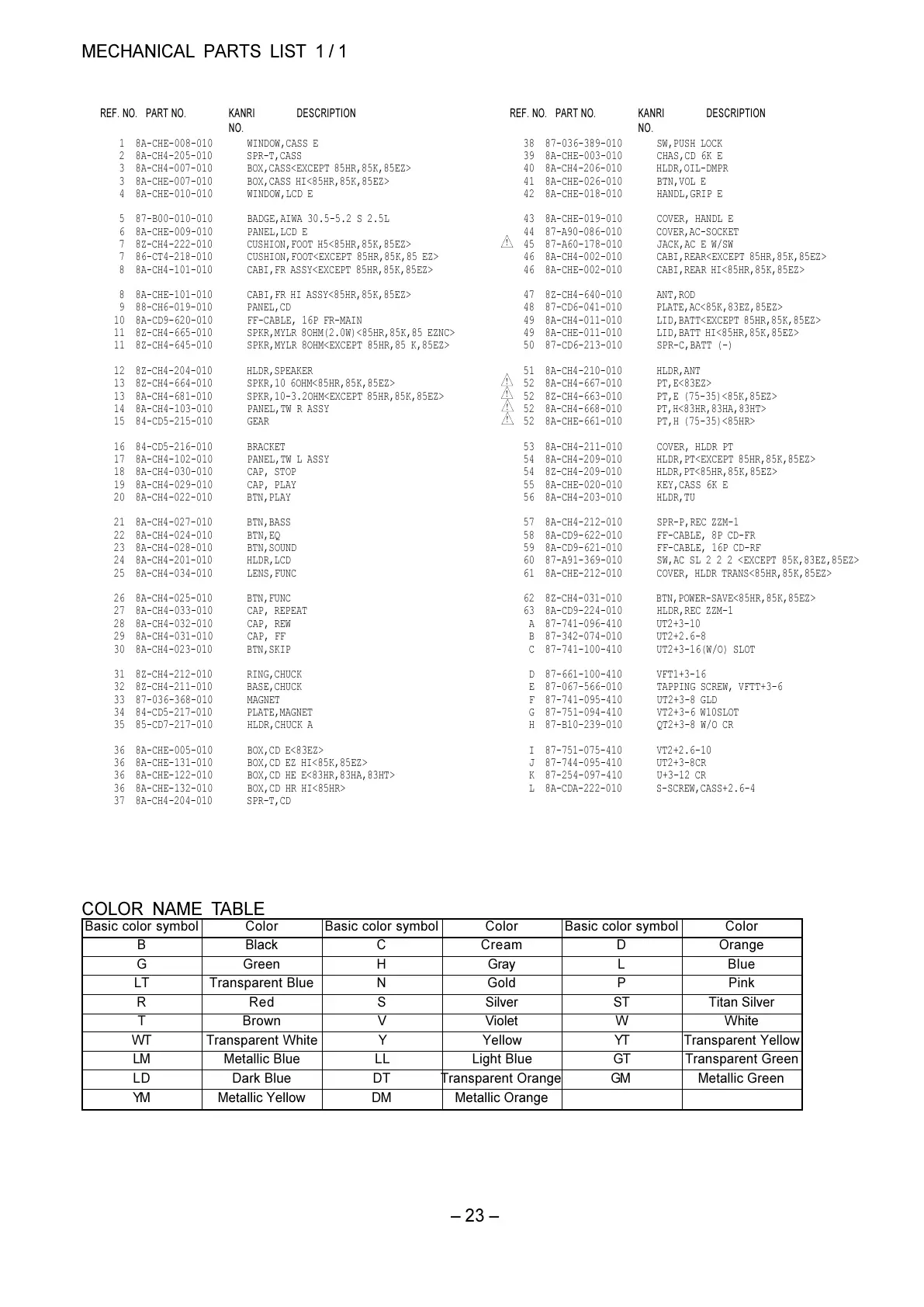

MECHANICAL PARTS LIST 1 / 1
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
!
!
COLOR NAME TABLE
Basic color symbol Color Basic color symbol Color Basic color symbol Color
B Black C Cream D Orange
G Green H Gray L Blue
LT Transparent Blue N Gold P Pink
R Red S Silver ST Titan Silver
T Brown V Violet W White
WT Transparent White Y Yellow YT Transparent Yellow
LM Metallic Blue LL Light Blue GT Transparent Green
LD Dark Blue DT Transparent Orange GM Metallic Green
YM Metallic Yellow DM Metallic Orange
23
1 8A-CHE-008-010 WINDOW,CASS E
2 8A-CH4-205-010 SPR-T,CASS
3 8A-CH4-007-010 BOX,CASS<EXCEPT 85HR,85K,85EZ>
3 8A-CHE-007-010 BOX,CASS HI<85HR,85K,85EZ>
4 8A-CHE-010-010 WINDOW,LCD E
5 87-B00-010-010 BADGE,AIWA 30.5-5.2 S 2.5L
6 8A-CHE-009-010 PANEL,LCD E
7 8Z-CH4-222-010 CUSHION,FOOT H5<85HR,85K,85EZ>
7 86-CT4-218-010 CUSHION,FOOT<EXCEPT 85HR,85K,85 EZ>
8 8A-CH4-101-010 CABI,FR ASSY<EXCEPT 85HR,85K,85EZ>
8 8A-CHE-101-010 CABI,FR HI ASSY<85HR,85K,85EZ>
9 88-CH6-019-010 PANEL,CD
10 8A-CD9-620-010 FF-CABLE, 16P FR-MAIN
11 8Z-CH4-665-010 SPKR,MYLR 8OHM(2.0W)<85HR,85K,85 EZNC>
11 8Z-CH4-645-010 SPKR,MYLR 8OHM<EXCEPT 85HR,85 K,85EZ>
12 8Z-CH4-204-010 HLDR,SPEAKER
13 8Z-CH4-664-010 SPKR,10 6OHM<85HR,85K,85EZ>
13 8A-CH4-681-010 SPKR,10-3.2OHM<EXCEPT 85HR,85K,85EZ>
14 8A-CH4-103-010 PANEL,TW R ASSY
15 84-CD5-215-010 GEAR
16 84-CD5-216-010 BRACKET
17 8A-CH4-102-010 PANEL,TW L ASSY
18 8A-CH4-030-010 CAP, STOP
19 8A-CH4-029-010 CAP, PLAY
20 8A-CH4-022-010 BTN,PLAY
21 8A-CH4-027-010 BTN,BASS
22 8A-CH4-024-010 BTN,EQ
23 8A-CH4-028-010 BTN,SOUND
24 8A-CH4-201-010 HLDR,LCD
25 8A-CH4-034-010 LENS,FUNC
26 8A-CH4-025-010 BTN,FUNC
27 8A-CH4-033-010 CAP, REPEAT
28 8A-CH4-032-010 CAP, REW
29 8A-CH4-031-010 CAP, FF
30 8A-CH4-023-010 BTN,SKIP
31 8Z-CH4-212-010 RING,CHUCK
32 8Z-CH4-211-010 BASE,CHUCK
33 87-036-368-010 MAGNET
34 84-CD5-217-010 PLATE,MAGNET
35 85-CD7-217-010 HLDR,CHUCK A
36 8A-CHE-005-010 BOX,CD E<83EZ>
36 8A-CHE-131-010 BOX,CD EZ HI<85K,85EZ>
36 8A-CHE-122-010 BOX,CD HE E<83HR,83HA,83HT>
36 8A-CHE-132-010 BOX,CD HR HI<85HR>
37 8A-CH4-204-010 SPR-T,CD
!
!
!
