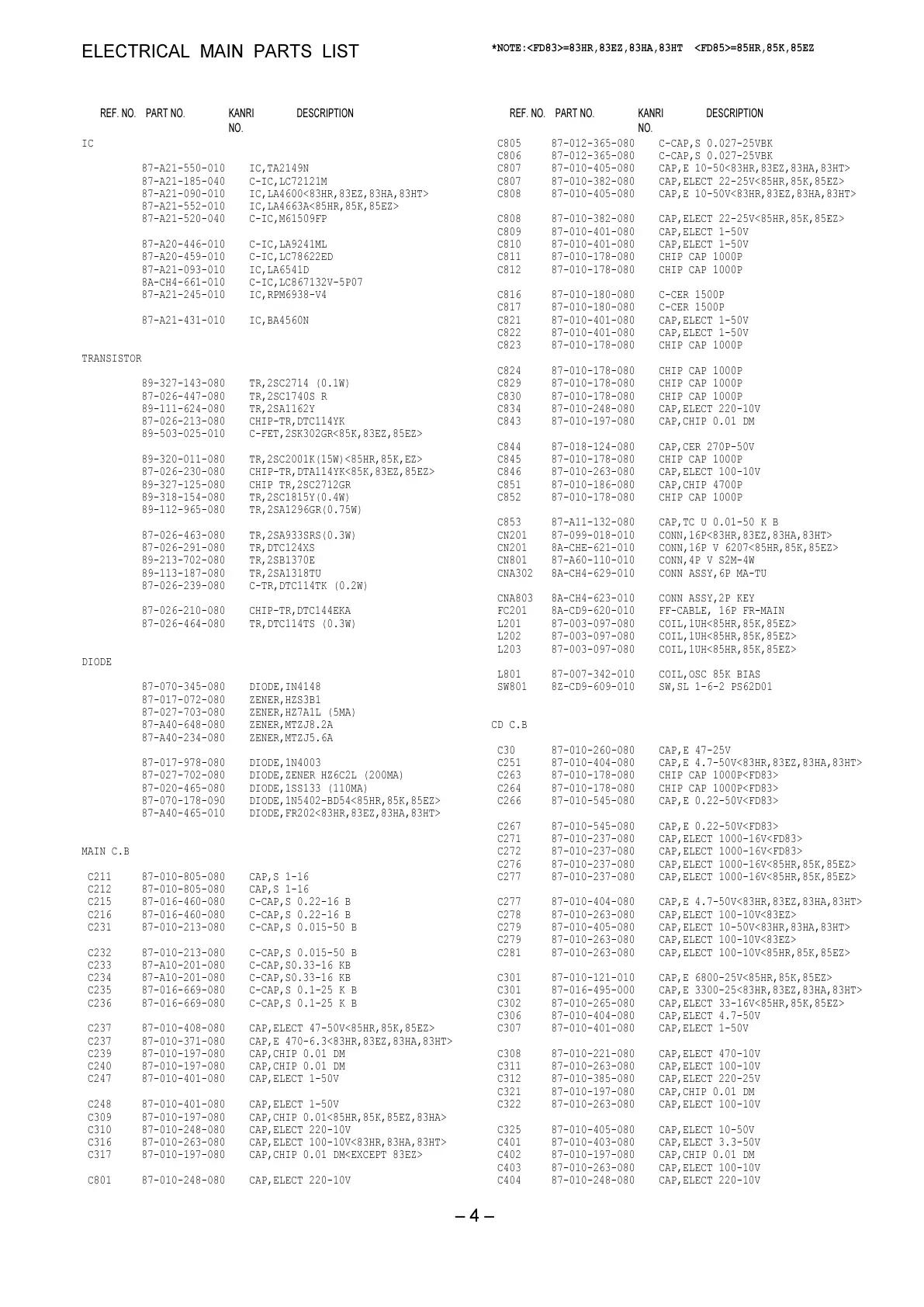

ELECTRICAL MAIN PARTS LIST
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
 4 
IC
87-A21-550-010 IC,TA2149N
87-A21-185-040 C-IC,LC72121M
87-A21-090-010 IC,LA4600<83HR,83EZ,83HA,83HT>
87-A21-552-010 IC,LA4663A<85HR,85K,85EZ>
87-A21-520-040 C-IC,M61509FP
87-A20-446-010 C-IC,LA9241ML
87-A20-459-010 C-IC,LC78622ED
87-A21-093-010 IC,LA6541D
8A-CH4-661-010 C-IC,LC867132V-5P07
87-A21-245-010 IC,RPM6938-V4
87-A21-431-010 IC,BA4560N
TRANSISTOR
89-327-143-080 TR,2SC2714 (0.1W)
87-026-447-080 TR,2SC1740S R
89-111-624-080 TR,2SA1162Y
87-026-213-080 CHIP-TR,DTC114YK
89-503-025-010 C-FET,2SK302GR<85K,83EZ,85EZ>
89-320-011-080 TR,2SC2001K(15W)<85HR,85K,EZ>
87-026-230-080 CHIP-TR,DTA114YK<85K,83EZ,85EZ>
89-327-125-080 CHIP TR,2SC2712GR
89-318-154-080 TR,2SC1815Y(0.4W)
89-112-965-080 TR,2SA1296GR(0.75W)
87-026-463-080 TR,2SA933SRS(0.3W)
87-026-291-080 TR,DTC124XS
89-213-702-080 TR,2SB1370E
89-113-187-080 TR,2SA1318TU
87-026-239-080 C-TR,DTC114TK (0.2W)
87-026-210-080 CHIP-TR,DTC144EKA
87-026-464-080 TR,DTC114TS (0.3W)
DIODE
87-070-345-080 DIODE,IN4148
87-017-072-080 ZENER,HZS3B1
87-027-703-080 ZENER,HZ7A1L (5MA)
87-A40-648-080 ZENER,MTZJ8.2A
87-A40-234-080 ZENER,MTZJ5.6A
87-017-978-080 DIODE,1N4003
87-027-702-080 DIODE,ZENER HZ6C2L (200MA)
87-020-465-080 DIODE,1SS133 (110MA)
87-070-178-090 DIODE,1N5402-BD54<85HR,85K,85EZ>
87-A40-465-010 DIODE,FR202<83HR,83EZ,83HA,83HT>
MAIN C.B
C211 87-010-805-080 CAP,S 1-16
C212 87-010-805-080 CAP,S 1-16
C215 87-016-460-080 C-CAP,S 0.22-16 B
C216 87-016-460-080 C-CAP,S 0.22-16 B
C231 87-010-213-080 C-CAP,S 0.015-50 B
C232 87-010-213-080 C-CAP,S 0.015-50 B
C233 87-A10-201-080 C-CAP,S0.33-16 KB
C234 87-A10-201-080 C-CAP,S0.33-16 KB
C235 87-016-669-080 C-CAP,S 0.1-25 K B
C236 87-016-669-080 C-CAP,S 0.1-25 K B
C237 87-010-408-080 CAP,ELECT 47-50V<85HR,85K,85EZ>
C237 87-010-371-080 CAP,E 470-6.3<83HR,83EZ,83HA,83HT>
C239 87-010-197-080 CAP,CHIP 0.01 DM
C240 87-010-197-080 CAP,CHIP 0.01 DM
C247 87-010-401-080 CAP,ELECT 1-50V
C248 87-010-401-080 CAP,ELECT 1-50V
C309 87-010-197-080 CAP,CHIP 0.01<85HR,85K,85EZ,83HA>
C310 87-010-248-080 CAP,ELECT 220-10V
C316 87-010-263-080 CAP,ELECT 100-10V<83HR,83HA,83HT>
C317 87-010-197-080 CAP,CHIP 0.01 DM<EXCEPT 83EZ>
C801 87-010-248-080 CAP,ELECT 220-10V
C805 87-012-365-080 C-CAP,S 0.027-25VBK
C806 87-012-365-080 C-CAP,S 0.027-25VBK
C807 87-010-405-080 CAP,E 10-50<83HR,83EZ,83HA,83HT>
C807 87-010-382-080 CAP,ELECT 22-25V<85HR,85K,85EZ>
C808 87-010-405-080 CAP,E 10-50V<83HR,83EZ,83HA,83HT>
C808 87-010-382-080 CAP,ELECT 22-25V<85HR,85K,85EZ>
C809 87-010-401-080 CAP,ELECT 1-50V
C810 87-010-401-080 CAP,ELECT 1-50V
C811 87-010-178-080 CHIP CAP 1000P
C812 87-010-178-080 CHIP CAP 1000P
C816 87-010-180-080 C-CER 1500P
C817 87-010-180-080 C-CER 1500P
C821 87-010-401-080 CAP,ELECT 1-50V
C822 87-010-401-080 CAP,ELECT 1-50V
C823 87-010-178-080 CHIP CAP 1000P
C824 87-010-178-080 CHIP CAP 1000P
C829 87-010-178-080 CHIP CAP 1000P
C830 87-010-178-080 CHIP CAP 1000P
C834 87-010-248-080 CAP,ELECT 220-10V
C843 87-010-197-080 CAP,CHIP 0.01 DM
C844 87-018-124-080 CAP,CER 270P-50V
C845 87-010-178-080 CHIP CAP 1000P
C846 87-010-263-080 CAP,ELECT 100-10V
C851 87-010-186-080 CAP,CHIP 4700P
C852 87-010-178-080 CHIP CAP 1000P
C853 87-A11-132-080 CAP,TC U 0.01-50 K B
CN201 87-099-018-010 CONN,16P<83HR,83EZ,83HA,83HT>
CN201 8A-CHE-621-010 CONN,16P V 6207<85HR,85K,85EZ>
CN801 87-A60-110-010 CONN,4P V S2M-4W
CNA302 8A-CH4-629-010 CONN ASSY,6P MA-TU
CNA803 8A-CH4-623-010 CONN ASSY,2P KEY
FC201 8A-CD9-620-010 FF-CABLE, 16P FR-MAIN
L201 87-003-097-080 COIL,1UH<85HR,85K,85EZ>
L202 87-003-097-080 COIL,1UH<85HR,85K,85EZ>
L203 87-003-097-080 COIL,1UH<85HR,85K,85EZ>
L801 87-007-342-010 COIL,OSC 85K BIAS
SW801 8Z-CD9-609-010 SW,SL 1-6-2 PS62D01
CD C.B
C30 87-010-260-080 CAP,E 47-25V
C251 87-010-404-080 CAP,E 4.7-50V<83HR,83EZ,83HA,83HT>
C263 87-010-178-080 CHIP CAP 1000P<FD83>
C264 87-010-178-080 CHIP CAP 1000P<FD83>
C266 87-010-545-080 CAP,E 0.22-50V<FD83>
C267 87-010-545-080 CAP,E 0.22-50V<FD83>
C271 87-010-237-080 CAP,ELECT 1000-16V<FD83>
C272 87-010-237-080 CAP,ELECT 1000-16V<FD83>
C276 87-010-237-080 CAP,ELECT 1000-16V<85HR,85K,85EZ>
C277 87-010-237-080 CAP,ELECT 1000-16V<85HR,85K,85EZ>
C277 87-010-404-080 CAP,E 4.7-50V<83HR,83EZ,83HA,83HT>
C278 87-010-263-080 CAP,ELECT 100-10V<83EZ>
C279 87-010-405-080 CAP,ELECT 10-50V<83HR,83HA,83HT>
C279 87-010-263-080 CAP,ELECT 100-10V<83EZ>
C281 87-010-263-080 CAP,ELECT 100-10V<85HR,85K,85EZ>
C301 87-010-121-010 CAP,E 6800-25V<85HR,85K,85EZ>
C301 87-016-495-000 CAP,E 3300-25<83HR,83EZ,83HA,83HT>
C302 87-010-265-080 CAP,ELECT 33-16V<85HR,85K,85EZ>
C306 87-010-404-080 CAP,ELECT 4.7-50V
C307 87-010-401-080 CAP,ELECT 1-50V
C308 87-010-221-080 CAP,ELECT 470-10V
C311 87-010-263-080 CAP,ELECT 100-10V
C312 87-010-385-080 CAP,ELECT 220-25V
C321 87-010-197-080 CAP,CHIP 0.01 DM
C322 87-010-263-080 CAP,ELECT 100-10V
C325 87-010-405-080 CAP,ELECT 10-50V
C401 87-010-403-080 CAP,ELECT 3.3-50V
C402 87-010-197-080 CAP,CHIP 0.01 DM
C403 87-010-263-080 CAP,ELECT 100-10V
C404 87-010-248-080 CAP,ELECT 220-10V
*NOTE:<FD83>=83HR,83EZ,83HA,83HT <FD85>=85HR,85K,85EZ
