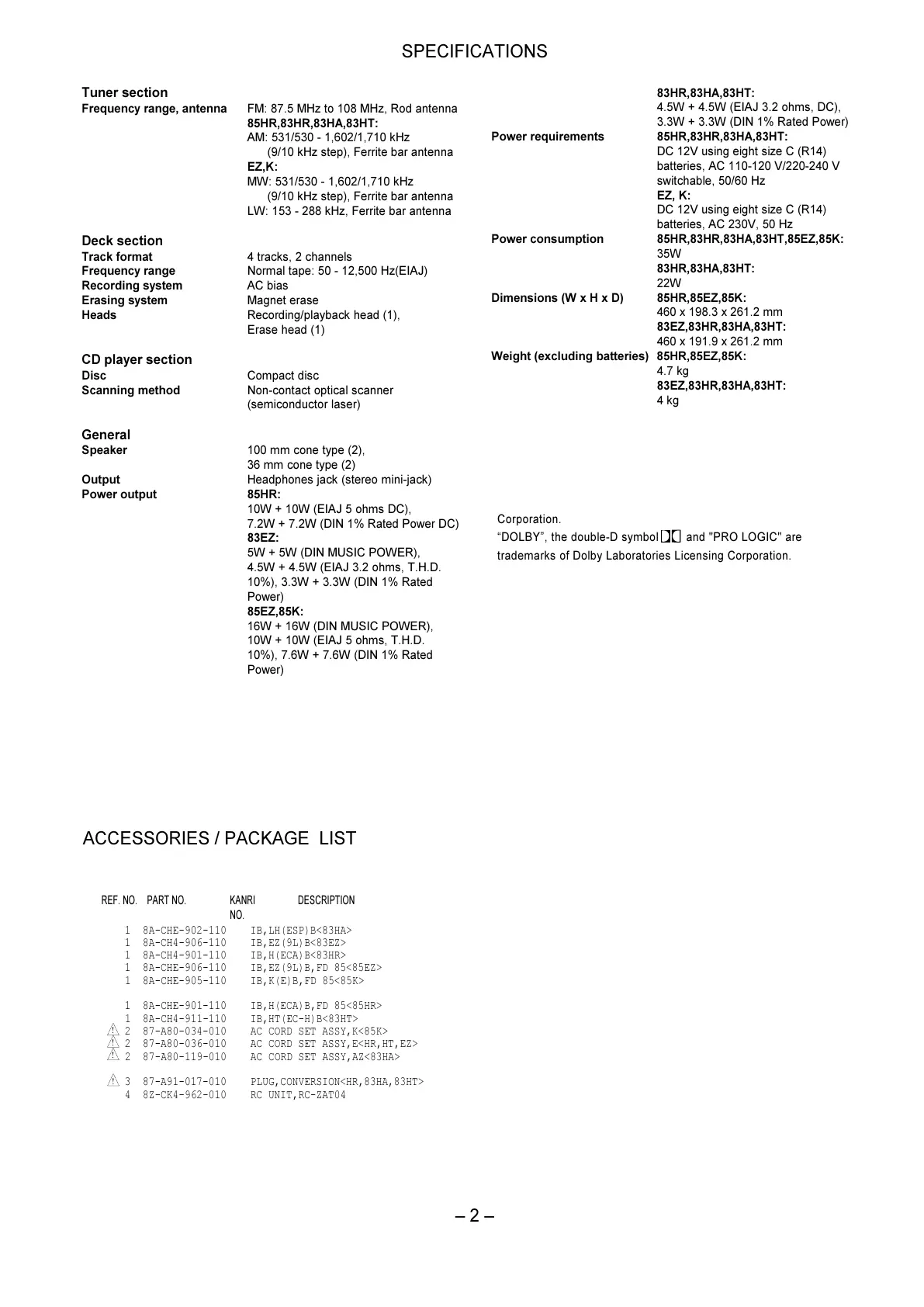

Aiwa CSD-FD85 - Specifications; Tuner Section; Deck Section; CD Player Section

Tuner section
Frequency range, antenna FM: 87.5 MHz to 108 MHz, Rod antenna
85HR,83HR,83HA,83HT:
AM: 531/530 - 1,602/1,710 kHz
(9/10 kHz step), Ferrite bar antenna
EZ,K:
MW: 531/530 - 1,602/1,710 kHz
(9/10 kHz step), Ferrite bar antenna
LW: 153 - 288 kHz, Ferrite bar antenna
Deck section
Track format 4 tracks, 2 channels
Frequency range Normal tape: 50 - 12,500 Hz(EIAJ)
Recording system AC bias
Erasing system Magnet erase
Heads Recording/playback head (1),
Erase head (1)
CD player section
Disc Compact disc
Scanning method Non-contact optical scanner
(semiconductor laser)
General
Speaker 100 mm cone type (2),
36 mm cone type (2)
Output Headphones jack (stereo mini-jack)
Power output 85HR:
10W + 10W (EIAJ 5 ohms DC),
7.2W + 7.2W (DIN 1% Rated Power DC)
83EZ:
5W + 5W (DIN MUSIC POWER),
4.5W + 4.5W (EIAJ 3.2 ohms, T.H.D.
10%), 3.3W + 3.3W (DIN 1% Rated
Power)
85EZ,85K:
16W + 16W (DIN MUSIC POWER),
10W + 10W (EIAJ 5 ohms, T.H.D.
10%), 7.6W + 7.6W (DIN 1% Rated
Power)
SPECIFICATIONS
 2 
83HR,83HA,83HT:
4.5W + 4.5W (EIAJ 3.2 ohms, DC),
3.3W + 3.3W (DIN 1% Rated Power)
Power requirements 85HR,83HR,83HA,83HT:
DC 12V using eight size C (R14)
batteries, AC 110-120 V/220-240 V
switchable, 50/60 Hz
EZ, K:
DC 12V using eight size C (R14)
batteries, AC 230V, 50 Hz
Power consumption 85HR,83HR,83HA,83HT,85EZ,85K:
35W
83HR,83HA,83HT:
22W
Dimensions (W x H x D) 85HR,85EZ,85K:
460 x 198.3 x 261.2 mm
83EZ,83HR,83HA,83HT:
460 x 191.9 x 261.2 mm
Weight (excluding batteries) 85HR,85EZ,85K:
4.7 kg
83EZ,83HR,83HA,83HT:
4 kg
 Design and specifications are subject to change without notice.
 Manufactured under license from Dolby Laboratories Licensing
Corporation.
DOLBY, the double-D symbol and "PRO LOGIC" are
trademarks of Dolby Laboratories Licensing Corporation.
ACCESSORIES / PACKAGE LIST
DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
1 8A-CHE-902-110 IB,LH(ESP)B<83HA>
1 8A-CH4-906-110 IB,EZ(9L)B<83EZ>
1 8A-CH4-901-110 IB,H(ECA)B<83HR>
1 8A-CHE-906-110 IB,EZ(9L)B,FD 85<85EZ>
1 8A-CHE-905-110 IB,K(E)B,FD 85<85K>
1 8A-CHE-901-110 IB,H(ECA)B,FD 85<85HR>
1 8A-CH4-911-110 IB,HT(EC-H)B<83HT>
2 87-A80-034-010 AC CORD SET ASSY,K<85K>
2 87-A80-036-010 AC CORD SET ASSY,E<HR,HT,EZ>
2 87-A80-119-010 AC CORD SET ASSY,AZ<83HA>
3 87-A91-017-010 PLUG,CONVERSION<HR,83HA,83HT>
4 8Z-CK4-962-010 RC UNIT,RC-ZAT04
!
!
!
!
