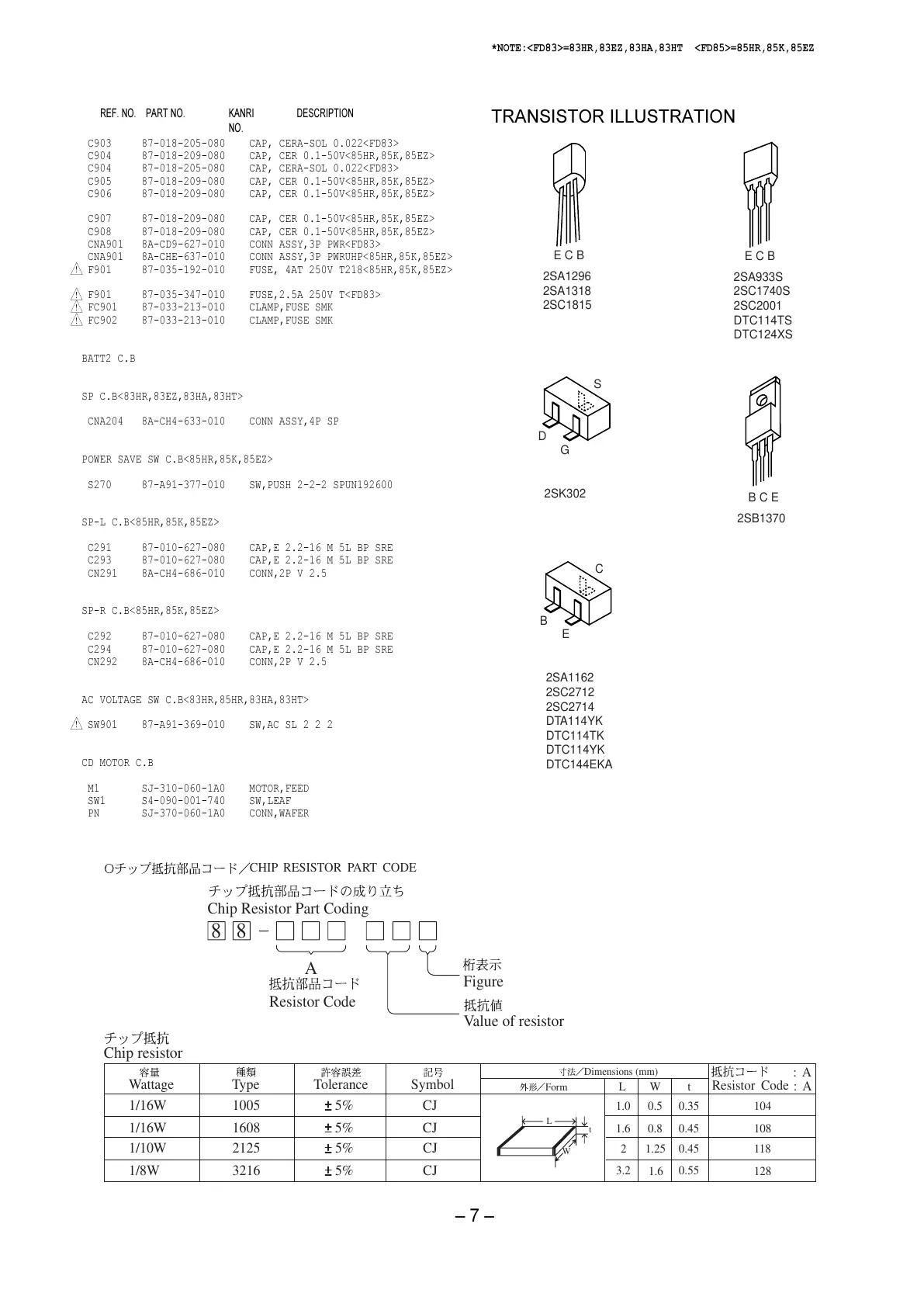

DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
î 7 î
C903 87-018-205-080 CAP, CERA-SOL 0.022<FD83>
C904 87-018-209-080 CAP, CER 0.1-50V<85HR,85K,85EZ>
C904 87-018-205-080 CAP, CERA-SOL 0.022<FD83>
C905 87-018-209-080 CAP, CER 0.1-50V<85HR,85K,85EZ>
C906 87-018-209-080 CAP, CER 0.1-50V<85HR,85K,85EZ>
C907 87-018-209-080 CAP, CER 0.1-50V<85HR,85K,85EZ>
C908 87-018-209-080 CAP, CER 0.1-50V<85HR,85K,85EZ>
CNA901 8A-CD9-627-010 CONN ASSY,3P PWR<FD83>
CNA901 8A-CHE-637-010 CONN ASSY,3P PWRUHP<85HR,85K,85EZ>
F901 87-035-192-010 FUSE, 4AT 250V T218<85HR,85K,85EZ>
F901 87-035-347-010 FUSE,2.5A 250V T<FD83>
FC901 87-033-213-010 CLAMP,FUSE SMK
FC902 87-033-213-010 CLAMP,FUSE SMK
BATT2 C.B
SP C.B<83HR,83EZ,83HA,83HT>
CNA204 8A-CH4-633-010 CONN ASSY,4P SP
POWER SAVE SW C.B<85HR,85K,85EZ>
S270 87-A91-377-010 SW,PUSH 2-2-2 SPUN192600
SP-L C.B<85HR,85K,85EZ>
C291 87-010-627-080 CAP,E 2.2-16 M 5L BP SRE
C293 87-010-627-080 CAP,E 2.2-16 M 5L BP SRE
CN291 8A-CH4-686-010 CONN,2P V 2.5
SP-R C.B<85HR,85K,85EZ>
C292 87-010-627-080 CAP,E 2.2-16 M 5L BP SRE
C294 87-010-627-080 CAP,E 2.2-16 M 5L BP SRE
CN292 8A-CH4-686-010 CONN,2P V 2.5
AC VOLTAGE SW C.B<83HR,85HR,83HA,83HT>
SW901 87-A91-369-010 SW,AC SL 2 2 2
CD MOTOR C.B
M1 SJ-310-060-1A0 MOTOR,FEED
SW1 S4-090-001-740 SW,LEAF
PN SJ-370-060-1A0 CONN,WAFER
*NOTE:<FD83>=83HR,83EZ,83HA,83HT <FD85>=85HR,85K,85EZ
D
G
S
2SK302
E C B
2SA1296
2SA1318
2SC1815
E C B
2SA933S
2SC1740S
2SC2001
DTC114TS
DTC124XS
B C E
2SB1370
B
E
C
2SA1162
2SC2712
2SC2714
DTA114YK
DTC114TK
DTC114YK
DTC144EKA
88
A
Resistor Code
Chip Resistor Part Coding
Figure
Value of resistor
Chip resistor
Wattage Type Tolerance
1/16W
1/10W
1/8W
1608
2125
3216
5%
5%
5%
CJ
CJ
CJ
Form
LW t
1.6 0.8 0.45
2 1.25 0.45
3.2
1.6
108
118
128
: A
: A
CHIP RESISTOR PART CODE
0.55
Resistor Code
Dimensions (mm)
Symbol
1/16W 1005 5% CJ
1.0 0.5 0.35 104
L
t
W
!
!
!
TRANSISTOR ILLUSTRATION
!
