Aiwa CSD-FD85 User Manual

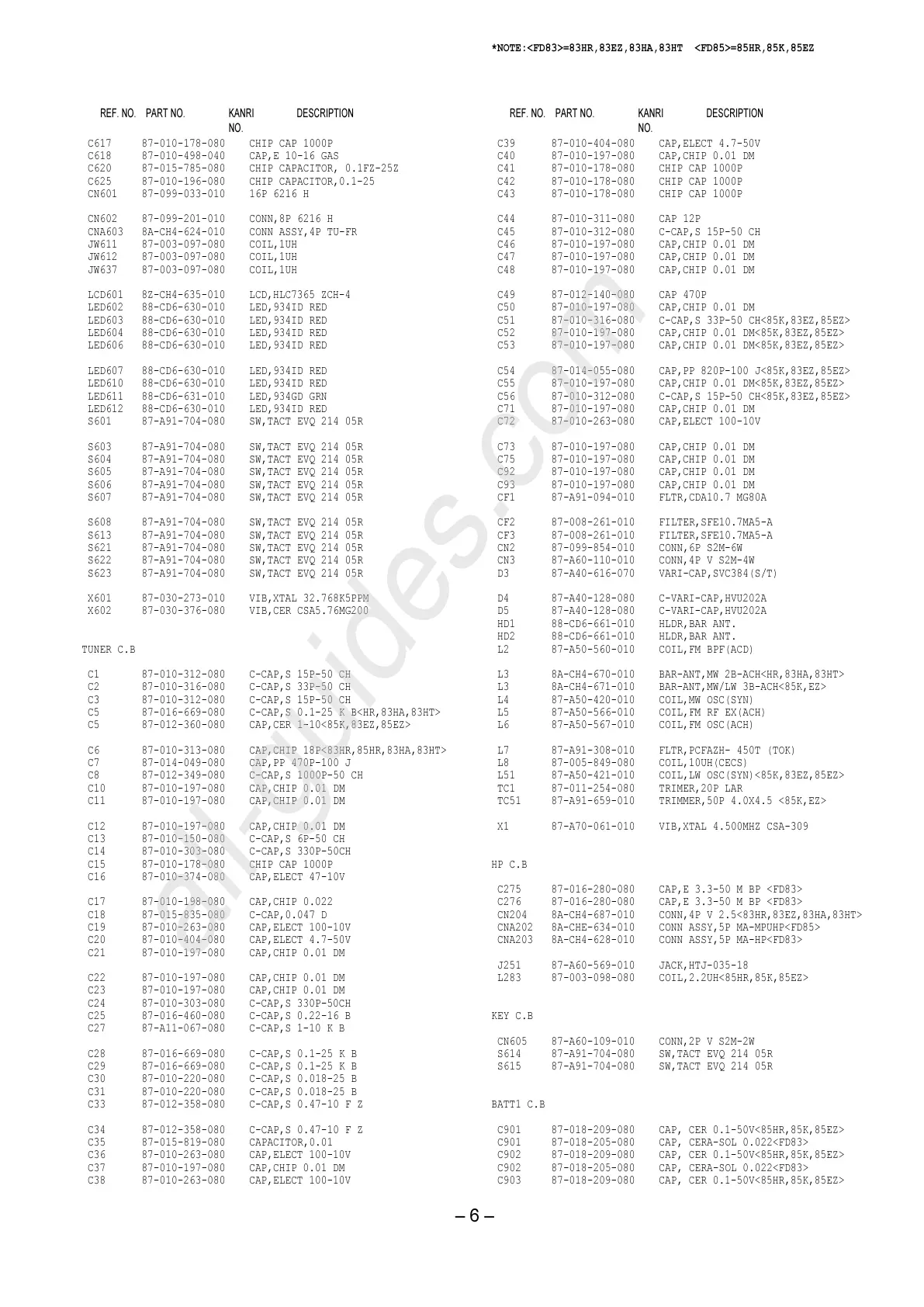

DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
 6 
C617 87-010-178-080 CHIP CAP 1000P
C618 87-010-498-040 CAP,E 10-16 GAS
C620 87-015-785-080 CHIP CAPACITOR, 0.1FZ-25Z
C625 87-010-196-080 CHIP CAPACITOR,0.1-25
CN601 87-099-033-010 16P 6216 H
CN602 87-099-201-010 CONN,8P 6216 H
CNA603 8A-CH4-624-010 CONN ASSY,4P TU-FR
JW611 87-003-097-080 COIL,1UH
JW612 87-003-097-080 COIL,1UH
JW637 87-003-097-080 COIL,1UH
LCD601 8Z-CH4-635-010 LCD,HLC7365 ZCH-4
LED602 88-CD6-630-010 LED,934ID RED
LED603 88-CD6-630-010 LED,934ID RED
LED604 88-CD6-630-010 LED,934ID RED
LED606 88-CD6-630-010 LED,934ID RED
LED607 88-CD6-630-010 LED,934ID RED
LED610 88-CD6-630-010 LED,934ID RED
LED611 88-CD6-631-010 LED,934GD GRN
LED612 88-CD6-630-010 LED,934ID RED
S601 87-A91-704-080 SW,TACT EVQ 214 05R
S603 87-A91-704-080 SW,TACT EVQ 214 05R
S604 87-A91-704-080 SW,TACT EVQ 214 05R
S605 87-A91-704-080 SW,TACT EVQ 214 05R
S606 87-A91-704-080 SW,TACT EVQ 214 05R
S607 87-A91-704-080 SW,TACT EVQ 214 05R
S608 87-A91-704-080 SW,TACT EVQ 214 05R
S613 87-A91-704-080 SW,TACT EVQ 214 05R
S621 87-A91-704-080 SW,TACT EVQ 214 05R
S622 87-A91-704-080 SW,TACT EVQ 214 05R
S623 87-A91-704-080 SW,TACT EVQ 214 05R
X601 87-030-273-010 VIB,XTAL 32.768K5PPM
X602 87-030-376-080 VIB,CER CSA5.76MG200
TUNER C.B
C1 87-010-312-080 C-CAP,S 15P-50 CH
C2 87-010-316-080 C-CAP,S 33P-50 CH
C3 87-010-312-080 C-CAP,S 15P-50 CH
C5 87-016-669-080 C-CAP,S 0.1-25 K B<HR,83HA,83HT>
C5 87-012-360-080 CAP,CER 1-10<85K,83EZ,85EZ>
C6 87-010-313-080 CAP,CHIP 18P<83HR,85HR,83HA,83HT>
C7 87-014-049-080 CAP,PP 470P-100 J
C8 87-012-349-080 C-CAP,S 1000P-50 CH
C10 87-010-197-080 CAP,CHIP 0.01 DM
C11 87-010-197-080 CAP,CHIP 0.01 DM
C12 87-010-197-080 CAP,CHIP 0.01 DM
C13 87-010-150-080 C-CAP,S 6P-50 CH
C14 87-010-303-080 C-CAP,S 330P-50CH
C15 87-010-178-080 CHIP CAP 1000P
C16 87-010-374-080 CAP,ELECT 47-10V
C17 87-010-198-080 CAP,CHIP 0.022
C18 87-015-835-080 C-CAP,0.047 D
C19 87-010-263-080 CAP,ELECT 100-10V
C20 87-010-404-080 CAP,ELECT 4.7-50V
C21 87-010-197-080 CAP,CHIP 0.01 DM
C22 87-010-197-080 CAP,CHIP 0.01 DM
C23 87-010-197-080 CAP,CHIP 0.01 DM
C24 87-010-303-080 C-CAP,S 330P-50CH
C25 87-016-460-080 C-CAP,S 0.22-16 B
C27 87-A11-067-080 C-CAP,S 1-10 K B
C28 87-016-669-080 C-CAP,S 0.1-25 K B
C29 87-016-669-080 C-CAP,S 0.1-25 K B
C30 87-010-220-080 C-CAP,S 0.018-25 B
C31 87-010-220-080 C-CAP,S 0.018-25 B
C33 87-012-358-080 C-CAP,S 0.47-10 F Z
C34 87-012-358-080 C-CAP,S 0.47-10 F Z
C35 87-015-819-080 CAPACITOR,0.01
C36 87-010-263-080 CAP,ELECT 100-10V
C37 87-010-197-080 CAP,CHIP 0.01 DM
C38 87-010-263-080 CAP,ELECT 100-10V
C39 87-010-404-080 CAP,ELECT 4.7-50V
C40 87-010-197-080 CAP,CHIP 0.01 DM
C41 87-010-178-080 CHIP CAP 1000P
C42 87-010-178-080 CHIP CAP 1000P
C43 87-010-178-080 CHIP CAP 1000P
C44 87-010-311-080 CAP 12P
C45 87-010-312-080 C-CAP,S 15P-50 CH
C46 87-010-197-080 CAP,CHIP 0.01 DM
C47 87-010-197-080 CAP,CHIP 0.01 DM
C48 87-010-197-080 CAP,CHIP 0.01 DM
C49 87-012-140-080 CAP 470P
C50 87-010-197-080 CAP,CHIP 0.01 DM
C51 87-010-316-080 C-CAP,S 33P-50 CH<85K,83EZ,85EZ>
C52 87-010-197-080 CAP,CHIP 0.01 DM<85K,83EZ,85EZ>
C53 87-010-197-080 CAP,CHIP 0.01 DM<85K,83EZ,85EZ>
C54 87-014-055-080 CAP,PP 820P-100 J<85K,83EZ,85EZ>
C55 87-010-197-080 CAP,CHIP 0.01 DM<85K,83EZ,85EZ>
C56 87-010-312-080 C-CAP,S 15P-50 CH<85K,83EZ,85EZ>
C71 87-010-197-080 CAP,CHIP 0.01 DM
C72 87-010-263-080 CAP,ELECT 100-10V
C73 87-010-197-080 CAP,CHIP 0.01 DM
C75 87-010-197-080 CAP,CHIP 0.01 DM
C92 87-010-197-080 CAP,CHIP 0.01 DM
C93 87-010-197-080 CAP,CHIP 0.01 DM
CF1 87-A91-094-010 FLTR,CDA10.7 MG80A
CF2 87-008-261-010 FILTER,SFE10.7MA5-A
CF3 87-008-261-010 FILTER,SFE10.7MA5-A
CN2 87-099-854-010 CONN,6P S2M-6W
CN3 87-A60-110-010 CONN,4P V S2M-4W
D3 87-A40-616-070 VARI-CAP,SVC384(S/T)
D4 87-A40-128-080 C-VARI-CAP,HVU202A
D5 87-A40-128-080 C-VARI-CAP,HVU202A
HD1 88-CD6-661-010 HLDR,BAR ANT.
HD2 88-CD6-661-010 HLDR,BAR ANT.
L2 87-A50-560-010 COIL,FM BPF(ACD)
L3 8A-CH4-670-010 BAR-ANT,MW 2B-ACH<HR,83HA,83HT>
L3 8A-CH4-671-010 BAR-ANT,MW/LW 3B-ACH<85K,EZ>
L4 87-A50-420-010 COIL,MW OSC(SYN)
L5 87-A50-566-010 COIL,FM RF EX(ACH)
L6 87-A50-567-010 COIL,FM OSC(ACH)
L7 87-A91-308-010 FLTR,PCFAZH- 450T (TOK)
L8 87-005-849-080 COIL,10UH(CECS)
L51 87-A50-421-010 COIL,LW OSC(SYN)<85K,83EZ,85EZ>
TC1 87-011-254-080 TRIMER,20P LAR
TC51 87-A91-659-010 TRIMMER,50P 4.0X4.5 <85K,EZ>
X1 87-A70-061-010 VIB,XTAL 4.500MHZ CSA-309
HP C.B
C275 87-016-280-080 CAP,E 3.3-50 M BP <FD83>
C276 87-016-280-080 CAP,E 3.3-50 M BP <FD83>
CN204 8A-CH4-687-010 CONN,4P V 2.5<83HR,83EZ,83HA,83HT>
CNA202 8A-CHE-634-010 CONN ASSY,5P MA-MPUHP<FD85>
CNA203 8A-CH4-628-010 CONN ASSY,5P MA-HP<FD83>
J251 87-A60-569-010 JACK,HTJ-035-18
L283 87-003-098-080 COIL,2.2UH<85HR,85K,85EZ>
KEY C.B
CN605 87-A60-109-010 CONN,2P V S2M-2W
S614 87-A91-704-080 SW,TACT EVQ 214 05R
S615 87-A91-704-080 SW,TACT EVQ 214 05R
BATT1 C.B
C901 87-018-209-080 CAP, CER 0.1-50V<85HR,85K,85EZ>
C901 87-018-205-080 CAP, CERA-SOL 0.022<FD83>
C902 87-018-209-080 CAP, CER 0.1-50V<85HR,85K,85EZ>
C902 87-018-205-080 CAP, CERA-SOL 0.022<FD83>
C903 87-018-209-080 CAP, CER 0.1-50V<85HR,85K,85EZ>
*NOTE:<FD83>=83HR,83EZ,83HA,83HT <FD85>=85HR,85K,85EZ
