Rear Panel

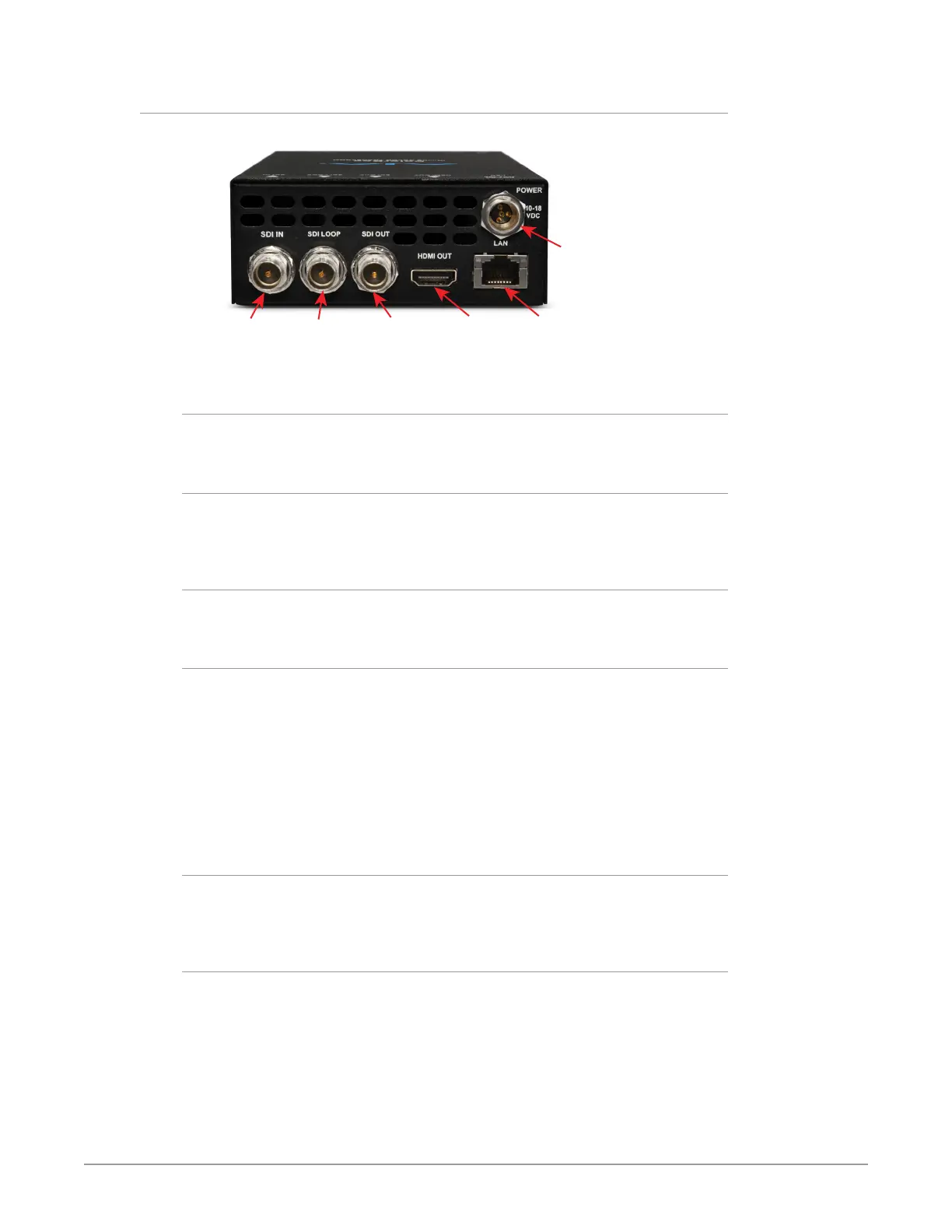

Figure 3. ColorBox Rear View
SDI BNC
Loop Output
HDMI
Output
DC
Power
Input
Ethernet
LAN Port
SDI BNC
Input
SDI BNC
Output
SDI BNC Input
12G-SDI video Input to the ColorBox's internal Color Processing Pipeline.
SDI Video Loop Output
12G-SDI video loop output of the SDI BNC Input, with no color processing or
overlay.
SDI BNC Output
12G-SDI Video Output, including color processing and overlay unless bypassed.
HDMI Video Output
HDMI Video Output (v2.0b), including color processing and overlay unless
bypassed.
NOTE: The ColorBox HDMI output uses these settings when outputting an HDR (HLG or
PQ) signal.
• Display Mastering Luminance: Min 0.0050, Max 4000
• MaxCLL: 0
• MaxFALL: 0
LAN Port
10/100/1000 Mbps Ethernet port (RJ45 connector), including network
communications status LEDs.
Power
ColorBox requires a DC power input in the range of 10-18V DC. An AJA power
supply module is included with purchase. It accepts a 110-240VAC, 50/60Hz power
input and outputs +12V DC.
