Block Diagram

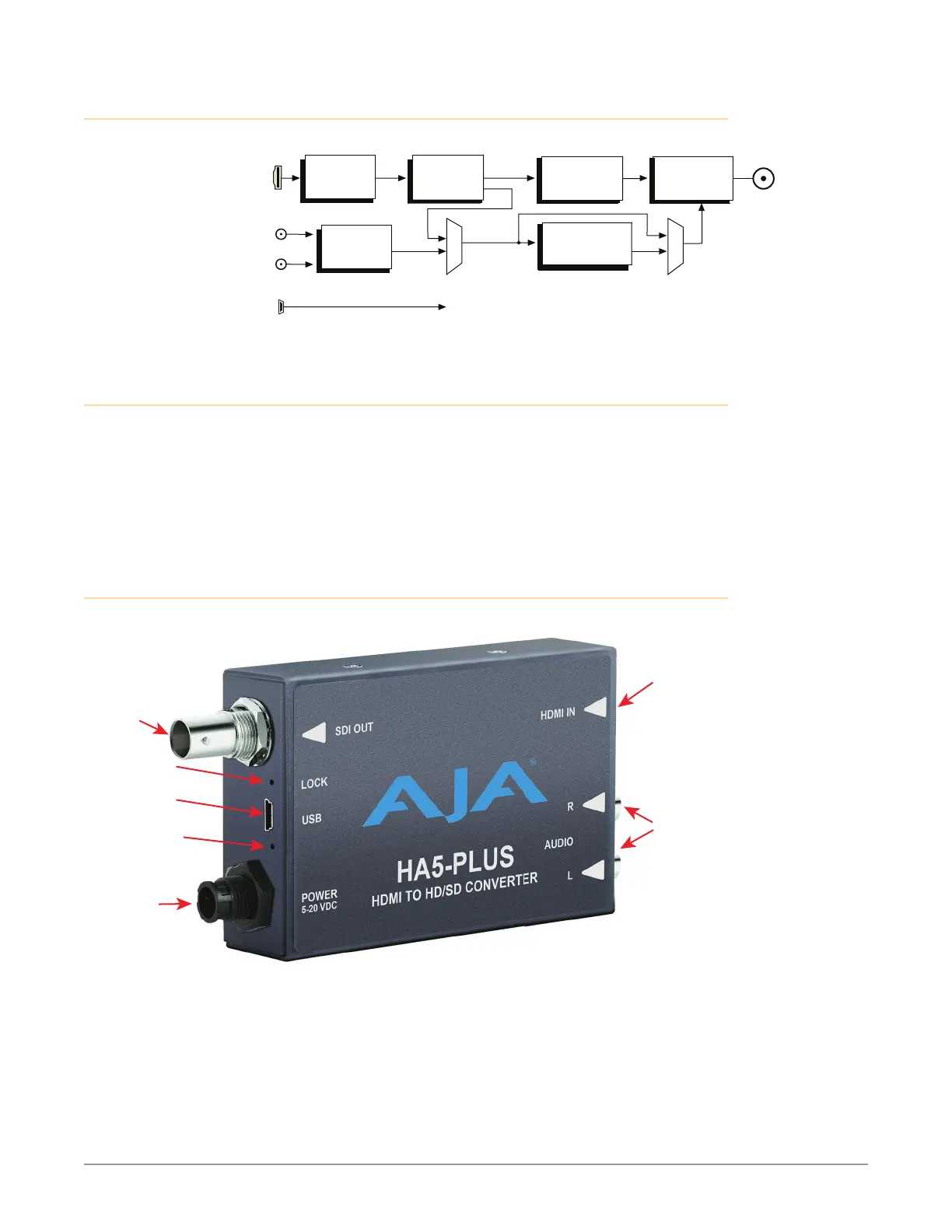

Figure 1. HA5-Plus Converter, Simplified Block Diagram
A/D
Converter
8 Channel
Audio Sample Rate
Converter
Embed
Audio
HDMI
Processing
HDMI
Receiver
HDMI Cable
Equalizer
HDMI
In
SDI ou
t
Analog
Audio In
1
(RCA)
Analog
Audio In
2
(RCA)
USB Port
(connec
t to
PC or Mac)
Video
Audio
MiniCong Control
Audio
The HA5-Plus converter supports 8 audio channels (4 stereo pairs) at 24-bit/48
kHz which it dis-embeds from HDMI and embeds into SDI. For proper embedding,
audio must be synchronous to video. If audio is not synchronous with video or
the sample rate is not 48 kHz, then Mini-Config must be used to set the Sample
Rate Converter to convert audio to 24-bit/48 kHz and then synchronize it with
input video before embedding.
I/O Connections
Figure 2. HA5-Plus Mini-Converter
DC Power
Input
HDMI
Input
Connector
SDI Output
BNC
Unbalanced
Analog Audio
Inputs
(2 RCA Jacks)
USB Port
Lock LED
Power LED
NOTE: The LOCK LED indicates valid input video by color. Off is no signal, green is SD, red
is HD.
