AJAX Button User Manual

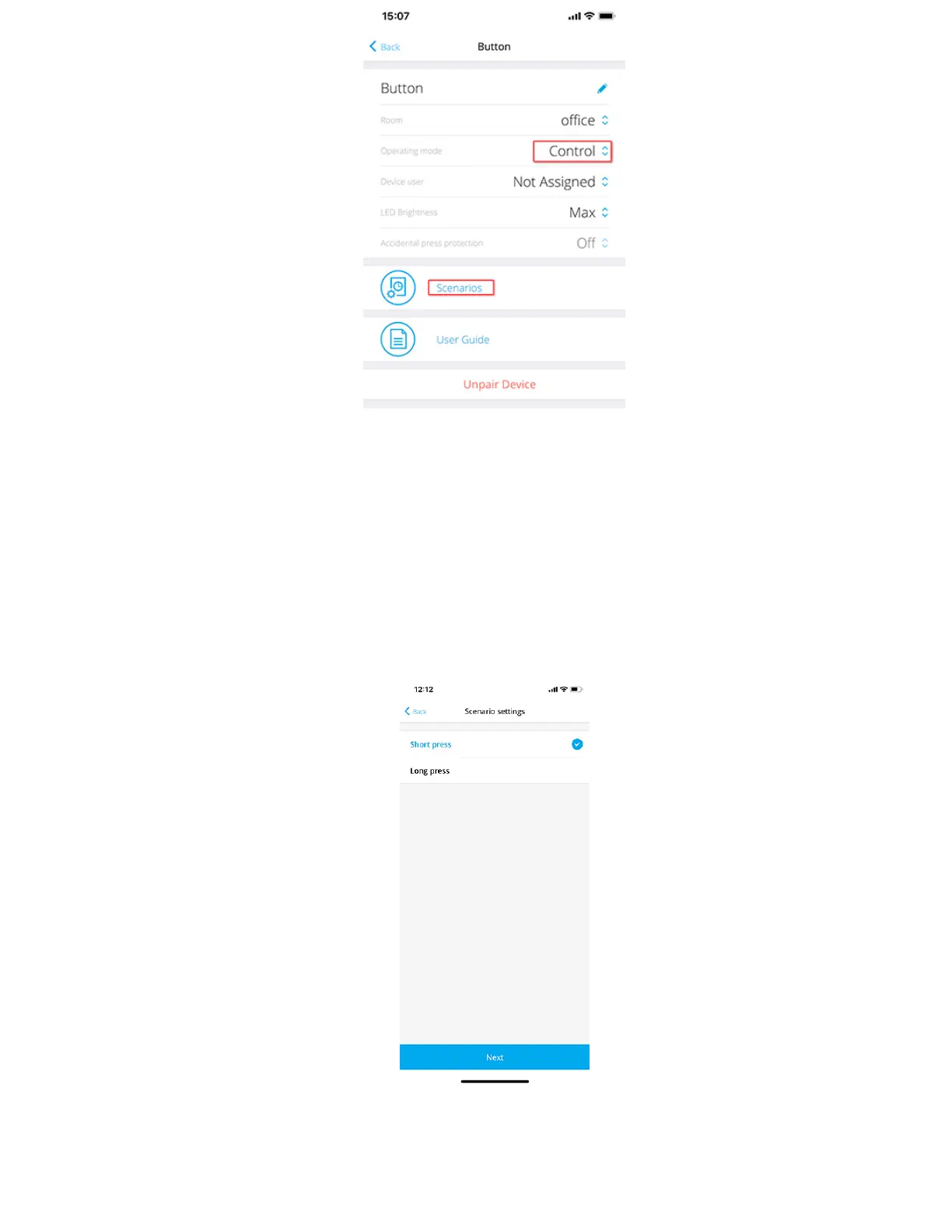

4. Click the Button to save the changes.
5. Go to the Scenarios menu and click Create scenario if you are creating a
scenario for the first time, or Add scenario if scenarios have already been
created in the security system.
. Select a pressing option to run the scenario: Short press or Long press.
7. Select the automation device to execute the action.

AJAX Button Specifications

General

Type	Wireless panic button
Communication Protocol	Jeweller
Power Supply	CR2032 battery
Battery Life	Up to 5 years
Weight	16 g
Water Resistance	IP54
Number of Buttons	1
Accidental Click Protection	Yes
Transmitter Power	Up to 20 mW
Modulation	GFSK
Operating Humidity	Up to 75%
Ingress Protection	IP54
Communication Range	Up to 1300 meters in open space
Operating Temperature Range	From -10°C to +40°C
Compatibility	Ajax hubs
Alarm Type	Panic
Communication Range with Central Unit	Up to 1300 m in an open space
Operating Frequency	868.0–868.6 MHz or 868.7 – 869.2 MHz, depending on the region
