Page #12 background imageLoading...
Page #12 background image

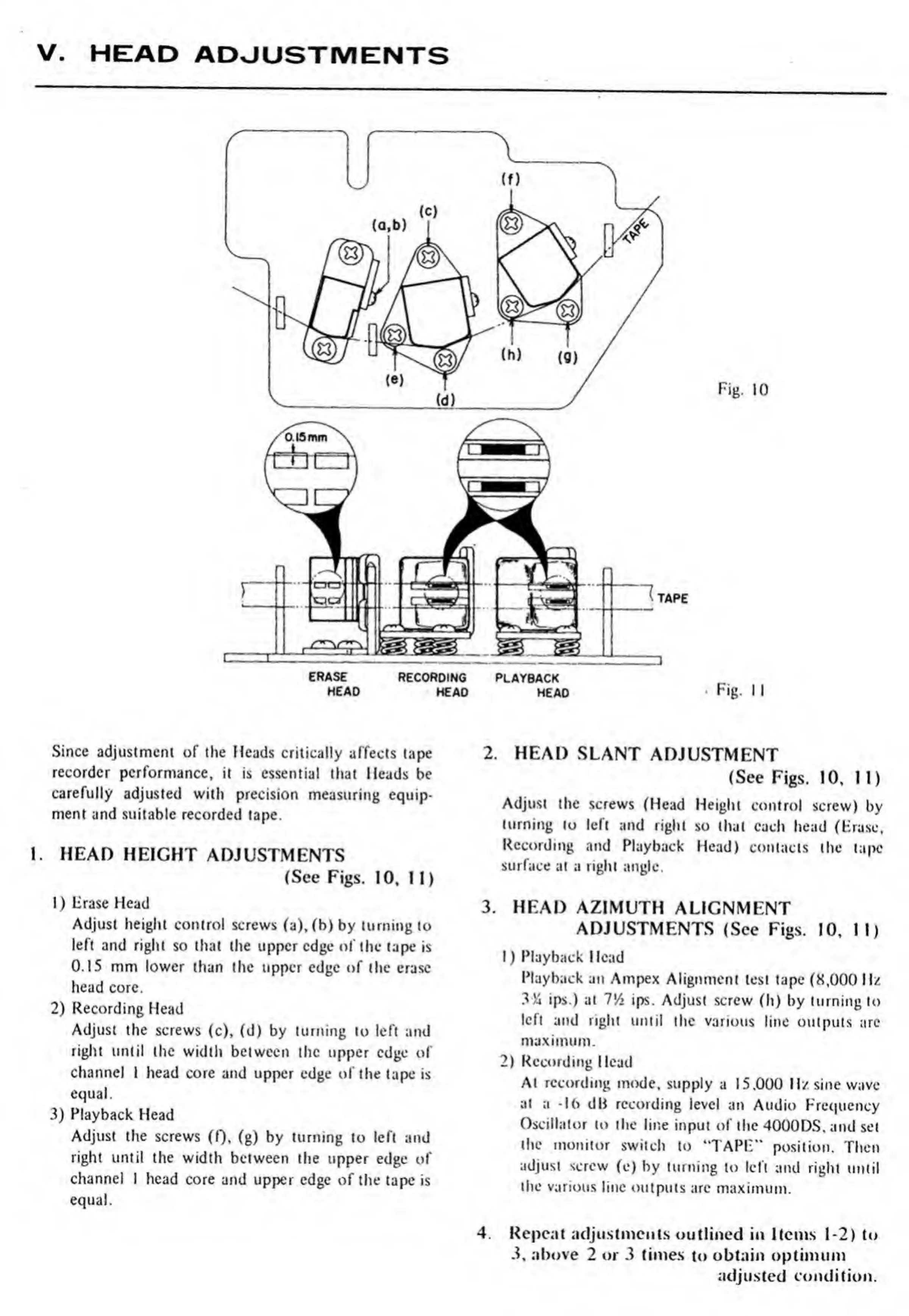

V.
HEAD
ADJUSTMENTS
ERASE
RECORDING
PLAYBACK
HEAD
HEAD
HEAD
•
Fig-
I
I
Since
adjustment
of
the
Meads
critically
affects
tape
recorder
performance,
it
is
essential
that
Heads
be
carefully
adjusted
with
precision
measuring
equip¬
ment
and
suitable
recorded
tape.
1.
H
EAD
HEIGHT
ADJUSTMENTS
(See
Figs.
10,
II)
1)
Erase
Head
Adjust
height
control
screws
(a),
(b)
by
turning
to
left
and
right
so
that
the
upper
edge
of
the
tape
is
0.15
mm
lower
than
the
upper
edge
of
the
erase
head
core.
2)
Recording
Head
Adjust
the
screws
(c),
(d)
by
turning
to
left
and
right
until
the
width
between
the
upper
edge
of
channel
1
head
core
and
upper
edge
of
the
tape
is
equal.
3)
Playback
Head
Adjust
the
screws
(f),
(g)
by
turning
to
left
and
right
until
the
width
between
the
upper
edge
of
channel
1
head
core
and
upper
edge
of
the
tape
is
equal.
2.
HEAD
SLANT
ADJUSTMENT
(See
Figs.
10,
11)
Adjust
the
screws
(Head
Height
control
screw)
by
turning
to
left
and
right
so
that
each
head
(Erase,
Recording
and
Playback
Head)
contacts
the
tape
surface
at
a
right
angle.
3.
HEAD
AZIMUTH
ALIGNMENT
ADJUSTMENTS
(See
Figs.
10,
II)
1)
Playback
I
lead
Playback
an
Ampex
Alignment
lest
tape
(8,000
Hz
345
ips.)
at
IVi
ips.
Adjust
screw
(h)
by
turning
to
left
and
right
until
the
various
line
outputs
are
maximum.
2)
Recording
Head
At
recording
mode,
supply
a
15.000
Hz
sine
wave
at
a
-16
dli
recording
level
an
Audio
Frequency
Oscillator
to
the
line
input
of
the
4000DS,and
set
the
monitor
switch
to
“TAPE”
position.
Then
adjust
screw
(e)
by
turning
to
left
and
right
until
the
various
line
outputs
arc
maximum.
4.
Repeat
adjustments
outlined
in
Items
1-2)
to
3,
above
2
or
3
times
to
obtain
optimum
adjusted
condition.
