I. DISASSEMBLY
1 · 1. REMOVE OF MAIN COVER
1) Remove the seven screws on back
and six screws on both sides.
2) Remove the MAIN COVER

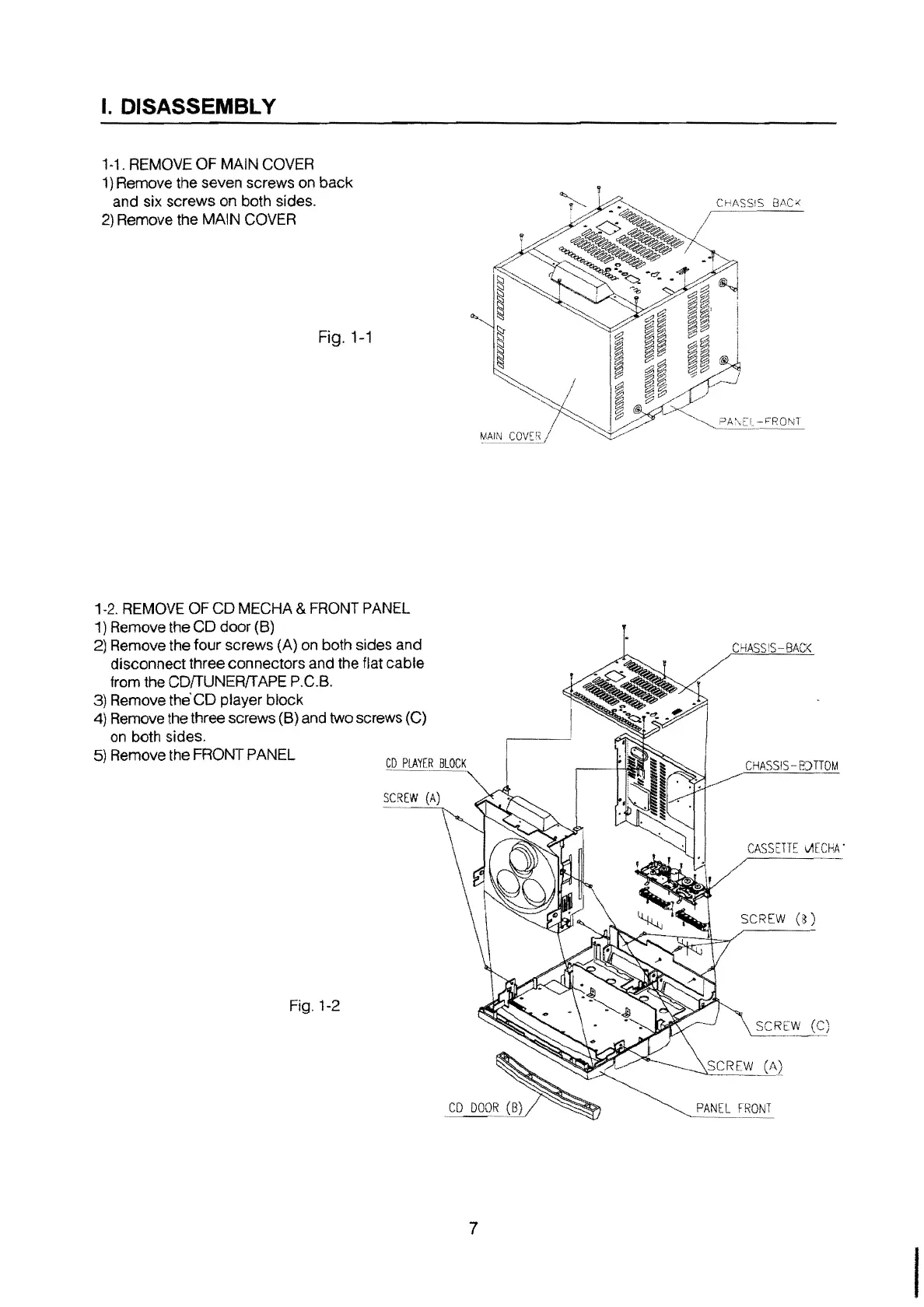

Fig. 1-1
1-2. REMOVE OF CD MECHA & FRONT PANEL
1) Remove the CD door (B)
2) Remove the
four screws (A) on both sides and
disconnect three connectors and the flat cable
from the CD{TUNER!f APE P.C.B.
3) Remove
the· CD player block
4) Remove the three screws (8) and two screws (C)
on both sides.
5) Remove the FRONT PANEL
CD PLAYER BLOCK
SCREW (A)
Fig. 1-2
CHASSIS i3AC'<
Ci-JASS'S-BAC<
CHASS!S-fDTTOM
CASSETTE v1ECHA ·
SCREW (B)
SCREW
7
