Installation
After Sales Support
1300 886 649 | info@tempo.org

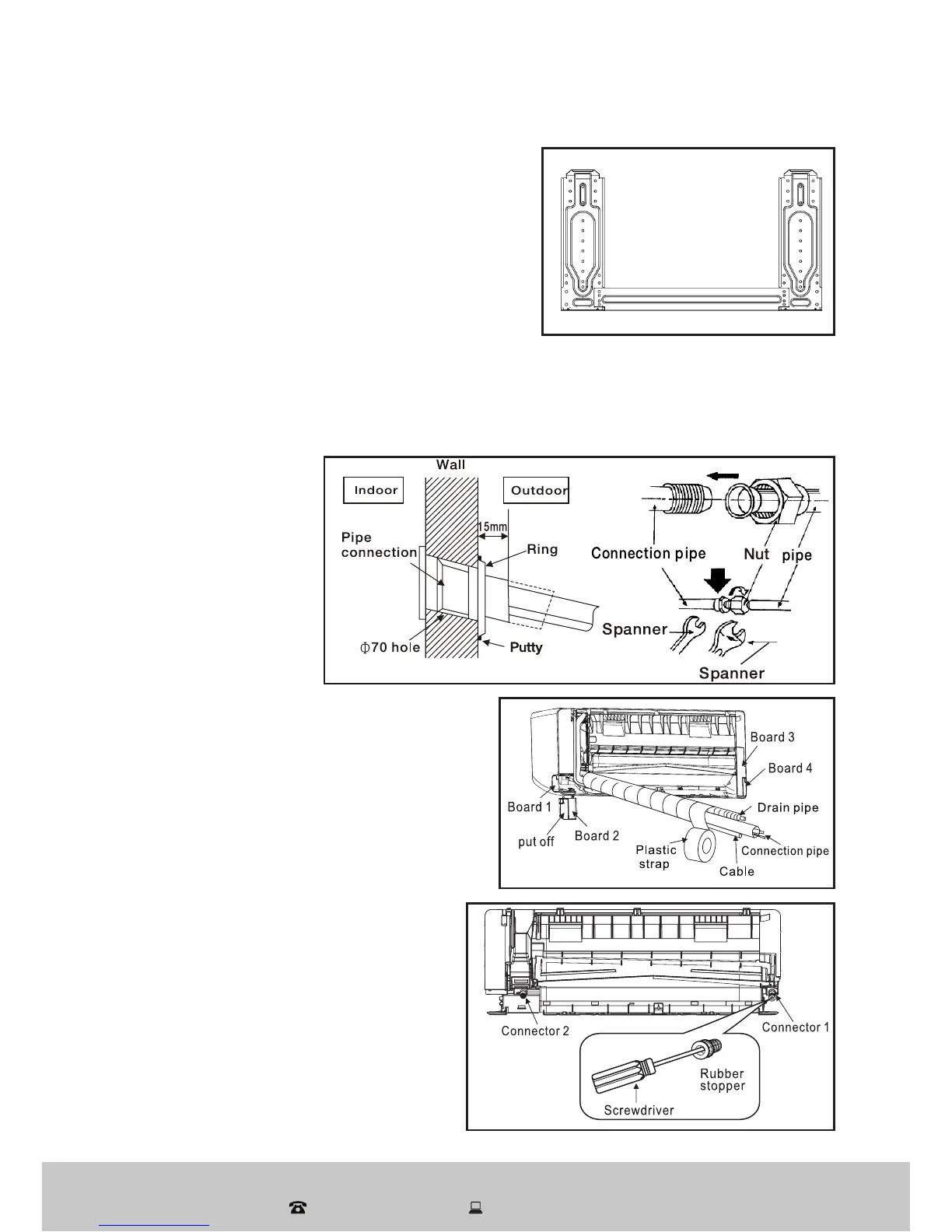

Installing the Indoor Unit
• First ensure the wall is strong and solid
enough to hold the unit safety.
• Attach the installation board to the wall using
4 (+) type screws. Use a spirit level to ensure
it is in a perfectly level position vertically and
horizontally, otherwise it might cause water
drops when the unit is cooling.
• Pull out the indoor unit pipes after detaching the fixed parts on them. Connect
the interconnected pipes to the indoor unit: point to the centre of the pipe and
fasten the connection screw, at first by hand and then by wrench, until you hear
a click sound. Fastening direction is shown in the picture below.
• Drill a 70mm
diameter pipe hole
(slanting slightly
outward) at the left
or right down side
of the installation
board.
• Before installation,
confirm the direction
of the connection
pipes. Remove Board 1 and Board 2 on
the correct connecting side. Press the
connection pipes to the board gap, then
install Board 2 to the original location.
If the connection pipes are on the other
side, install them as pictured.
• The drainage pipe can be connected
to Connector 1 and Connector 2. If it
is necessary to adjust the drainage
pipe to the other connector, remove
the rubber stopper from this side
and fix the drainage pipe to it, then
fix the rubber stopper to the other
connector to block it up.
• Note: To block up the connector, use
a tool like a screwdriver to plug the
rubber stopper into the connector, as
pictured.
