This Wi-Fi Reverse Cycle Split System Air Conditioner (9000 BTU) is made up
of an indoor and outdoor unit and a remote control (Fig. 1 & 2). The two units
are connected through properly insulated copper pipes (not supplied) and an
electrical connecting cable. The indoor unit is installed on a wall of the room
to be air conditioned. The outdoor unit is installed outdoors on the ground,
or on a wall on suitable brackets.
Installation hardware
(not pictured):
Connection pipe
Plastic strap
Pipe protection ring
Rubber feet
Luting (putty)
Documentation
(not pictured):
User manual,
Installation manual,
Certificates
Scope of Delivery

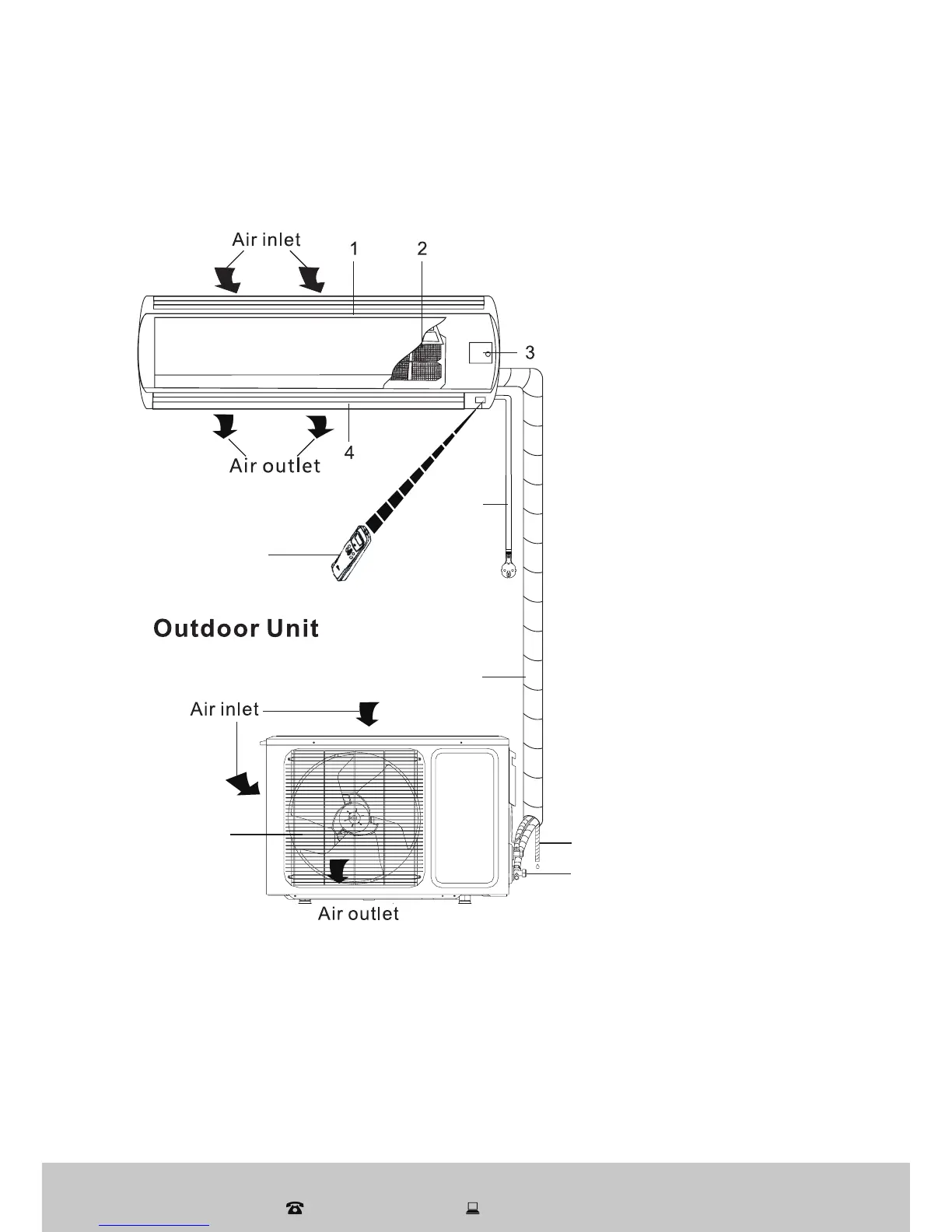

Indoor unit (Fig. 1)
1 Front panel
2 Air filter
3 LC display and
signal receptor
4 Louvres
5 Supply cord
6 Remote controller
(with 2 AAA
batteries and wall
holder)
Outdoor unit (Fig. 2)
7 Drain hose
8 Refrigerant gas/
liquid pipe
9 Cut-off valve
10 Air outlet cover
Note: If the power is supplied from the outdoor unit, the power supply cord is
fitted in the outdoor unit.
Product Overview
5
6
7
10
9
8
Fig. 1
Fig. 2
