Akai AP-M313

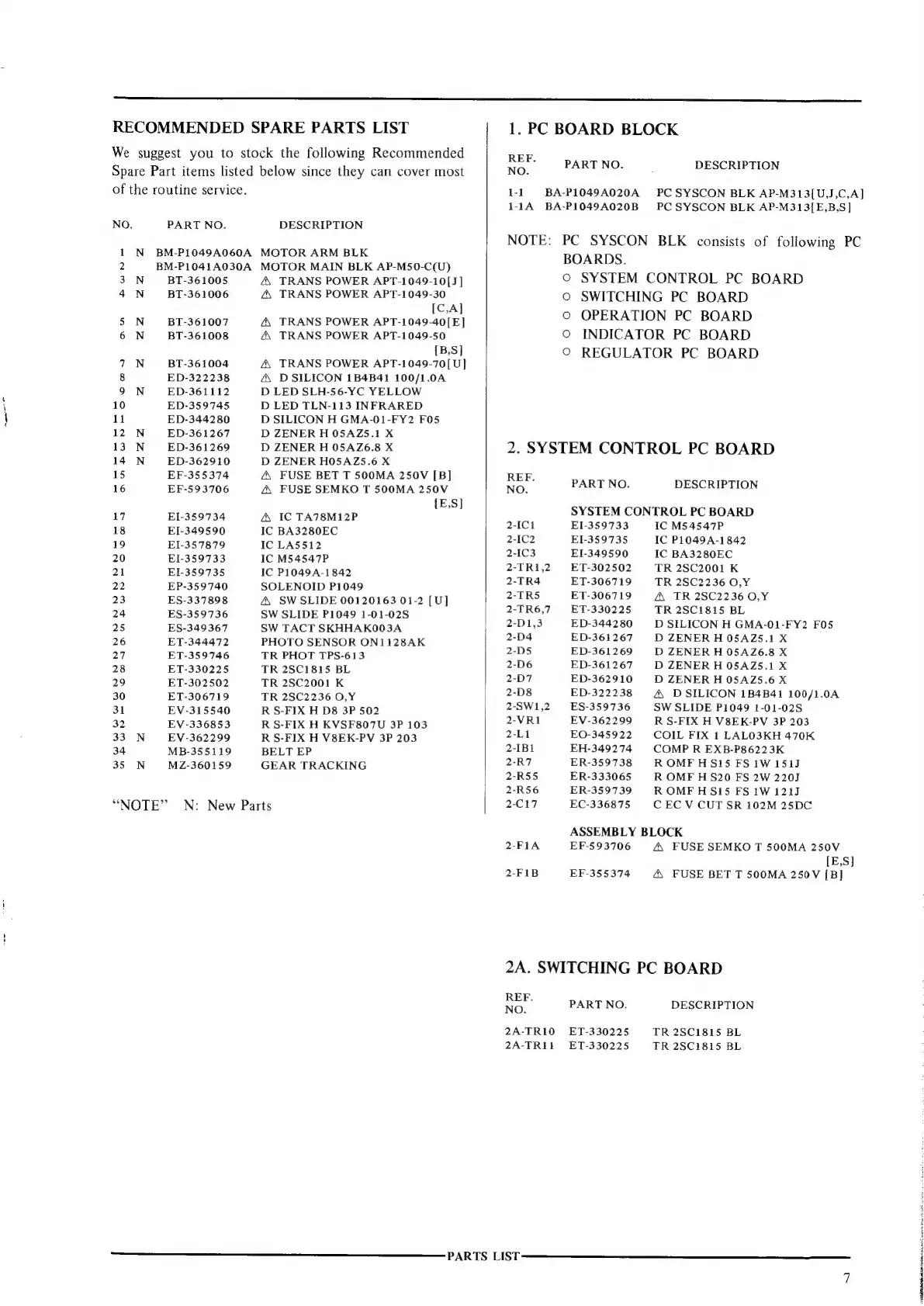

RECOMMENDED SPARE PARTS LIST
We suggest you to stock the following Recommended
Spare Part items listed below since they can cover most
of the routine service.
NO. PART NO. DESCRIPTION
1 N BM-P1049A060A MOTOR ARM BLK
2 BM-P1041A030A MOTOR MAIN BLK AP-MS50-C(U)
3°N BT-361005 4. TRANS POWER APT-1049-10[J]
4 N BT-361006 A. TRANS POWER APT-1049-30
[C,A]
5 oN BT-361007 A. TRANS POWER APT-1049-40[E]
6 N BT-361008 4. TRANS POWER APT-1049-50
[B,S]
7 N BT-361004 4. TRANS POWER APT-1049-70[U]
8 ED-322238 A. _D SILICON 1B4B41 100/1.0A
9 N ED-361112 D LED SLH-56-YC YELLOW
10 ED-359745 D LED TLN-113 INFRARED
11 ED-344280 D SILICON H GMA-01-FY2 F05
12. N ED-361267 D ZENER H 05AZS5.1 X
13 N ED-361269 D ZENER H 05AZ6.8 X
14.N ED-362910 D ZENER HOSAZS5.6 X
15 EF-355374 2. FUSE BET T 500MA 250V [B]
16 EF-593706 A, FUSE SEMKO T 500MA 250V
{E,S]
17 EI-359734 4 IC TA78M12P
18 EI-349590 IC BA3280EC
19 EI-357879 IC LAS512
20 EI-359733 IC M54547P
21 EI-359735 IC P1049A-1842
22 EP-359740 SOLENOID P1049
23 ES-337898 4 SW SLIDE 00120163 01-2 [U]
24 ES-359736 SW SLIDE P1049 1-01-02S
25 ES-349367 SW TACT SKHHAK003A
26 ET-344472 PHOTO SENSOR ON1128AK
27 ET-359746 TR PHOT TPS-613
28 ET-330225 TR 2SC1815 BL
29 ET-302502 TR 2SC2001 K
30 ET-306719 TR 28C2236 O,Y
31 EV-315540 R S-FIX H D8 3P 502
32 EV-336853 R S-FIX H KVSF807U 3P 103
33 N EV-362299 R S-FIX H V8EK-PV 3P 203
34 MB-355119 BELT EP
35 oN MZ-360159 GEAR TRACKING
“NOTE” N: New Parts
n= PARTS LIST
1. PC BOARD BLOCK
REF.
NO. PART NO. : DESCRIPTION
1-1 BA-P1049A020A PC SYSCON BLK AP-M313[U,J,C,A]
1-1A BA-P1049A020B PCSYSCON BLK AP-M313[E,B,S]
NOTE: PC SYSCON BLK consists of following PC
BOARDS.
© SYSTEM CONTROL PC BOARD
SWITCHING PC BOARD
OPERATION PC BOARD
INDICATOR PC BOARD
REGULATOR PC BOARD
QO 0 0.0
2. SYSTEM CONTROL PC BOARD
REF.
NO. PART NO. DESCRIPTION
SYSTEM CONTROL PC BOARD
2-IC1 EI-359733 IC MS54547P
2-IC2 EI-359735 IC P1049A-1842
2-I1C3 EI-349590 IC BA3280EC
2-TR1,2 ET-302502 TR 2SC2001 K
2-TR4 ET-306719 TR 28C2236 O,Y
2-TRS ET-306719 A TR 28C2236 O,Y
2-TR6,7 ET-330225 TR 2SC1815 BL
2-D1,3 ED-344280 D SILICON H GMA-01-FY2 F05
2-D4 ED-361267 D ZENER H 05AZS5.1 X
2-D5 ED-361269 D ZENER H 05AZ6.8 X
2-D6 ED-361267 D ZENER H 05AZ5.1 X
2-D7 ED-362910 D ZENER H 05AZ5.6 X
2-D8 ED-322238 4 D SILICON 1B4B41 100/1.0A
2-SW1,2 ES-359736 SW SLIDE P1049 1-01-02S
2-VR1 EV-362299 R S-FIX H V8EK-PV 3P 203
2-L1 EO-345922 COIL FIX 1 LALO3KH 470K
2-IB1 EH-349274 COMP R EXB-P86223K
2-R7 ER-359738 R OMFH S15 FS 1W 151)
2-RS5 ER-333065 R OMF H 820 FS 2W 220]
2-R56 ER-359739 R OMFH S15 FS 1W 121]
2-C17 EC-336875 CEC V CUT SR 102M 25DC
ASSEMBLY BLOCK
2-FiA EF-593706 4. FUSE SEMKO T 500MA 250V
[E,S]
2-F1B EF-355374 4, FUSE BET T 500MA 250V [B]
2A. SWITCHING PC BOARD
REF.
NO. PART NO. DESCRIPTION
2A-TRIO ET-330225 TR 28C1815 BL
2A-TR11 ET-330225 TR 28C1815 BL
%
