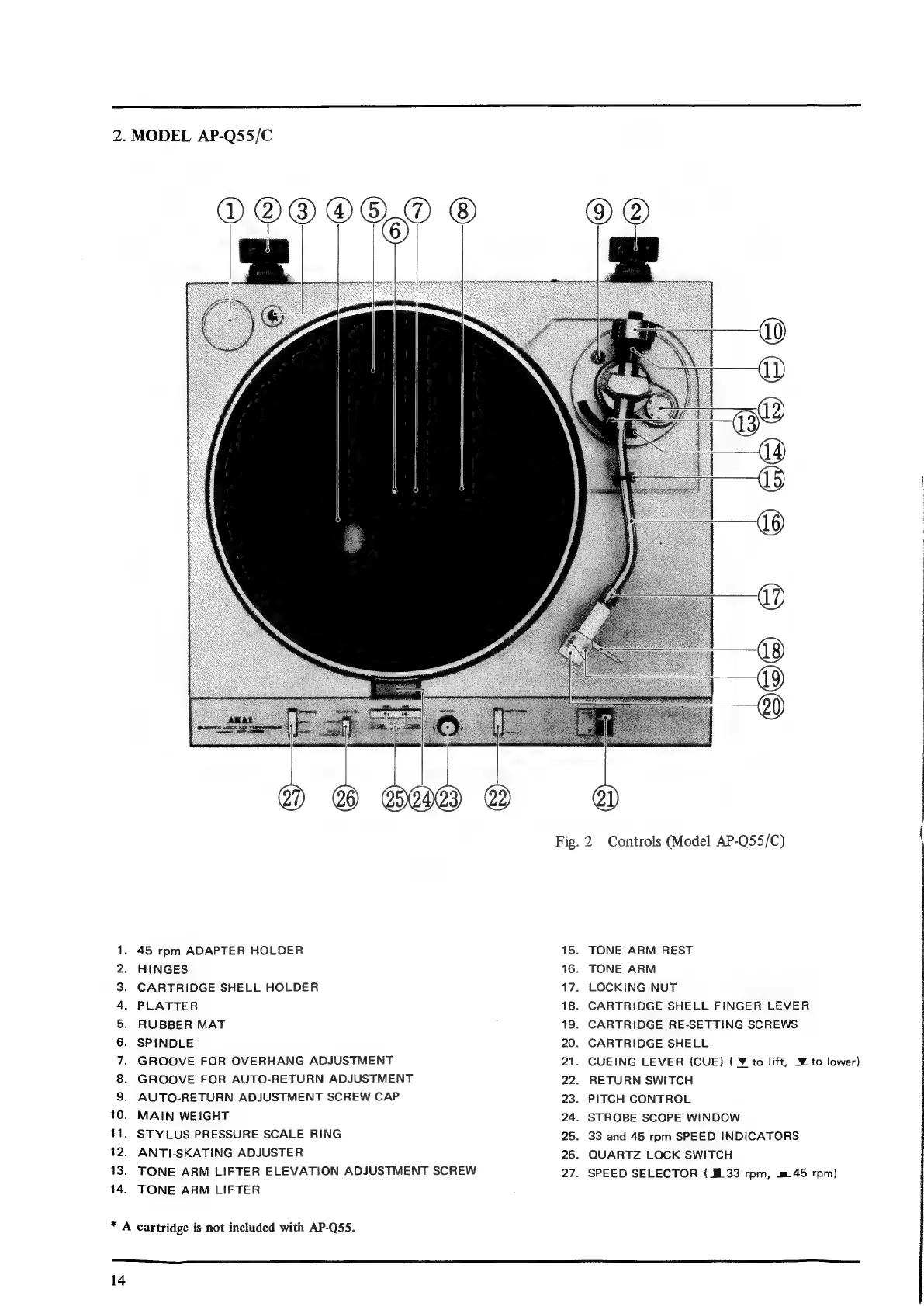

2. MODEL AP-Q55/C
cag OOD
SRORoRe)
©)
ww)
S)
Fig. 2 Controls (Model AP-Q55/C)
—
1. 45 rpm ADAPTER HOLDER 15. TONE ARM REST
2. HINGES 16. TONE ARM
3. CARTRIDGE SHELL HOLDER 17. LOCKING NUT
4. PLATTER 18. CARTRIDGE SHELL FINGER LEVER
5. RUBBER MAT 19. CARTRIDGE RE-SETTING SCREWS
6. SPINDLE 20. CARTRIDGE SHELL
7. GROOVE FOR OVERHANG ADJUSTMENT 21. CUEING LEVER (CUE) ( 9 to lift, to lower)
8. GROOVE FOR AUTO-RETURN ADJUSTMENT 22. RETURN SWITCH
9. AUTO-RETURN ADJUSTMENT SCREW CAP 23. PITCH CONTROL
10.
MAIN
WEIGHT
24.
STROBE
SCOPE
WINDOW
11. STYLUS PRESSURE SCALE RING 25. 33 and 45 rpm SPEED INDICATORS
12.
ANTI-SKATING
ADJUSTER
26.
QUARTZ
LOCK
SWITCH
13. TONE ARM LIFTER ELEVATION ADJUSTMENT SCREW 27. SPEED SELECTOR ($1.33 rpm, 45 rpm)
14. TONE ARM LIFTER
tA cartridge is not included with AP-Q55.
