Switch Read Lines
TRACK STOP
TRACK SELECT
SCENE LAUNCH
MUTE
SOLO
RECORD
A/B
DEVICE
MISC
MISC
CLIP LAUNCHES
ASSY N UMB ER:
123456
D
C
B
A
C
D
B
A
COM PANY :
TITL E:
PART N UMB ER:
FILE NAM E:
SCAL E:
RELE ASE D :
DRA WN: DA TED :
DAT ED:
SIZE :
SHEE T: OF

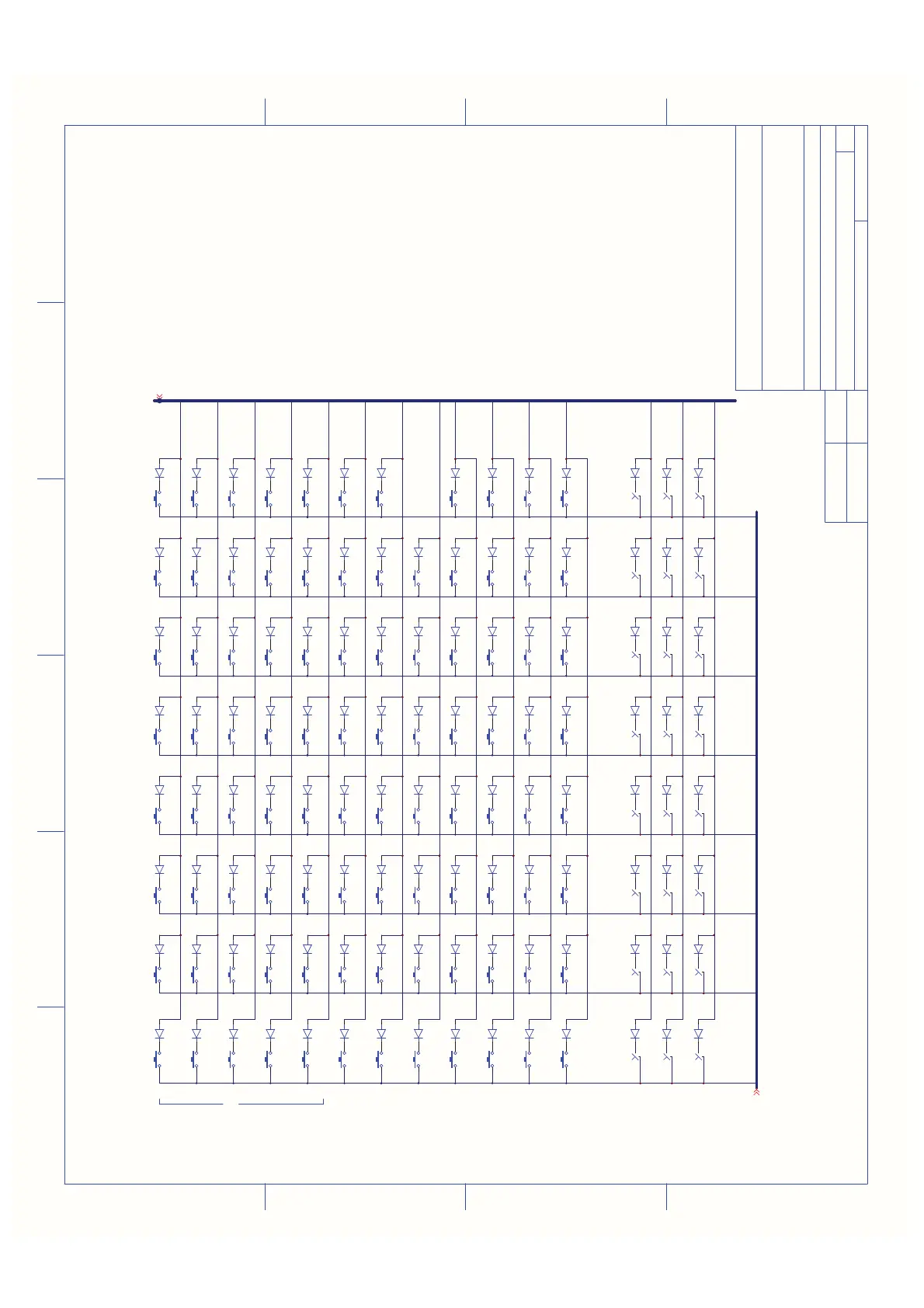

ADA5 TOP PANEL PCB
AKAI PROFESSIONAL
CAN
1N4148
D339
SW92
DEV-
1N4148
D433 SW93
DEV+
1N4148
D430 S W94
BANK-
1N4148
D431 SW95
BANK+
1N4148
D432 SW104
DEV ON/OFF
1N4148
D442 S W105
DEV LOCK
1N4148
D443
SW28
PAN
1N4148
D367 SW29
SENDS
1N4148
D366 S W30
USER
1N4148
D368 SW31
METRONOME
1N4148
D370
SW54
NUDGE-
1N4148
D393 SW56
NUDGE+
1N4148
D394 S W57
SHIFT
1N4148
D395 SW41
BANK LOCK
1N4148
D392 SW52
LEFT
1N4148
D382 SW53
RIGHT
1N4148
D390 SW51
UP
1N4148
D381 SW55
DOWN
1N4148
D383
SW108
PLAY
1N4148
D446 SW109
RECORD
1N4148
D447 SW110
AUTOMATION
1N4148
D448
SW106
CLIP/DEVICE
1N4148
D444 SW107
DETAIL
1N4148
D445
SW1
CL_1_1
1N4148
D340
SW2
CL_2_1
1N4148
D341
SW3
CL_3_1
1N4148
D342
SW4
CL_4_1
1N4148
D343
SW5
CL_5_1
1N4148
D344
SW6
CL_6_1
1N4148
D345
SW7
CL_7_1
1N4148
D346
SW8
CL_8_1
1N4148
D349
SW11
CL_2_2
1N4148
D350
SW12
CL_3_2
1N4148
D351
SW13
CL_4_2
1N4148
D352
SW14
CL_5_2
1N4148
D353
SW15
CL_6_2
1N4148
D354
SW16
CL_7_2
1N4148
D355
SW17
CL_8_2
1N4148
D358
SW20
CL_2_3
1N4148
D359
SW21
CL_3_3
1N4148
D360
SW22
CL_4_3
1N4148
D361
SW23
CL_5_3
1N4148
D362
SW24
CL_6_3
1N4148
D363
SW25
CL_7_3
1N4148
D364
SW26
CL_8_3
1N4148
D372
SW33
CL_2_4
1N4148
D373
SW34
CL_3_4
1N4148
D374
SW35
CL_4_4
1N4148
D375
SW36
CL_5_4
1N4148
D376
SW37
CL_6_4
1N4148
D377
SW38
CL_7_4
1N4148
D378
SW39
CL_8_4
1N4148
D385
SW43
CL_2_5
1N4148
D386
SW44
CL_3_5
1N4148
D387
SW45
CL_4_5
1N4148
D388
SW46
CL_5_5
1N4148
D389
SW47
CL_6_5
1N4148
D380
SW48
CL_7_5
1N4148
D379
SW49
CL_8_5
1N4148
D348
SW10
CL_1_2
1N4148
D357
SW19
CL_1_3
1N4148
D371
SW32
CL_1_4
1N4148
D384
SW42
CL_1_5
SW119
TAP TEMPO
1N4148
D70
1N4148
D45
SW9
TSTOP_1
1N4148
D78
SW18
TSTOP_2
1N4148
D131
SW27
TSTOP_3
1N4148
D160
SW40
TSTOP_4
1N4148
D169
SW50
TSTOP_5
1N4148
D320
SW58
TSTOP_6
1N4148
D321
SW59
TSTOP_7
1N4148
D322
SW60
TSTOP_8
1N4148
D331
SW61
TSEL_1
1N4148
D332
SW66
TSEL_2
1N4148
D333
SW71
TSEL_3
1N4148
D334
SW76
TSEL_4
1N4148
D335
SW81
TSEL_5
1N4148
D336
SW86
TSEL_6
1N4148
D337
SW91
TSEL_7
1N4148
D338
SW100
TSEL_8
1N4148
D347
SW65
SL_1
1N4148
D356
SW70
SL_2
1N4148
D365
SW75
SL_3
1N4148
D369
SW80
SL_4
1N4148
D391
SW85
SL_5
1N4148
D396
SW90
STOP ALL
1N4148
D397
SW99
MASTER
1N4148
D37
SW62
MUTE_2
1N4148
D38
SW63
MUTE_3
1N4148
D39
SW64
MUTE_4
1N4148
D40
SW67
MUTE_5
1N4148
D41
SW68
MUTE_6
1N4148
D42
SW69
MUTE_7
1N4148
D43
SW72
MUTE_8
1N4148
D44
SW73
MUTE_1
1N4148
D398
SW74
SOLO_1
1N4148
D399
SW77
SOLO_2
1N4148
D400
SW78
SOLO_3
1N4148
D401
SW79
SOLO_4
1N4148
D402
SW82
SOLO_5
1N4148
D403
SW83
SOLO_6
1N4148
D404
SW84
SOLO_7
1N4148
D405
SW87
SOLO_8
1N4148
D406
SW88
REC_1
1N4148
D407
SW89
REC_2
1N4148
D408
SW96
REC_3
1N4148
D409
SW97
REC_4
1N4148
D410
SW98
REC_5
1N4148
D411
SW101
REC_6
1N4148
D412
SW102
REC_7
1N4148
D413
SW103
REC_8
1N4148
D414
SW111
AB_1
1N4148
D415
SW112
AB_2
1N4148
D416
SW113
AB_3
1N4148
D417
SW114
AB_4
1N4148
D418
SW115
AB_5
1N4148
D419
SW116
AB_6
1N4148
D420
SW117
AB_7
1N4148
D421
SW118
AB_8
SW-RET13
SW-RET12
SW-RET11
SW-RET10
SW-RET9
SW-RET8
SW-RET7
SW-RET6
SW-RET5
SW-DRV0
SW-RET0
SW-DRV1
SW-RET1
SW-DRV2
SW-RET2
SW-RET3
SW-DRV3
SW-DRV4
SW-RET4
SW-DRV5
SW-DRV6
SW-RET14
SW-DRV7
SW-DRV[0..7]
SW-RET[0..14]
Copyright 2013 - Akai Professional
ADA5TP102A.sch
9/13/2013
Switch Enable Lines
ABBREVIATIONS
CL_X_Y = Clip Launch, Col X, Row Y
TSTOP_X = Track Stop, Col X
TSEL_X = Track Select, Col X
MUTE_X = Mute, Col X
SOLO_X = Solo/Cue, Col X
REC_X = Record, Col X
SL_X = Scene Launch, Col X
AB_X = A/B Assign, Col X
3 6
