DISASSEMBLY PROCEDURES

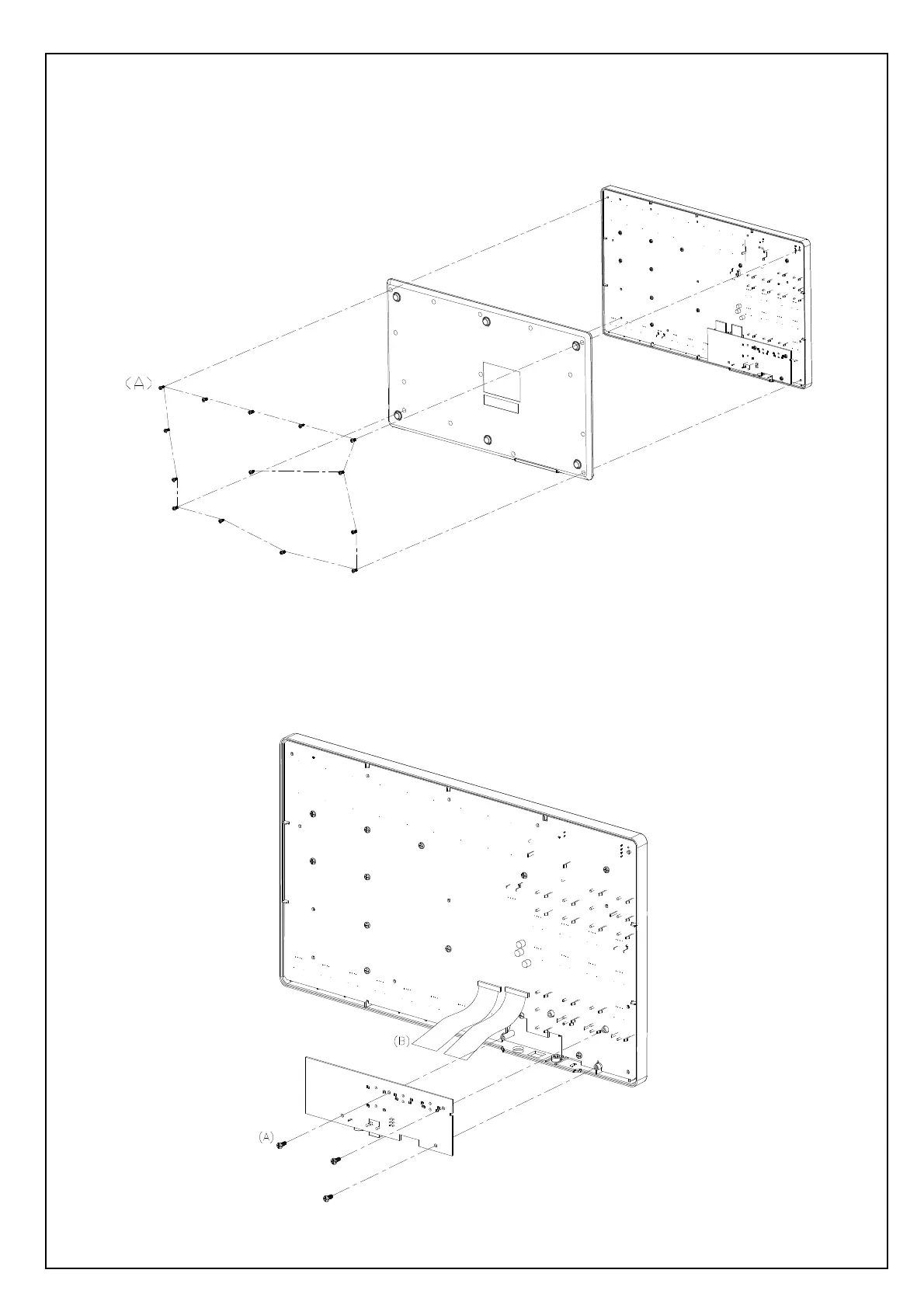

1. DISASSEMBLE THE BOTTOM PANEL. (Fig.1)
(A) REMOVE 14 SCREWS FROM BOTTOM PANEL.
(Fig.1)
2. DISASSEMBLE THE MAIN PCB ASS’Y. (Fig.2)
(A) REMOVE 3 SCREWS FROM THE MAIN PCB ASS’Y.
(B) REMOVE 2 CABLES.
(Fig.2)
