Akai AX-M430 Service Manual

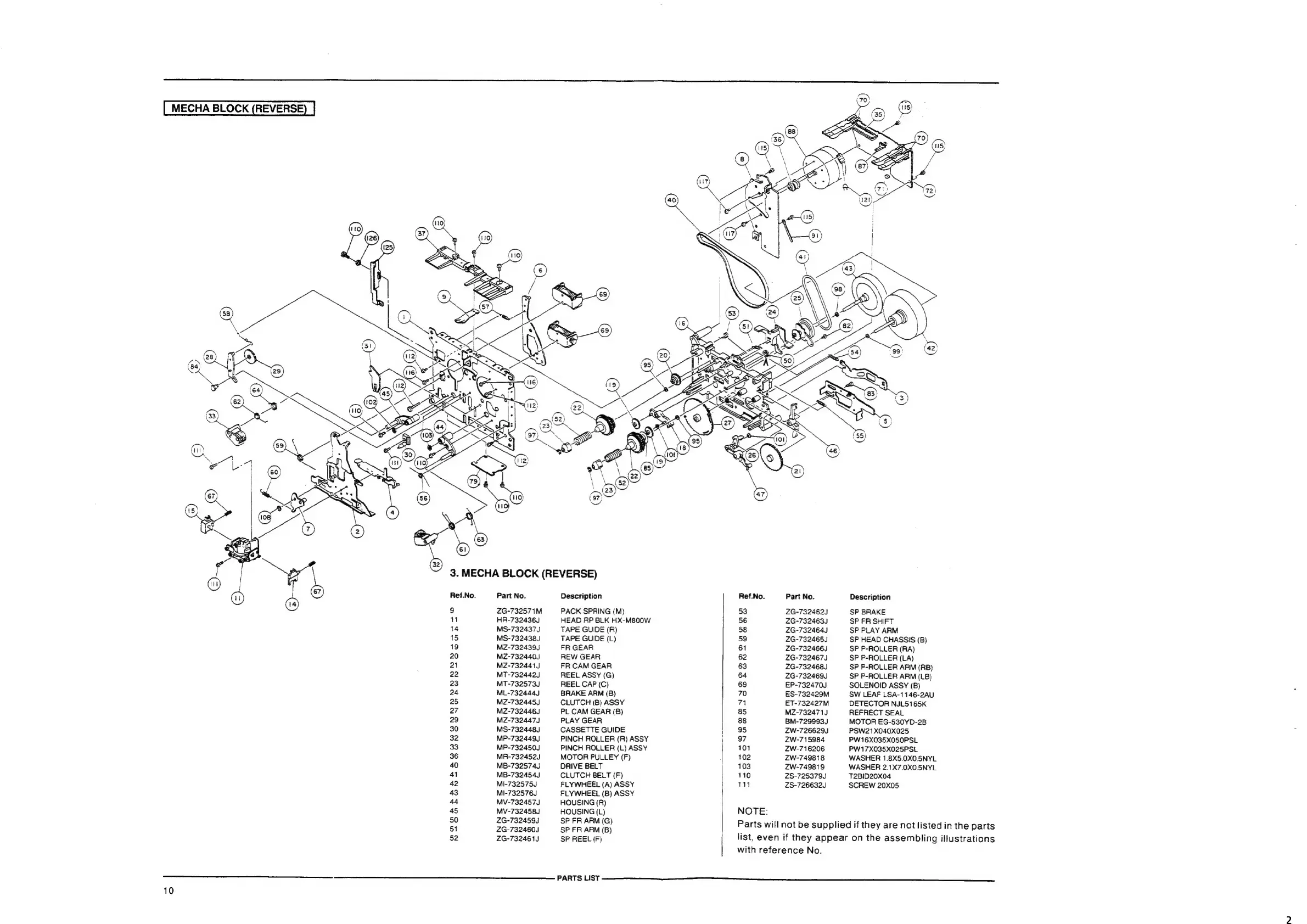

MECHA BLOCK (REVERSE
3. MECHA BLOCK (REVERSE)
Ref.No. Part No.
] ZG-732571M
im HR-732436J
14 MS-732437J
15 MS-732438J
19 MZ-7324395
20 MZ-732440J
21 MZ-732441J
22 MT-732442J
23 MT-732573J
24 ML-732444J
25 MZ-732445J
27 M2-732446J
29 MZ-732447J
30 MS-7324485
32 MP-732449J
33 MP-732450J
36 MR-732452J
40 MB-732574J
41 MB-732454J
42 MI-7325755
43 MI-732576J
44 MV-732457J
45 MV-732458)
50 ZG-732459J
51 ZG-732460J
52 ZG-732461J
10
Description
PACK SPRING (M)
HEAD RP BLK HX-M800W
TAPE GUIDE (R)
TAPE GUIDE (L)
FR GEAR
REW GEAR
FR CAM GEAR
REEL ASSY (G)
REEL CAP (C)
BRAKE ARM (B)
CLUTCH (B) ASSY
PL CAM GEAR (B)
PLAY GEAR
CASSETTE GUIDE
PINCH ROLLER (R) ASSY
PINCH ROLLER (L) ASSY
MOTOR PULLEY (F)
DRIVE BELT
CLUTCH BELT (F)
FLYWHEEL (A) ASSY
FLYWHEEL (8) ASSY
HOUSING (R)
HOUSING (L)
SP FR ARM (G)
SP FR ARM (B)
SP REEL (F)
Part No. Description
53 2G-732462J SP BRAKE
56 ZG-732463J SP FR SHIFT
58 2G-732464J SP PLAY ARM
59 Z2G-732465J SP HEAD CHASSIS (B}
61 ZG-732466J SP P-ROLLER (RA)
62 2G-732467J SP P-ROLLER (LA)
63 ZG-732468J SP P-ROLLER ARM (RB)
64 2G-732463J SP P-ROLLER ARM (LB)
69 EP-732470J SOLENOID ASSY (B)
70 ES-732429M SW LEAF LSA-1146-2AU
71 ET-732427M DETECTOR NJL5165K
85 M2Z-732471J REFRECT SEAL
88 BM-729993J MOTOR EG-530YD-2B8
95 ZW-726629J PSW21X040X025
97 ZW-7 15984 PW16X035X0S50PSL
101 ZW-716206 PW17X035X025PSL
102 ZW-749818 WASHER 1.8X5.0X0.5NYL
103 ZW-749819 WASHER 2.1X7.0X0.5NYL
110 2S-725379J T2B1D20X04
11 ZS-726632J SCREW 20X05
NOTE:
Parts will not be supplied if they are not listed in the parts
list, even if they appear on the assembling illustrations
with reference No.
PARTS
UST
—————$
