Akai AX-M430 Service Manual

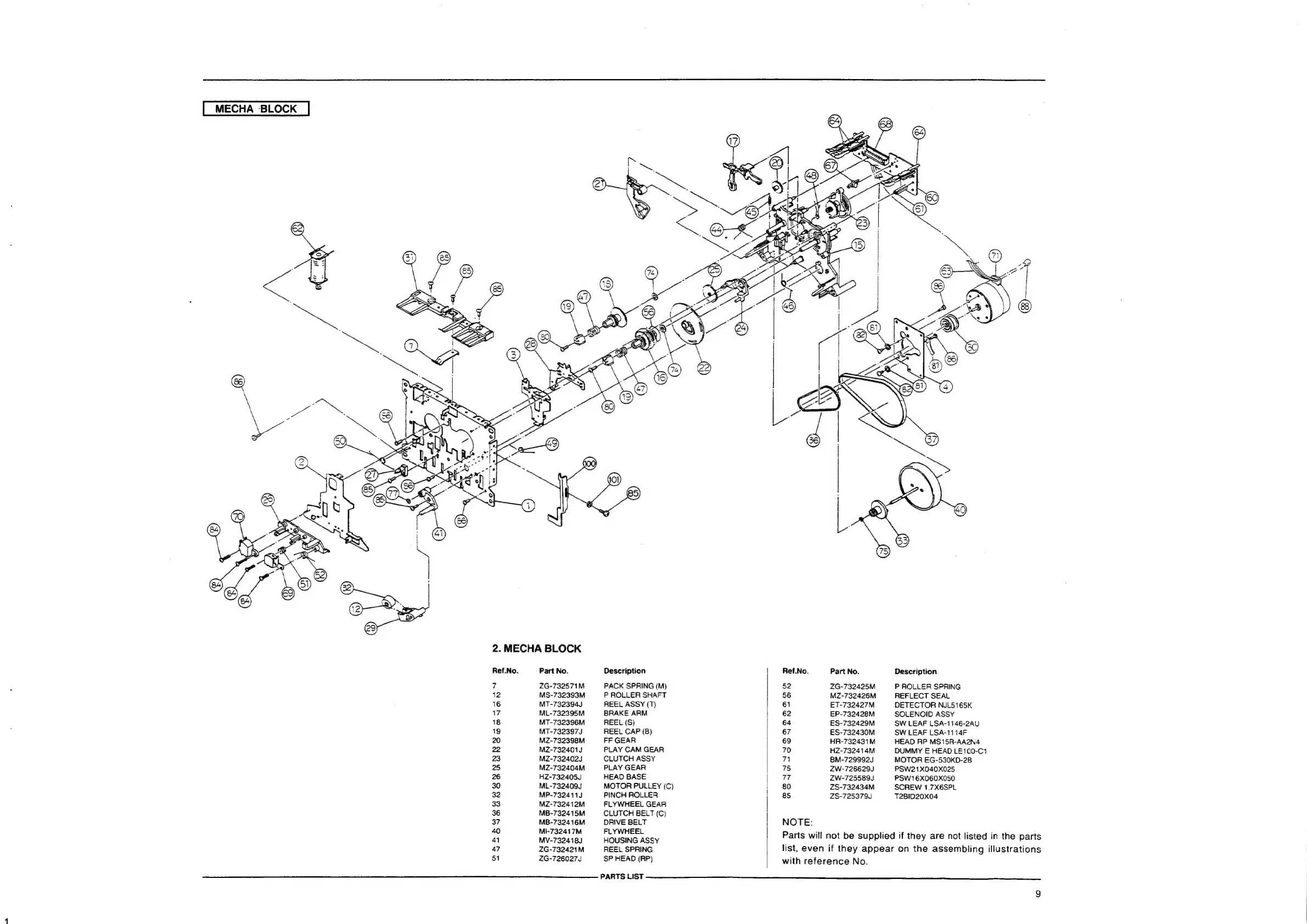

MECHA ‘BLOCK
2. MECHA BLOCK
Ref.No. Part No.
7 2G-732571M
12 MS-732393M
16 MT-732394J
17 ML-732395M
18 MT-732396M
19 MT-732397J
20 MZ-732398M
22 MZ-732401J
23 MZ-7324025
25 MZ-732404M
26 HZ-732405J
30 ML-732409J
32 MP-732411J
33 MZ-732412M
36 MB-732415M
37 MB-732416M
40 MI-732417M
41 MV-732418J
47 2G-732421M
51 ZG-726027J
Description
PACK SPRING (M)
P ROLLER SHAFT
REEL ASSY (7)
BRAKE ARM
REEL (S)
REEL CAP (8)
FF GEAR
PLAY CAM GEAR
CLUTCH ASSY
PLAY GEAR
HEAD BASE
MOTOR PULLEY (C)
PINCH ROLLER
FLYWHEEL GEAR
CLUTCH BELT (C}
DRIVE BELT
FLYWHEEL
HOUSING ASSY
REEL SPRING
SP HEAD (RP)
Ref.No. Part No.
52 2G-732425M
56 MZ-732426M
61 ET-732427M
62 EP-732428M
64 ES-732429M
67 ES-732430M
69 HR-732431M
70 HZ-732414M
71 BM-729992
75 ZW-726629J
77 ZW-7255895
80 Z2S-732434M
85 ZS-725379J
NOTE:
Description
P ROLLER SPRING
REFLECT SEAL
DETECTOR NJL5165K
SOLENOID ASSY
SW LEAF LSA-1146-2AU
SW LEAF LSA-1114F
HEAD RP MS15R-AA2N4
DUMMY E HEAD LE100-C1
MOTOR EG-530KD-2B
PSW21X040X025
PSW16X060X050
SCREW 1.7X6SPL
T2BID20X04
Parts will not be supplied if they are not listed in the parts
list, even if they appear on the assembling illustrations
with reference No.
PRT
S
CEST
a
9
