Akai AX80 Operator's Manual

EG DEPTH
EG SELECT
VCF VCA
| thatare not possible with only a
CONTENTS

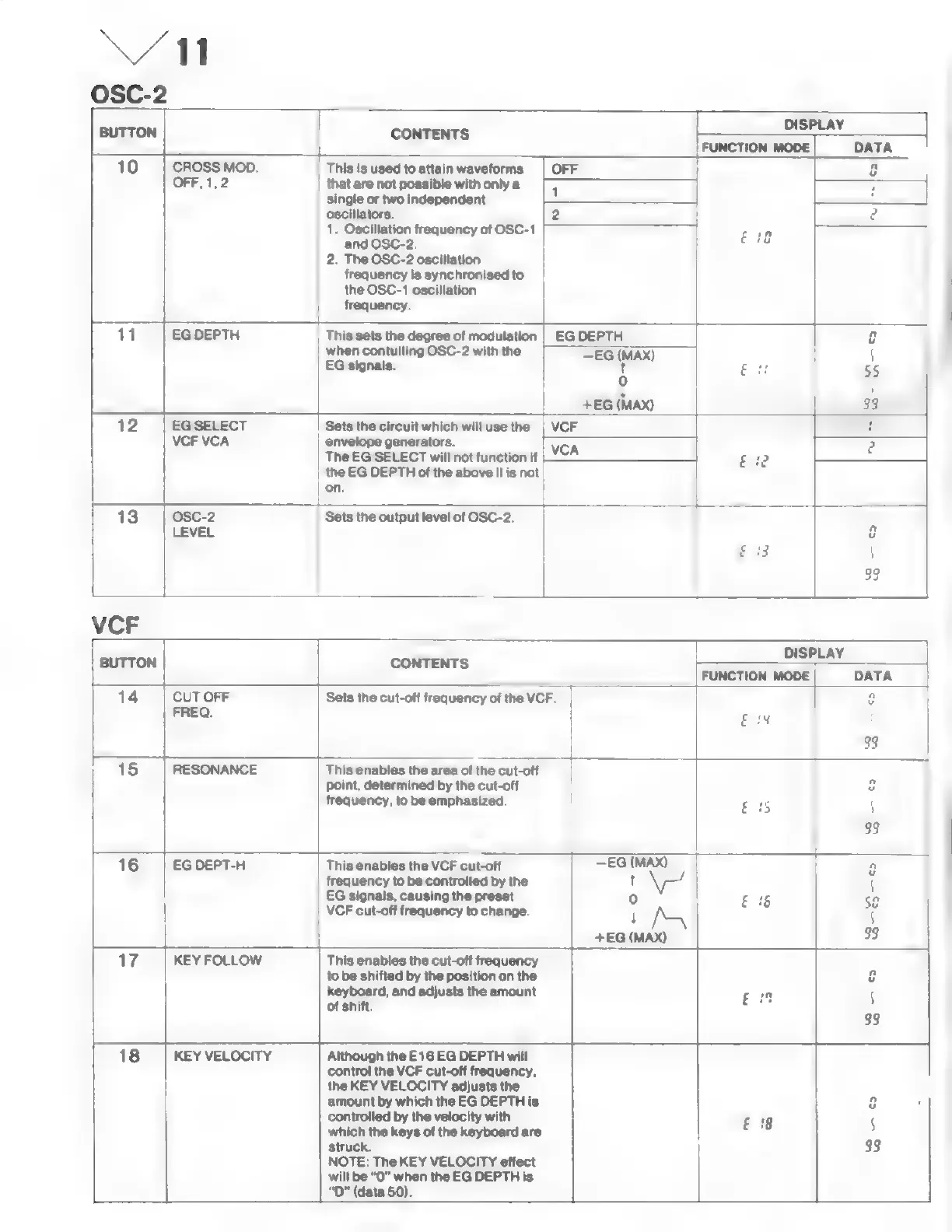

This is used to attain waveforms
single or two independent
oscillators.
1. Oscillation frequency of OSC-1
and OSC-2.
2. The OSC-2 oscillation
frequency is synchronised to
the OSC-1 oscillation
frequency.
This sets the degree of modulation
when contulling OSC-2 with the
EG signals.
Sets the circuit which will use the
envelope generators.
The EG SELECT will not function if
the EG DEPTH of the above Il is not
on.
Sets the output level of OSC-2.
KEY FOLLOW
Sets the cut-off frequency of the VCF.
FUNCTION MODE
DISPLAY
DATA
This enables the area of the cut-off
point, determined by the cut-off
frequency, to be emphasized.
This enables the VCF cut-off
frequency to be controlled by the
EG signals, causing the preset
VCF cut-off frequency to change.
This enables the cut-off frequency
to be shifted by the position on the
keyboard, and adjusts the amount
of shift.
Although the E16 EG DEPTH will
control the VCF cut-off frequency,
the KEY VELOCITY adjusts the
amount by which the EG DEPTH is
controlled by the velocity with
which the keys of the keyboard are
Struck.
NOTE: The KEY VELOCITY effect
will be "0" when the EG DEPTH is
“О” (data 50).
