PLAYBACK (CR-80D-SS)
For Playback with the Model CR-80D-SS, a 4-channel (or two
2-channel) external amplifier and two pairs of speakers are
required.
For 4-channel Surround Stereo operation, connect the Line
Outputs of Model CR-80D-SS to the Tape Inputs of external
amplifier (right and left front and rear) and connect 4 speakers

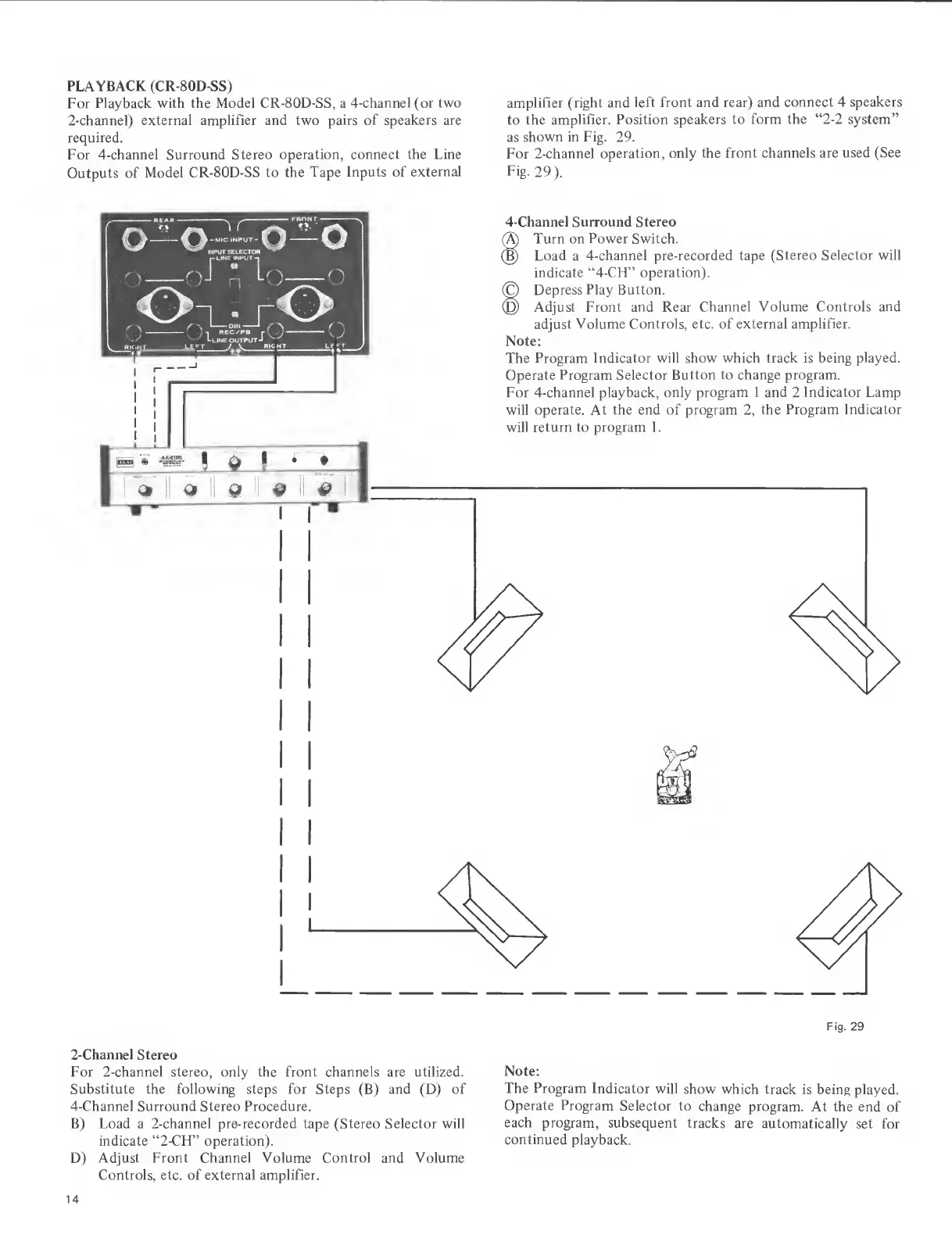

to the amplifier. Position speakers to form the “2-2 system”
as shown in Fig. 29.
For 2-channel operation, only the front channels are used (See
Fig. 29).
4-Channel Surround Stereo
f T urn on Power Switch.
Load a 4-channel pre-recorded tape (Stereo Selector will
indicate “4-CF1” operation).
8 Depress Play Button.
Adjust Front and Rear Channel Volume Controls and
adjust Volume Controls, etc. of external amplifier.
Note:
The Program Indicator will show which track is being played.
Operate Program Selector Button to change program.
For 4-channel playback, only program 1 and 2 Indicator Lamp
will operate. At the end of program 2, the Program Indicator
will return to program 1.
2-Channel Stereo
For 2-channel stereo, only the front channels are utilized.
Substitute the following steps for Steps (B) and (D) of
4-Channel Surround Stereo Procedure.
B) Load a 2-channel pre-recorded tape (Stereo Selector will
indicate “2-CH” operation).
D) Adjust Front Channel Volume Control and Volume
Controls, etc. of external amplifier.
Note:
The Program Indicator will show which track is being played.
Operate Program Selector to change program. At the end of
each program, subsequent tracks are automatically set for
continued playback.
14
