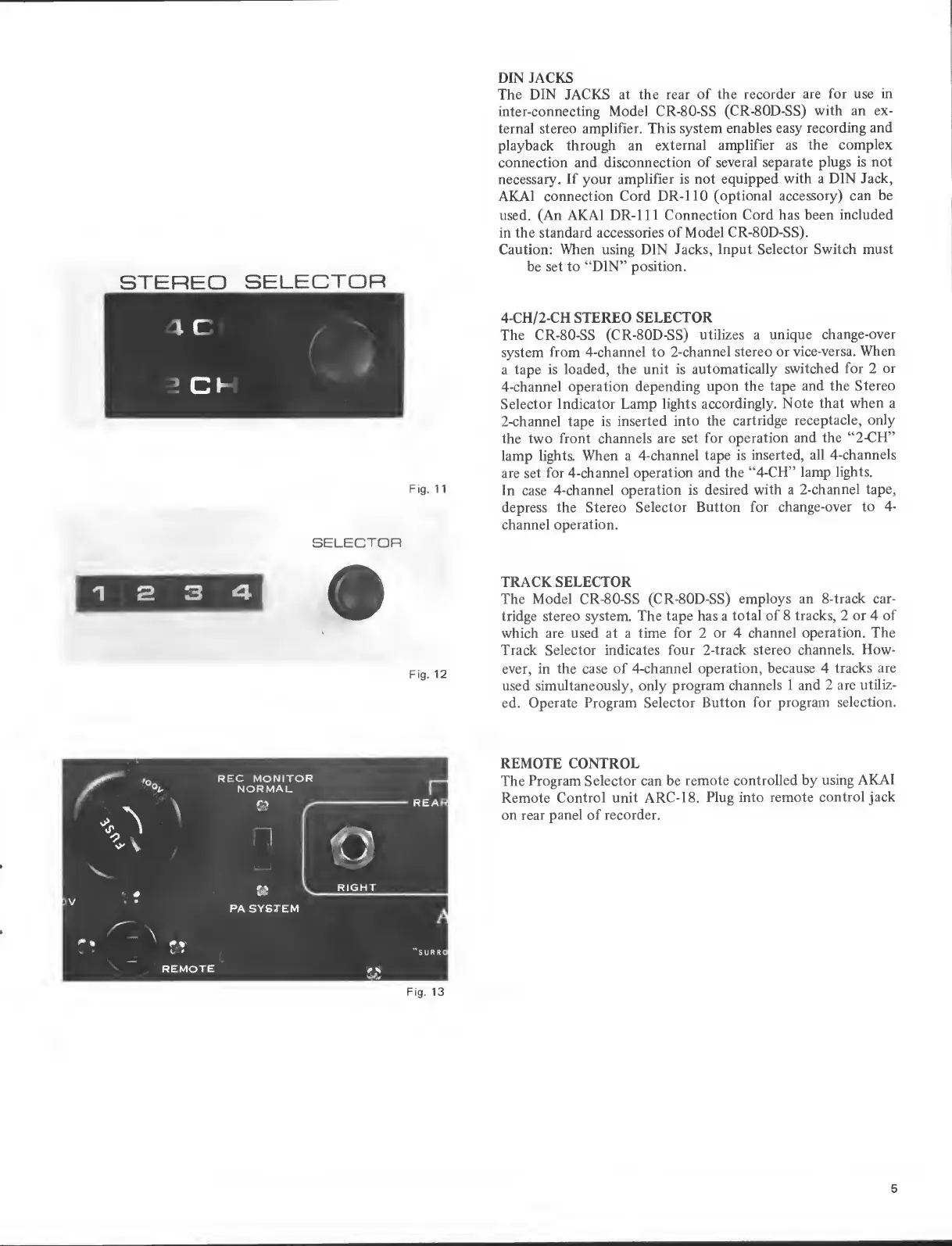

STEREO
SELECTOR
%
C
(
\
n
T
Fig.
11
2
*
^1
d
Wmmt
SELECTOR
Fig.
12
DIN
JACKS
The
DIN
JACKS
at
the
rear
of
the
recorder
are
for
use
in
inter-connecting
Model
CR-80-SS
(CR-80D-SS)
with
an
ex¬
ternal
stereo
amplifier.
This
system
enables
easy
recording
and
playback
through
an
external
amplifier
as
the
complex
connection
and
disconnection
of
several
separate
plugs
is
not
necessary.
If
your
amplifier
is
not
equipped
with
a
DIN
Jack,
AKAI
connection
Cord
DR-110
(optional
accessory)
can
be
used.
(An
AKAI
DR-111
Connection
Cord
has
been
included
in
the
standard
accessories
of
Model
CR-80D-SS).
Caution:
When
using
DIN
Jacks,
Input
Selector
Switch
must
be
set
to
“DIN”
position.
4-CH/2-CH
STEREO
SELECTOR
The
CR-80-SS
(CR-80D-SS)
utilizes
a
unique
change-over
system
from
4-channel
to
2-channel
stereo
or
vice-versa.
When
a
tape
is
loaded,
the
unit
is
automatically
switched
for
2
or
4-channel
operation
depending
upon
the
tape
and
the
Stereo
Selector
Indicator
Lamp
lights
accordingly.
Note
that
when
a
2-channel
tape
is
inserted
into
the
cartridge
receptacle,
only
the
two
front
channels
are
set
for
operation
and
the
“2-CH”
lamp
lights.
When
a
4-channel
tape
is
inserted,
all
4-channels
are
set
for
4-channel
operation
and
the
“4-CH”
lamp
lights.
In
case
4-channel
operation
is
desired
with
a
2-channel
tape,
depress
the
Stereo
Selector
Button
for
change-over
to
4-
channel
operation.
TRACK
SELECTOR
The
Model
CR-80-SS
(CR-80D-SS)
employs
an
8-track
car¬
tridge
stereo
system.
The
tape
has
a
total
of
8
tracks,
2
or
4
of
which
are
used
at
a
time
for
2
or
4
channel
operation.
The
Track
Selector
indicates
four
2-track
stereo
channels.
How¬
ever,
in
the
case
of
4-channel
operation,
because
4
tracks
are
used
simultaneously,
only
program
channels
1
and
2
are
utiliz¬
ed.
Operate
Program
Selector
Button
for
program
selection.
REMOTE
CONTROL
The
Program
Selector
can
be
remote
controlled
by
using
AKAI
Remote
Control
unit
ARC-18.
Plug
into
remote
control
jack
on
rear
panel
of
recorder.
