Akai CR-80-SS User Manual

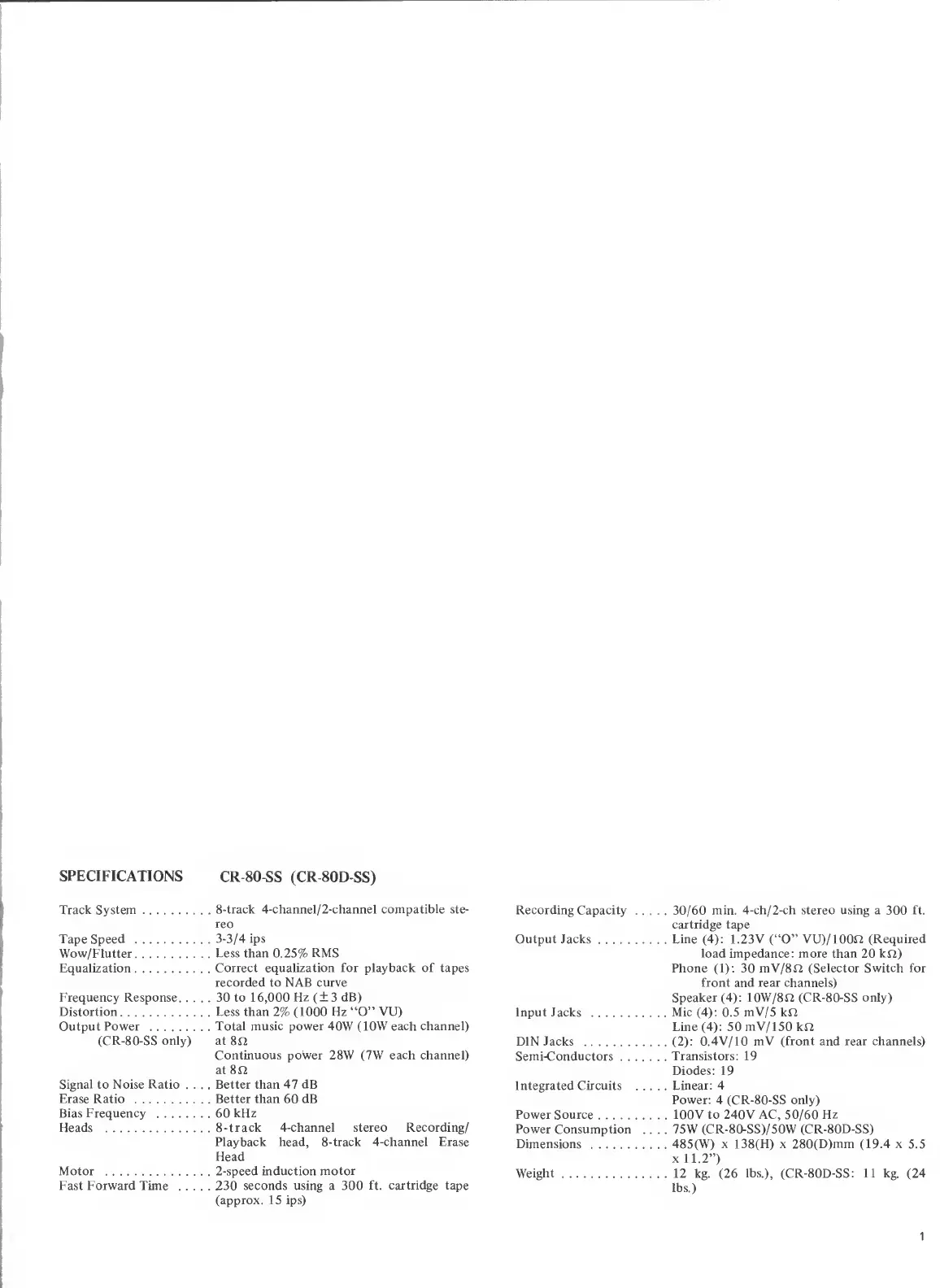

SPECIFICATIONS CR-80-SS (CR-80D-SS)
Track System.8-track 4-channel/2-channel compatible ste¬
reo
Tape Speed .3-3/4 ips
Wow/Flutter.Less than 0.25% RMS
Equalization.Correct equalization for playback of tapes
recorded to NAB curve
Frequency Response.30 to 16,000 Hz (± 3 dB)
Distortion.Less than 2% (1000 Hz “O” VU)
Output Power .Total music power 40W (10W each channel)
(CR-80-SS only) at 8fl
Continuous power 28W (7W each channel)
at 8fl
Signal to Noise Ratio .... Better than 47 dB
Erase Ratio .Better than 60 dB
Bias Frequency .60 kHz
Heads .8-track 4-channel stereo Recording/
Playback head, 8-track 4-channel Erase
Head
Motor .2-speed induction motor
Fast Forward Time . 230 seconds using a 300 ft. cartridge tape
(approx. 15 ips)
Recording Capacity. 30/60 min. 4-ch/2-ch stereo using a 300 ft.
cartridge tape
Output Jacks.Line (4): 1.23V (“O” VU)/100fl (Required
load impedance: more than 20 kil)
Phone (1): 30 mV/8n (Selector Switch for
front and rear channels)
Speaker (4): 10W/8O (CR-80-SS only)
Input Jacks .Mic (4): 0.5 mV/5 kfl
Line (4): 50 mV/150 kn
DIN Jacks .(2): 0.4V/10 mV (front and rear channels)
Semi-Conductors.Transistors: 19
Diodes: 19
Integrated Circuits .Linear: 4
Power: 4 (CR-80-SS only)
Power Source.100V to 240V AC, 50/60 Hz
Power Consumption .... 75W (CR-80-SS)/50W (CR-80D-SS)
Dimensions . 485(W) x 138(H) x 280(D)mm (19.4 x 5.5
x 11.2”)
Weight.12 kg. (26 lbs.), (CR-80D-SS: 11 kg. (24
lbs.)
1
