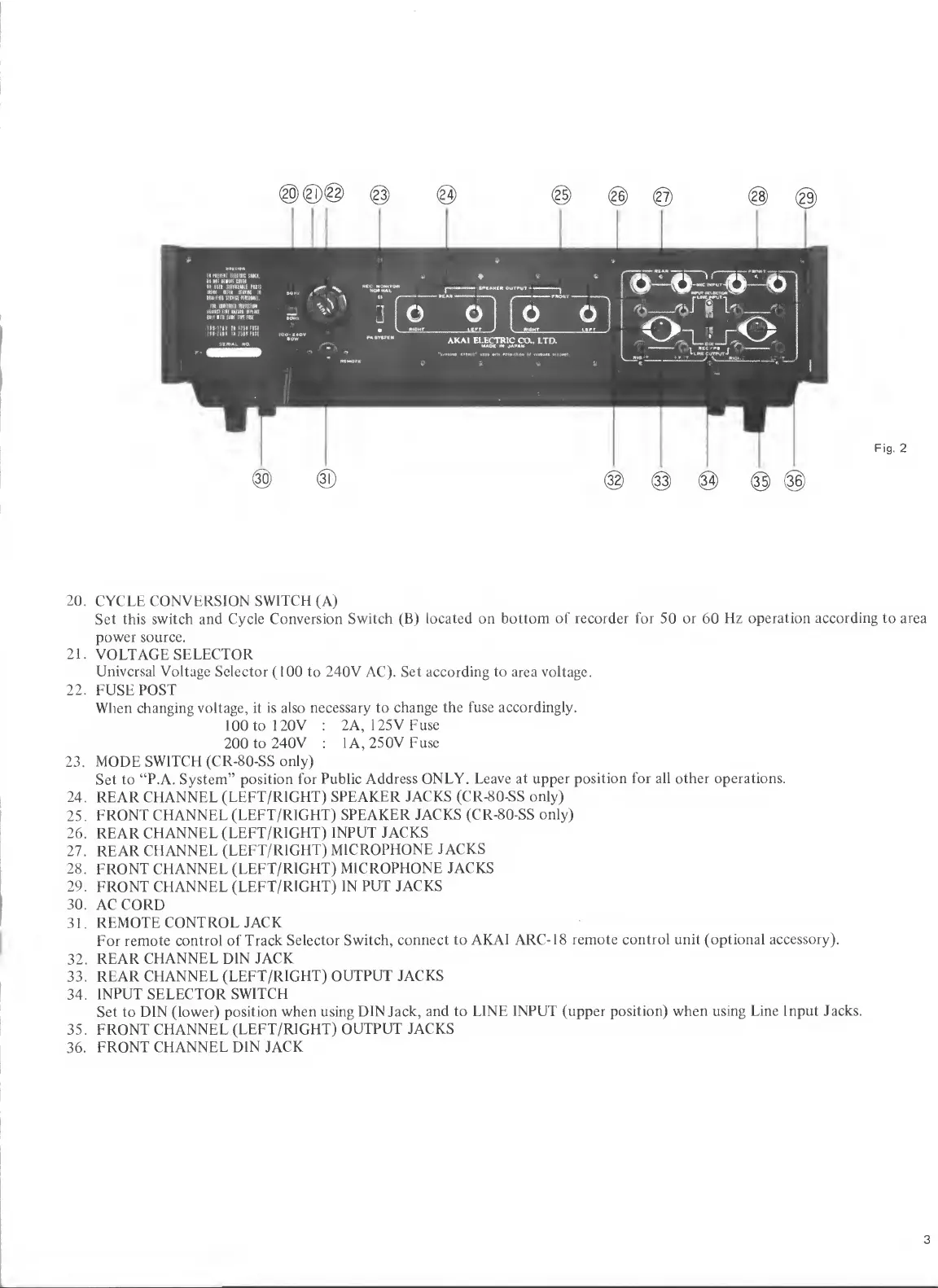

Fig.
2
20.
CYCLE
CONVERSION
SWITCH
(A)
Set
this
switch
and
Cycle
Conversion
Switch
(B)
located
on
bottom
of
recorder
for
50
or
60
Hz
operation
according
to
area
power
source.
21.
VOLTAGE
SELECTOR
Universal
Voltage
Selector
(100
to
240V
AC).
Set
according
to
area
voltage.
22.
FUSE
POST
When
changing
voltage,
it
is
also
necessary
to
change
the
fuse
accordingly.
100
to
120V
:
2A,
125V
Fuse
200
to
240V
:
1
A,
250V
Fuse
23.
MODE
SWITCH
(CR-80-SS
only)
Set
to
“P.A.
System”
position
for
Public
Address
ONLY.
Leave
at
upper
position
for
all
other
operations.
24.
REAR
CHANNEL
(LEFT/RIGHT)
SPEAKER
JACKS
(CR-80-SS
only)
25.
FRONT
CHANNEL
(LEFT/RIGHT)
SPEAKER
JACKS
(CR-80-SS
only)
26.
REAR
CHANNEL
(LEFT/RIGHT)
INPUT
JACKS
27.
REAR
CHANNEL
(LEFT/RIGHT)
MICROPHONE
JACKS
28.
FRONT
CHANNEL
(LEFT/RIGHT)
MICROPHONE
JACKS
29.
FRONT
CHANNEL
(LEFT/RIGHT)
IN
PUT
JACKS
30.
ACCORD
31.
REMOTE
CONTROL
JACK
For
remote
control
of
Track
Selector
Switch,
connect
to
AKAI
ARC-18
remote
control
unit
(optional
accessory).
32.
REAR
CHANNEL
DIN
JACK
33.
REAR
CHANNEL
(LEFT/RIGHT)
OUTPUT
JACKS
34.
INPUT
SELECTOR
SWITCH
Set
to
DIN
(lower)
position
when
using
DIN
Jack,
and
to
LINE
INPUT
(upper
position)
when
using
Line
Input
Jacks.
35.
FRONT
CHANNEL
(LEFT/RIGHT)
OUTPUT
JACKS
36.
FRONT
CHANNEL
DIN
JACK
3
