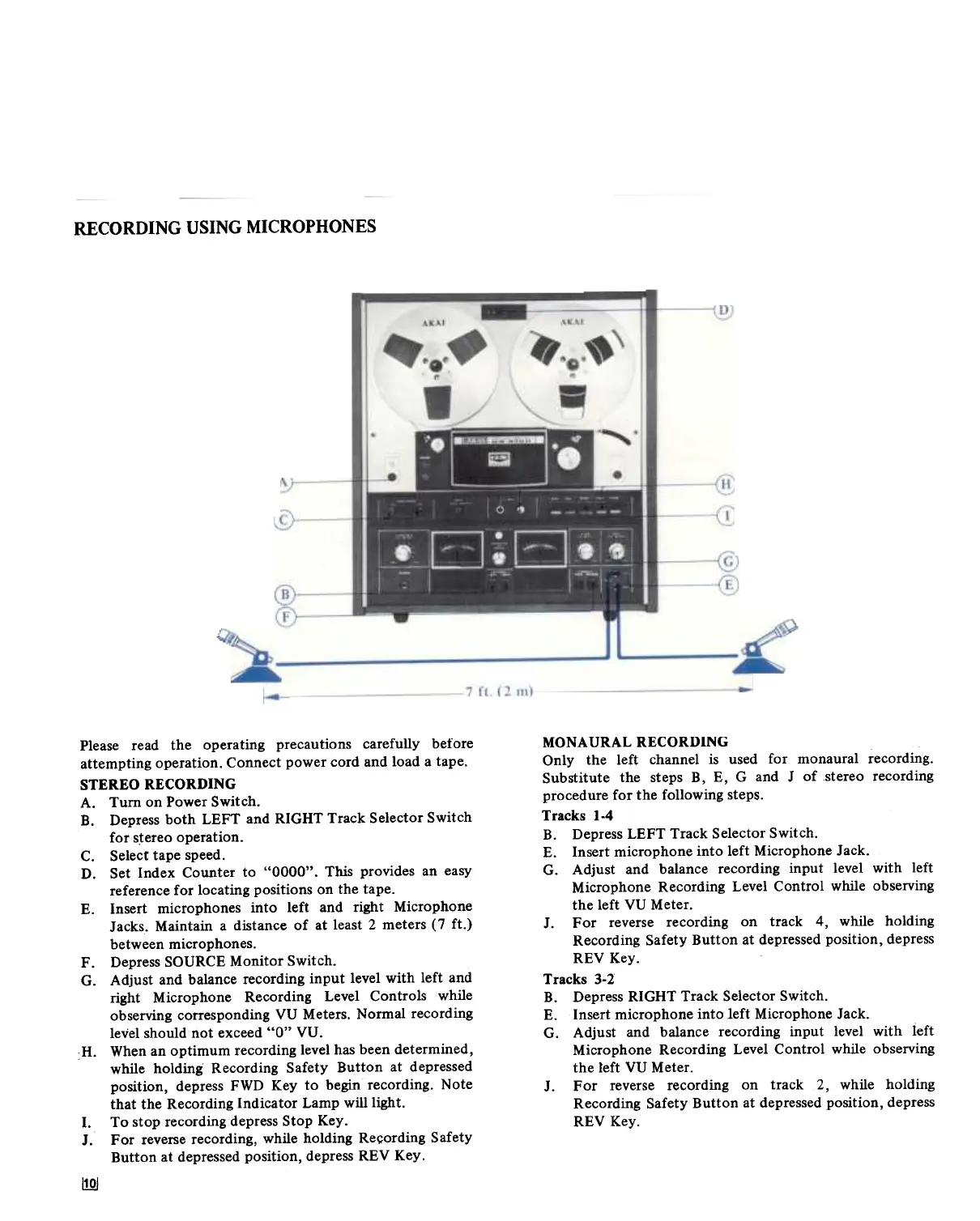

RECORDING USING MICROPHONES
MONAURAL RECORDING
Only the left channel is used for monaural recording.
Substitute the steps B, E, G and J of stereo recording
procedure for the following step~.
Tracks 1-4
B. Depress LEFT Track Selector Switch.
E. Insert microphone into left Microphone Jack.
G. Adjust and balance recording input level with left
Microphone Recording Level Control while observing
the left VU Meter.
J. For reverse recording on track 4, while holding
Recording Safety Button at depressed position, depress
REV Key.
Tracks 3-2
B. Depress RIGHT Track Selector Switch.
E. Insert microphone into left Microphone Jack.
G. Adjust and balance recording input level with left
Microphone Recording Level Control while observing
the left VU Meter.
J. For reverse recording on track 2, while holding
Recording Safety Button at depressed position, depress
REV Key.
Please read the operating precautions carefully before
attempting operation. Connect power cord and load a tape.
STEREO RECORDING
A. Turn on Power Switch.
B. Depress both LEFT and RIGHT Track Selector Switch
for stereo operation.
C. Select tape speed.
D. Set Index Counter to "0000". This provides an easy
reference for locating positions on the tape.
E. Insert microphones into left and right Microphone
Jacks. Maintain a distance of at least 2 meters (7 ft.)
between microphones.
F. Depress SOURCE Monitor Switch.
G. Adjust and balance recording input level with left and
right Microphone Recording Level Controls while
observing corresponding VU Meters. Normal recording
level should not exceed "0" VU.
H. When an optimum recording level has been determined,
while holding Recording Safety Button at depressed
position, depress FWD Key to begin recording. Note
that the Recording Indicator Lamp will light.
I. To stop recording depress Stop Key.
J. For reverse recording, while holding Recording Safety
Button at depressed position, depress REV Key.
I1Q/
