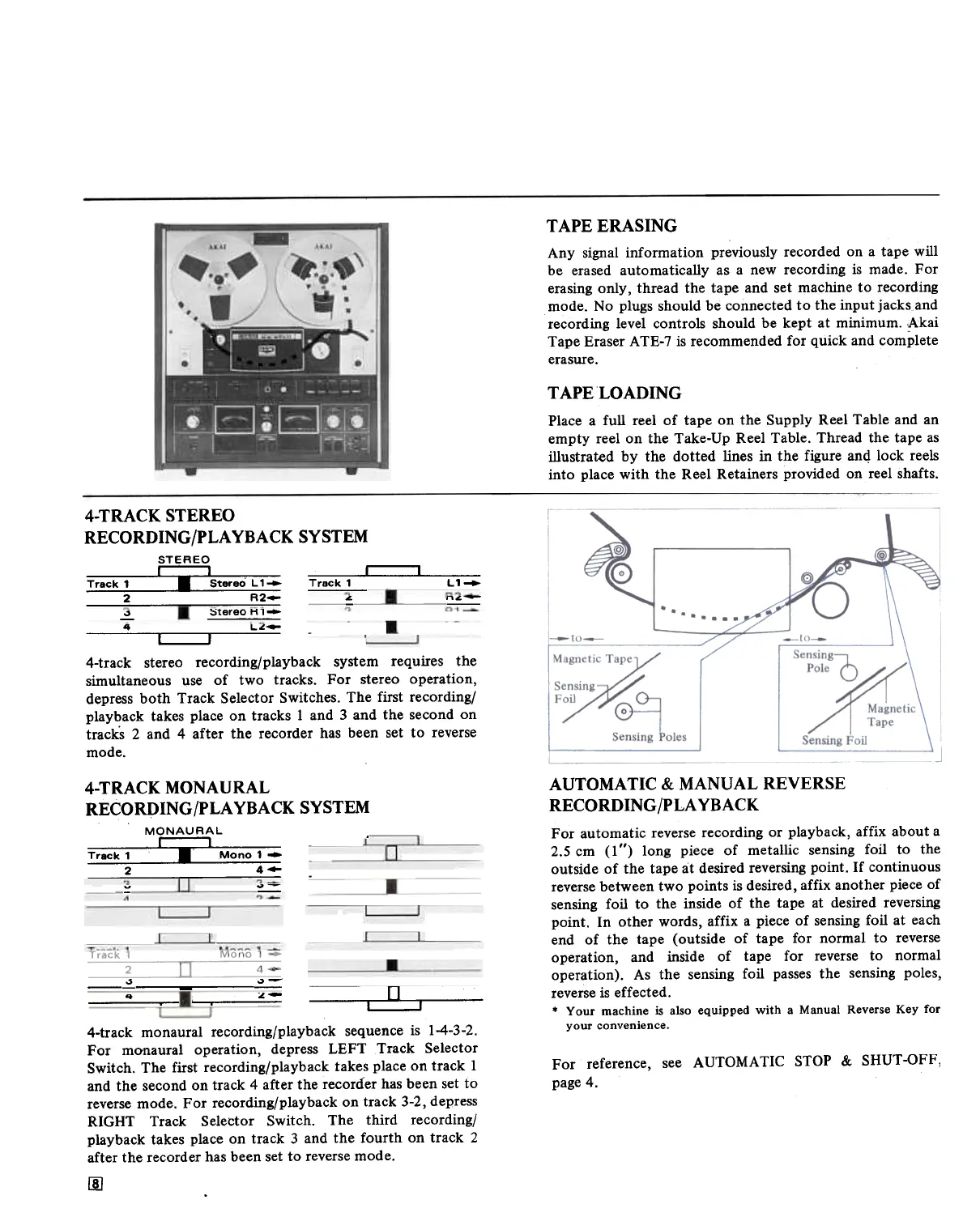

TAPE ERASING
Any signal information previously recorded on a tape will
be erased automatically as a new recording is made. For
erasing only, thread the tape and set machine to recording
mode. No plugs should be connected to the input jacks and
recording level controls should be kept at minimum. ,Akai
Tape Eraser ATE-7 is recommended for quick and complete
erasure.
TAPE LOADING
Place a full reel of tape on the Supply Reel Table and an
empty reel on the Take-Up Reel Table. Thread the tape as
illustrated by the dotted lines in the figure anq lock reels
into place with the Reel Retainers provided on reel shafts.
4- TRACK STEREO
RECORDING/PLAYBACK SYSTEM
STEREO
I = I I I
Track 1 .Stereo L 1- Track 1 L 1 -
2 R2-
-
~ n~~
Stereo Al-
;j
4 LOl-
I I
4-track stereo recording/playback system requires the
simultaneous use of two tracks. For stereo operation,
depress both Track Selector Switches. The first recording/
playback takes place on tracks I and 3 and the second on
tracks 2 and 4 after the recorder has been set to reverse
mode.
4-TRACK MONAURAL
RECORDING/PLAYBACK SYSTEM
MONAURAL
Track 1r=::.: ::JMono 1 -.
2 4-
..-
~
;s
,,-
-4 -:l- r I
..I --I
4-track monaural recording/playback sequence is 1-4-3-2.
For monaural operation, depress LEFT Track Selector
Switch. The first recording/playback takes place on track 1
and the second on track 4 after the recorder has been set to
reverse mode. For recording/playback on track 3-2, depress
RIGHT Track Selector Switch. The third recording/
playback takes place on track 3 and the fourth on track 2
after the recorder has been set to reverse mode.
[§]
AUTOMATIC & MANUAL REVERSE
RECORDING/PLA YBACK
For automatic reverse recording or playback, affix about a
2.5 cm (l'j long piece of metallic sensing foil to the
outside of the tape at desired reversing point. If continuous
reverse between two points is desired, affix another piece of
sensing foil to the inside of the tape at desired reversing
point. In other words, affix a piece of sensing foil at each
end of the tape (outside of tape for normal to reverse
operation, and inside of tape for reverse to normal
operation). As the sensing foil passes the sensing poles,
reverse is effected.
* Your machine is also equipped with a Manual Reverse Key for
your convenience.
For reference, see AUTOMATIC STOP & SHUT-QFF,
page 4.
