Akai GX-630D Operator's Manual

Selector Plug
SOHz <4 > GOHz

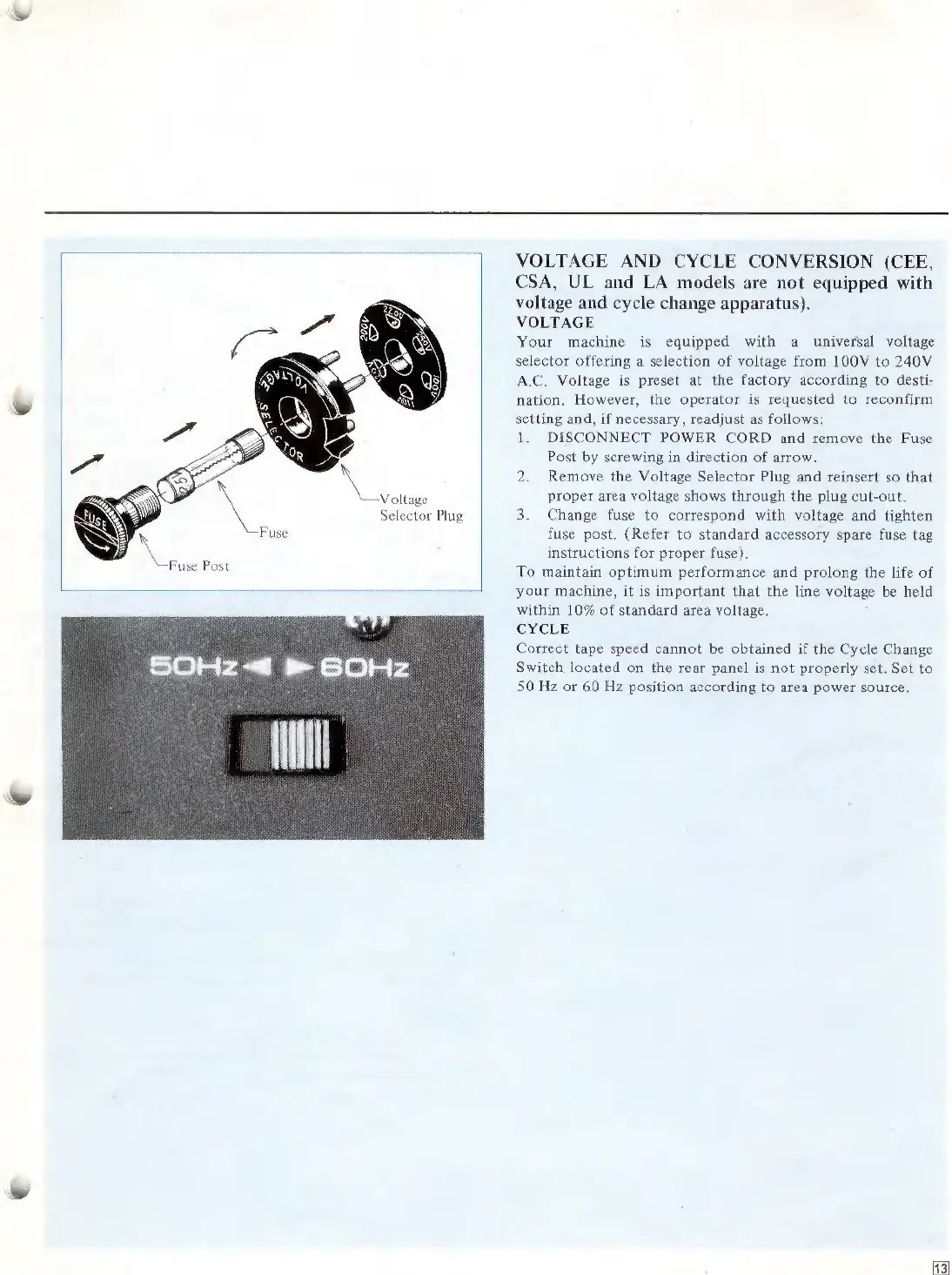

VOLTAGE AND CYCLE CONVERSION (CEE,
CSA, UL and LA models are not equipped with
voltage and cycle change apparatus).
VOLTAGE
Your machine is equipped with a universal voltage
selector offering a selection of voltage from 100V to 240V
A.C. Voltage is preset at the factory according to desti-
nation. However, the operator is requested to reconfirm
setting and, if necessary, readjust as follows:
1. DISCONNECT POWER CORD and remove the Fuse
Post by screwing in direction of arrow.
Remove the Voltage Selector Plug and reinsert so that
proper area voltage shows through the plug cut-out.
3. Change fuse to correspond with voltage and tighten
fuse post. (Refer to standard accessory spare fuse tag
instructions for proper fuse).
To maintain optimum performance and prolong the life of
your machine, it is important that the line voltage be held
within 10% of standard area voltage.
CYCLE
Correct tape speed cannot be obtained if the Cycle Change
Switch located on the rear panel is not properly set. Set to
50 Hz or 60 Hz position according to area power source.
mS

Akai GX-630D Specifications

General

Track System	4-track, 2-channel, stereo/monaural system
Reel Size	up to 10.5 inch reel
Wow and Flutter	0.06% (7 1⁄2 ips)
Signal to Noise Ratio	58dB
Output	0.775V
Type	Reel-to-reel tape deck
Heads	3 (erase, record, playback)
Motor	2 x reel, 1 x capstan
Tape Speeds	3 3⁄4 ips, 7 1⁄2 ips
