Akai GX-630D Operator's Manual

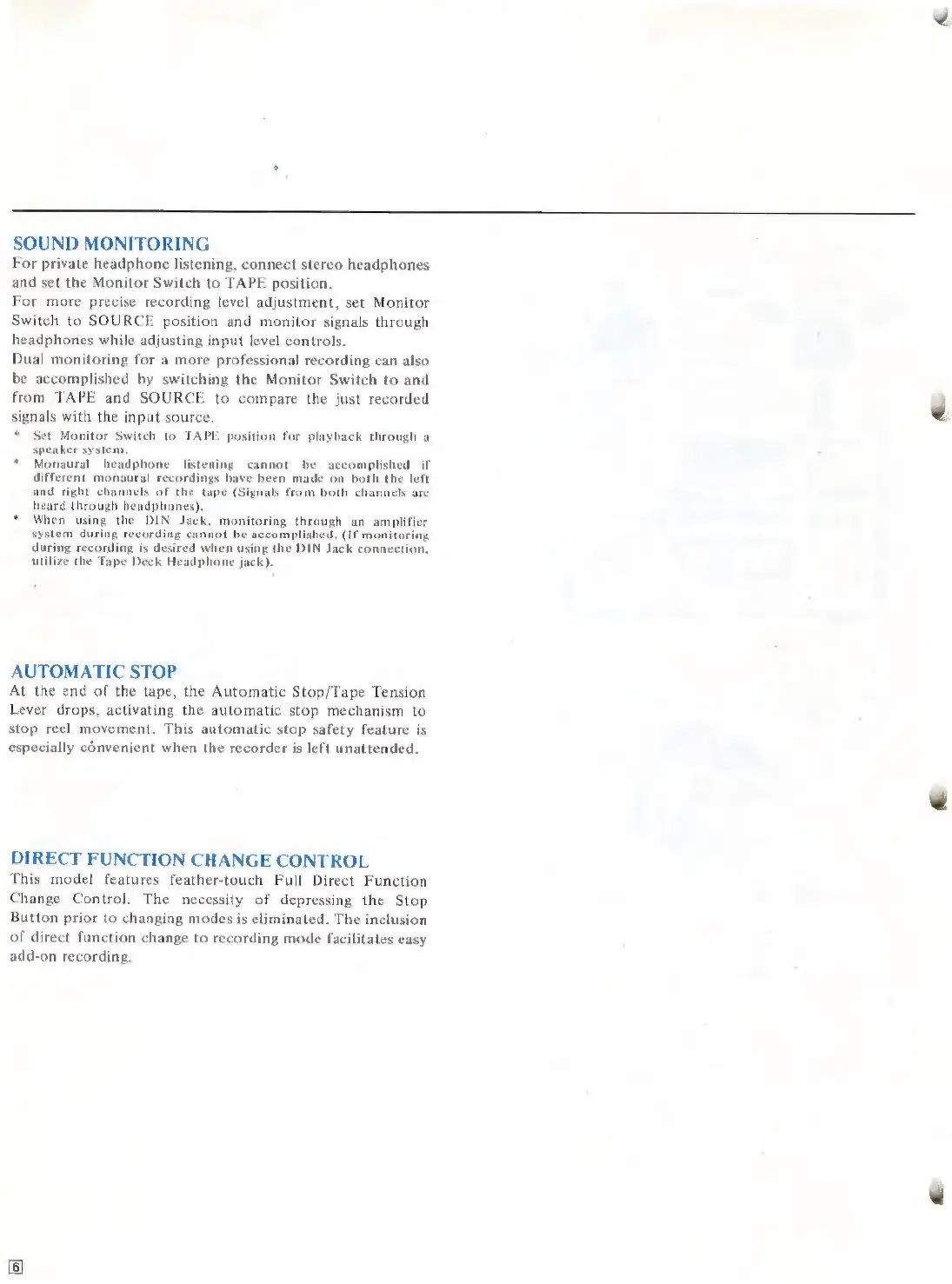

SOUND MONITORING
For private headphone listening, connect stereo headphones
and set the Monitor Switch to TAPE position.
For more precise recording level adjustment, set Monitor
Switch to SOURCE position and monitor signals through
headphones while adjusting input level controls
Dual monitoring for a more professional recording can also
be accomplished by switching the Monitor Switch to and
from TAPE and SOURCE to compare the just recorded
signals with the input source.
* Set Monitor Switch to TAPE po:
speaker system.
* Monaural headphone listening cannot be accomplished if
different mon; recordings have been made on both the left
and right channels of the tape (Signals from both channels a
heard through headphones),
When using the DIN Jack, monitoring through an amplifier
system during recording cannot be accomplished. (If monitoring
during recording is desired w n using the DIN Jack connection,
utilize the Tape Deck Headphone jack).
on for plavback through a
AUTOMATIC STOP
At the end of the tape, the Automatic Stop/Tape Tension
Lever drops, activating the automatic stop mechanism to
stop reel movement. This automatic stop safety feature is
especially cónvenient when the recorder is left unattended.
DIRECT FUNCTION CHANGE CONTROL
This model features feather-touch Full Direct Function
Change Control. The necessity of depressing the Stop
Button prior to changing modes is eliminated. The inclusion
of direct function change to recording mode facilitat
add-on recording.
s easy

Akai GX-630D Specifications

General

Track System	4-track, 2-channel, stereo/monaural system
Reel Size	up to 10.5 inch reel
Wow and Flutter	0.06% (7 1⁄2 ips)
Signal to Noise Ratio	58dB
Output	0.775V
Type	Reel-to-reel tape deck
Heads	3 (erase, record, playback)
Motor	2 x reel, 1 x capstan
Tape Speeds	3 3⁄4 ips, 7 1⁄2 ips
