Akai GX-630D Operator's Manual

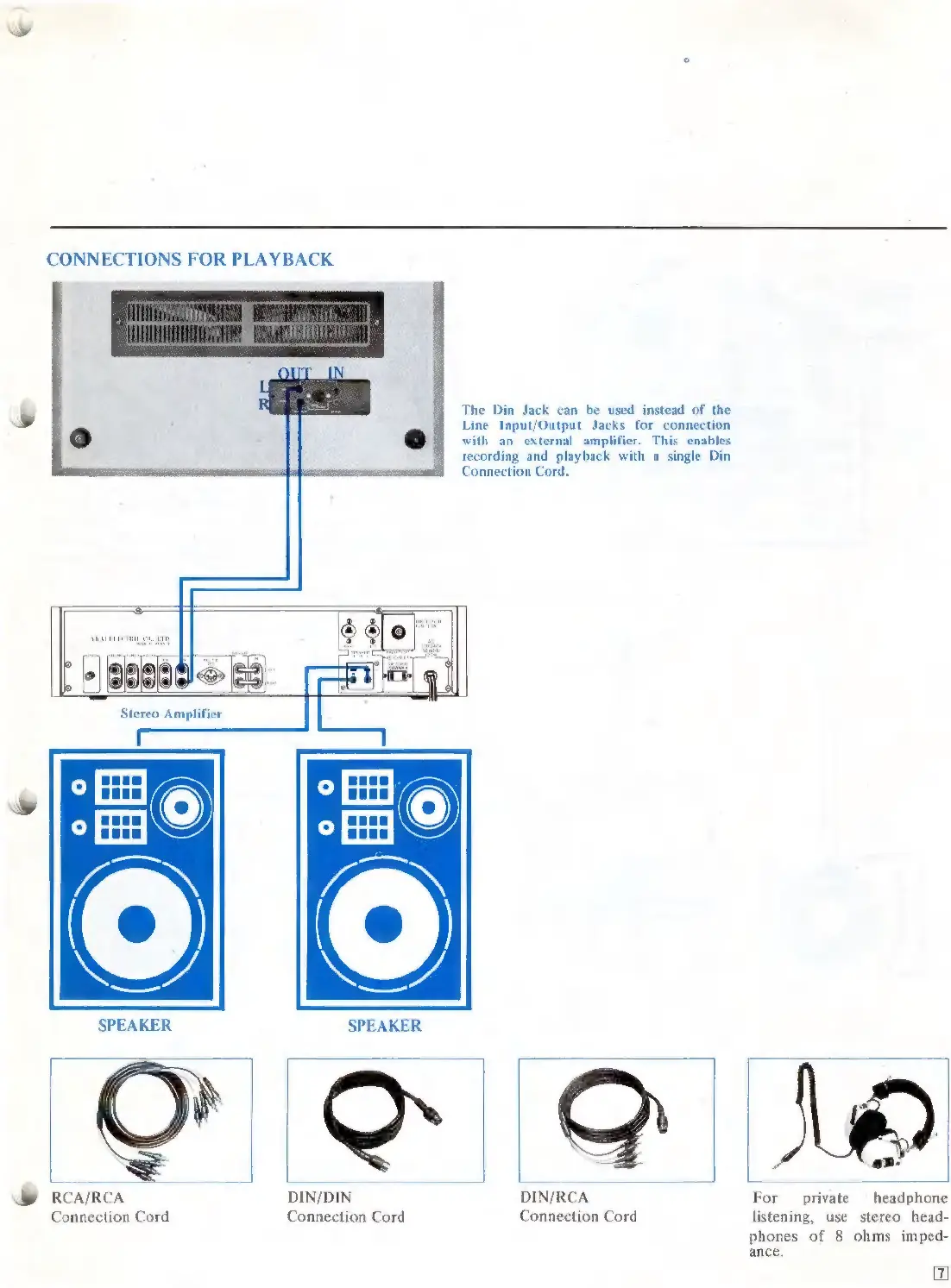

CONNECTIONS FOR PLAYBACK
The Din Jack can be used instead of the
Line Input/Output Jacks for connection
with an external amplifier. This enables
recording and playback with a single Din
Connection Cord.
SPEAKER SPEAKER
=
=
3
sn-
WW RCA/RCA DIN/DIN DIN/RCA For private ^ headphone
Connection Cord Connection Cord Connection Cord listening, use stereo head-
phones of 8 ohms imped-
ance.
T

Akai GX-630D Specifications

General

Track System	4-track, 2-channel, stereo/monaural system
Reel Size	up to 10.5 inch reel
Wow and Flutter	0.06% (7 1⁄2 ips)
Signal to Noise Ratio	58dB
Output	0.775V
Type	Reel-to-reel tape deck
Heads	3 (erase, record, playback)
Motor	2 x reel, 1 x capstan
Tape Speeds	3 3⁄4 ips, 7 1⁄2 ips
